Repair information 4-185

5062

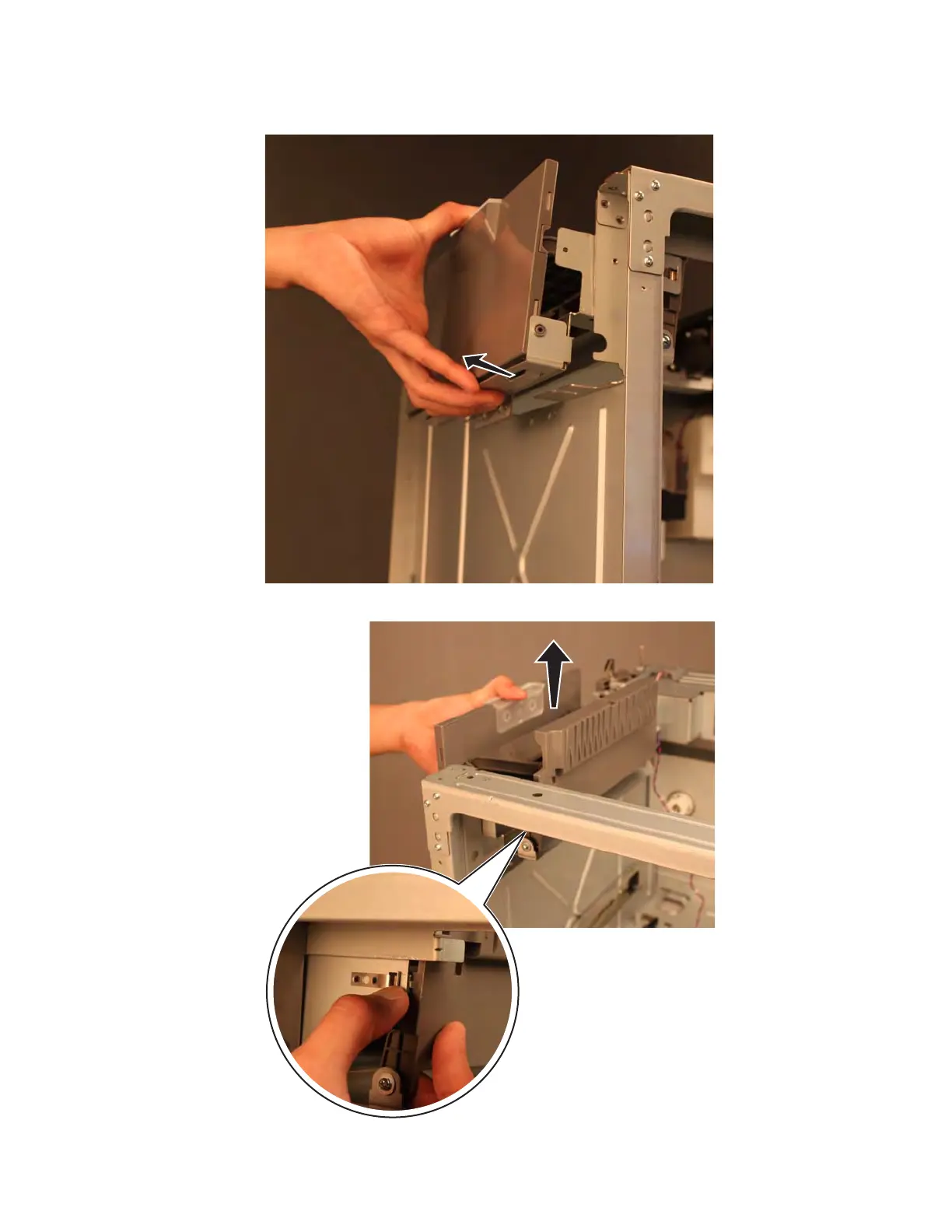

14. Pull out the jam clearance cover to clear the slots from the frame.

15. Press the metal tab to release the jam clearance cover, and pull up to remove the jam clearance cover.
