Lexmark C792e 5062-210

To Next Page

To Previous Page

4-192 Service Manual

5062

4. Remove the two screws (A) securing the left anti-tip latch assembly to the drawer.

Note: Hold the left anti-tip latch assembly to prevent it from falling off after removing the screws.

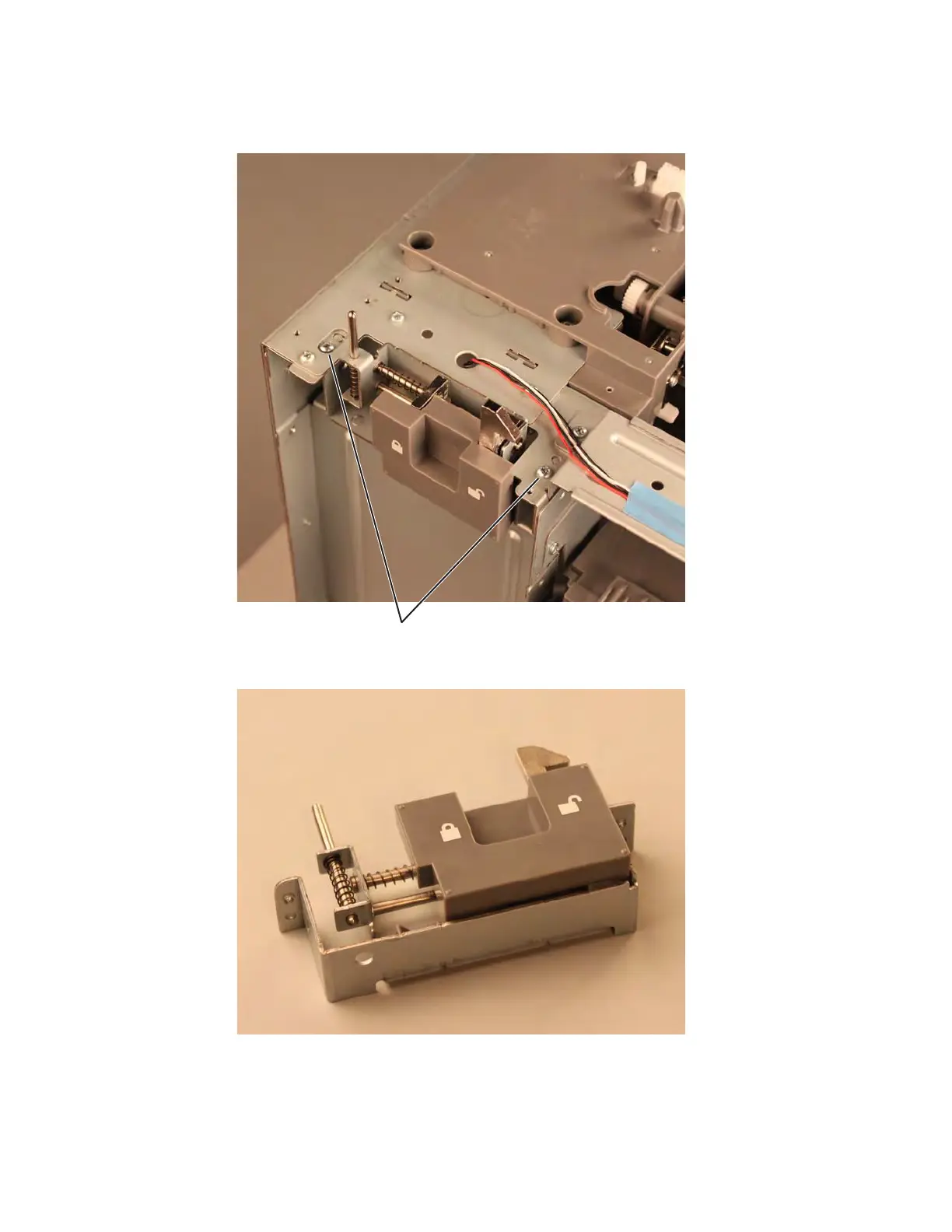

This is the photo of the left anti-tip latch assembly.

A (88A0231)
