Repair information 4-215

5062

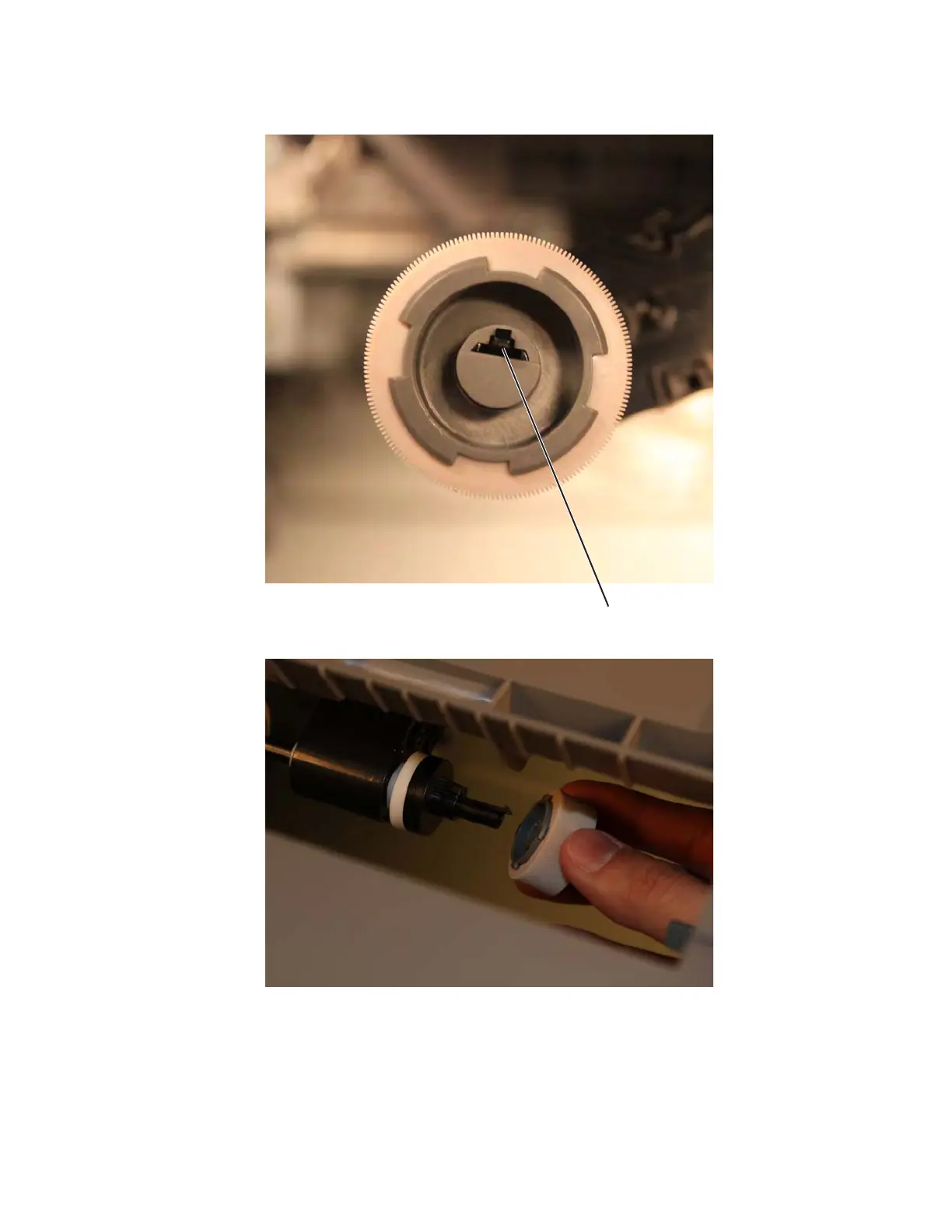

4. Press down the black latch (A) to release the pick tire.

5. Remove the pick roll tire.

6. Repeat steps 4-5 to remove the pick tire on the other side.

A
