Repair information 4-217

5062

Installation note:

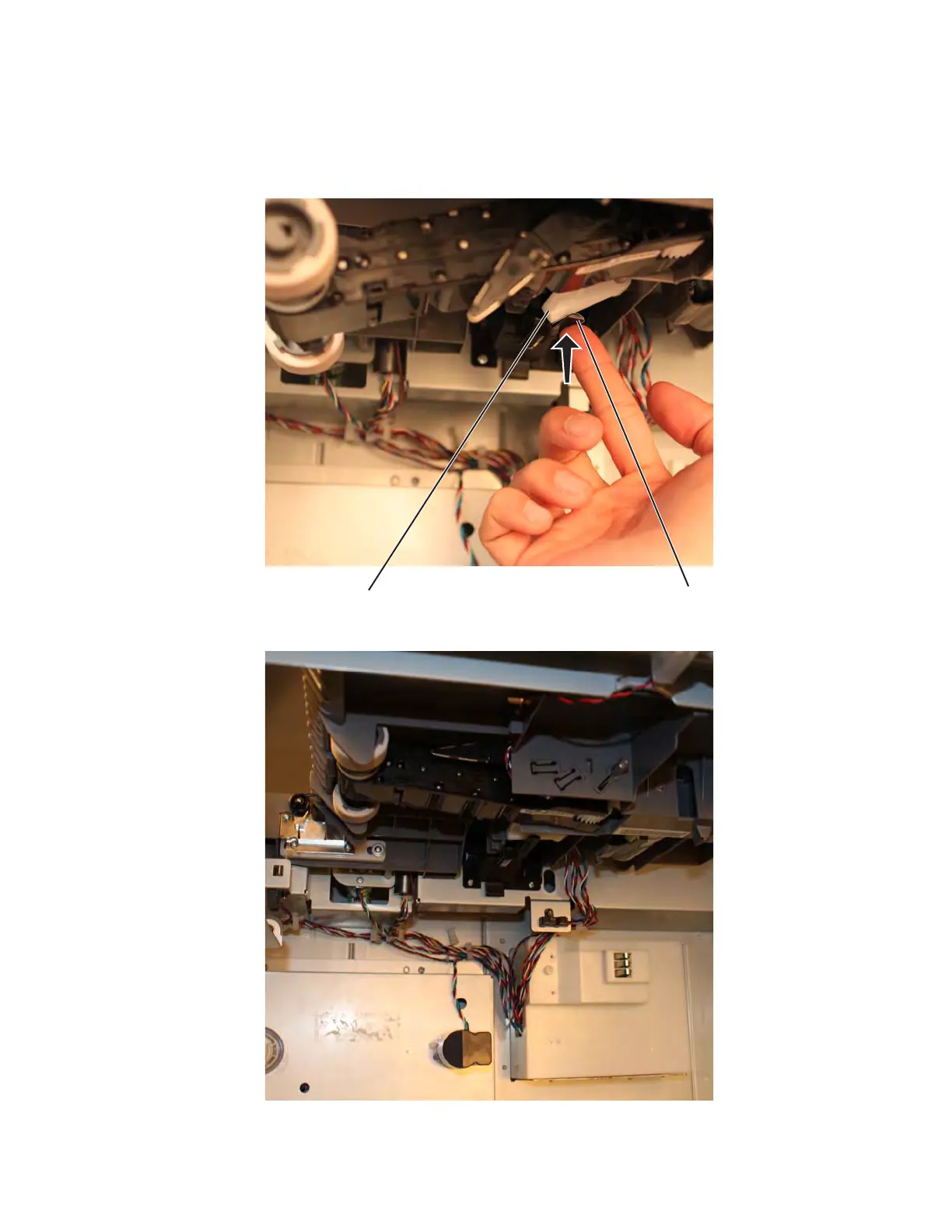

Be sure that the pick arm lever (A) is on top of the actuator lever (B).

If the pick arm is hanging, press the actuator lever as shown in the picture.

Be sure that the pick arm is positioned as shown in the picture.

A B
