Repair information 4-219

5062

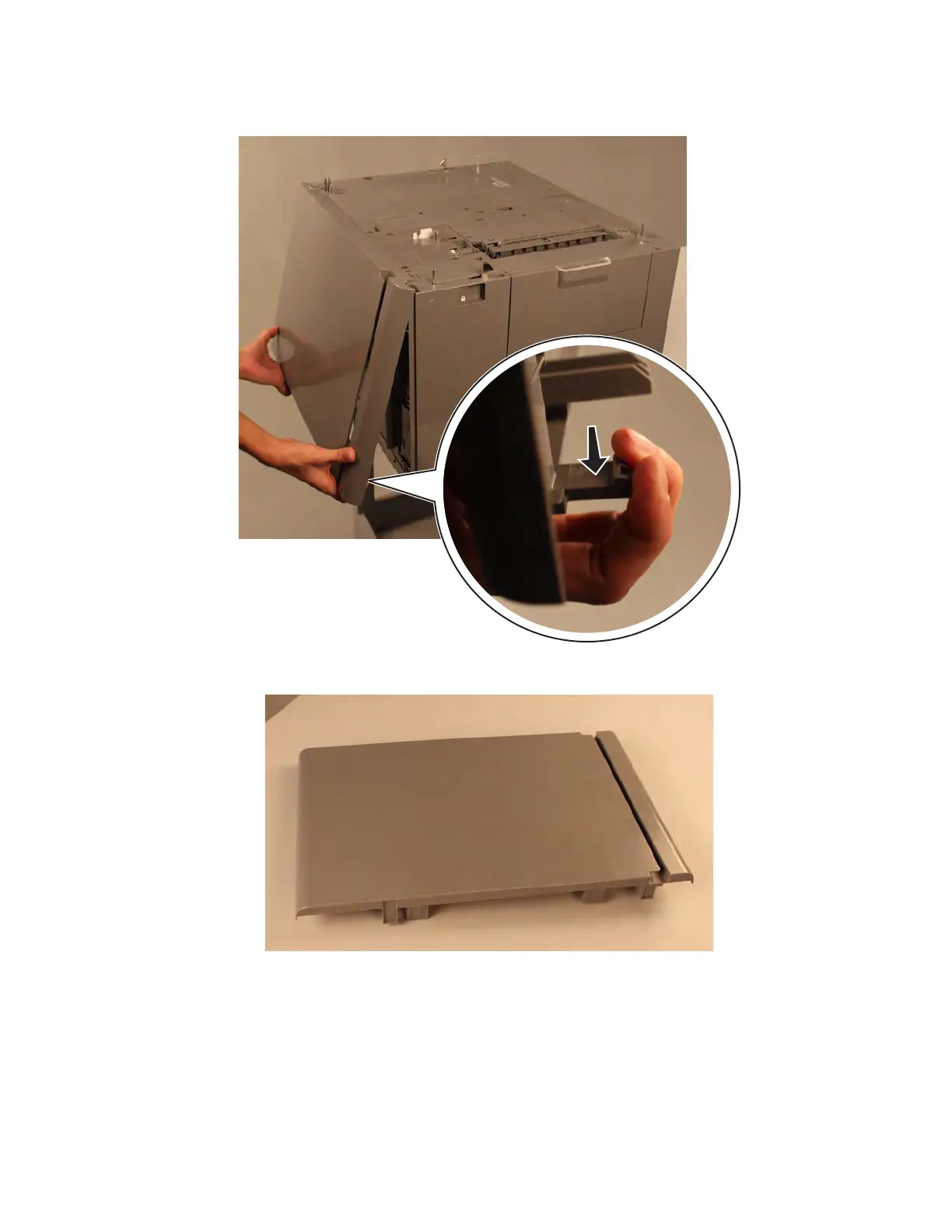

3. Release the two latches, and remove the rear cover.

This is the photo of the 2000-sheet high-capacity feeder rear cover.
