Repair information 4-239
5062
5-bin mailbox paper jam beacon removal
1. Remove the mailbox from the printer.
2. Remove the mailbox front cover. See “5-bin mailbox front cover removal” on page 4-233.
3. Remove the mailbox access door. See “5-bin mailbox access door removal” on page 4-224.

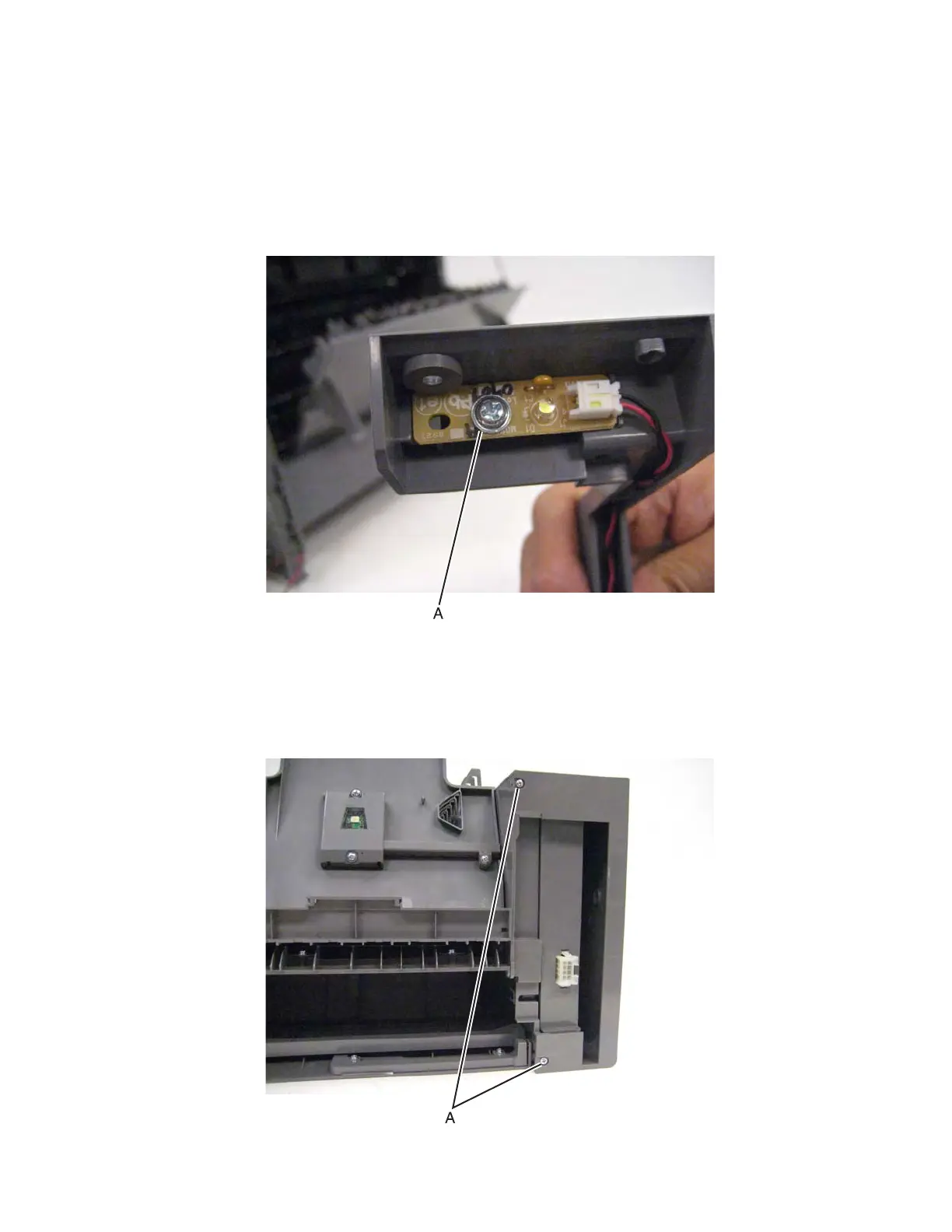

4. Remove one screw (A), and remove the beacon LED card.
5-bin mailbox rear cover removal
1. Remove the mailbox from the printer.
2. Remove two screws (A) from the bottom.
