4-246 Service Manual

5062

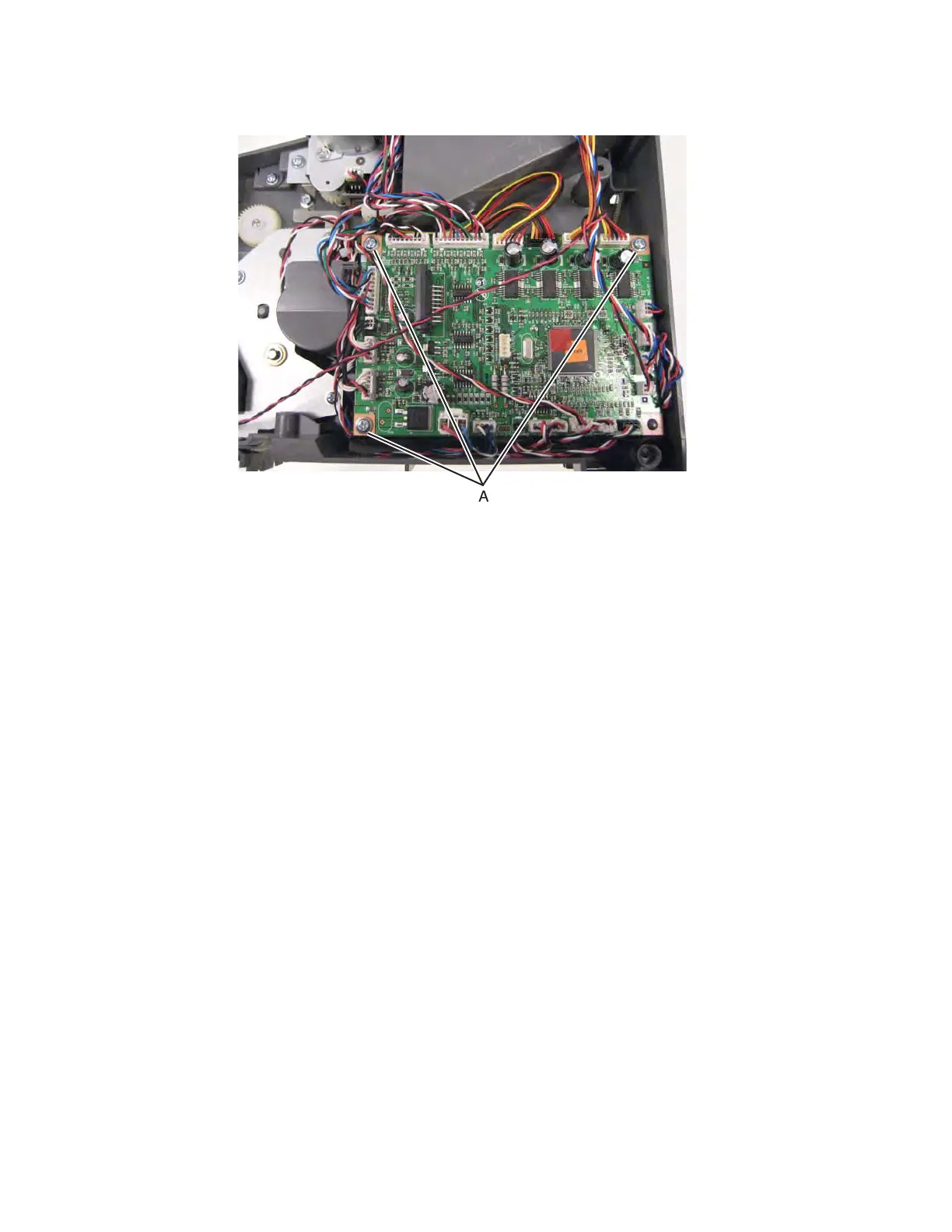

4. Remove the three screws (A) securing the stapler/stacker controller card assembly.

5. Remove the stapler/stacker controller card assembly.

Installation note: Be sure to place the black plastic under the controller card before you put the card in place.
