4-274 Service Manual

5062

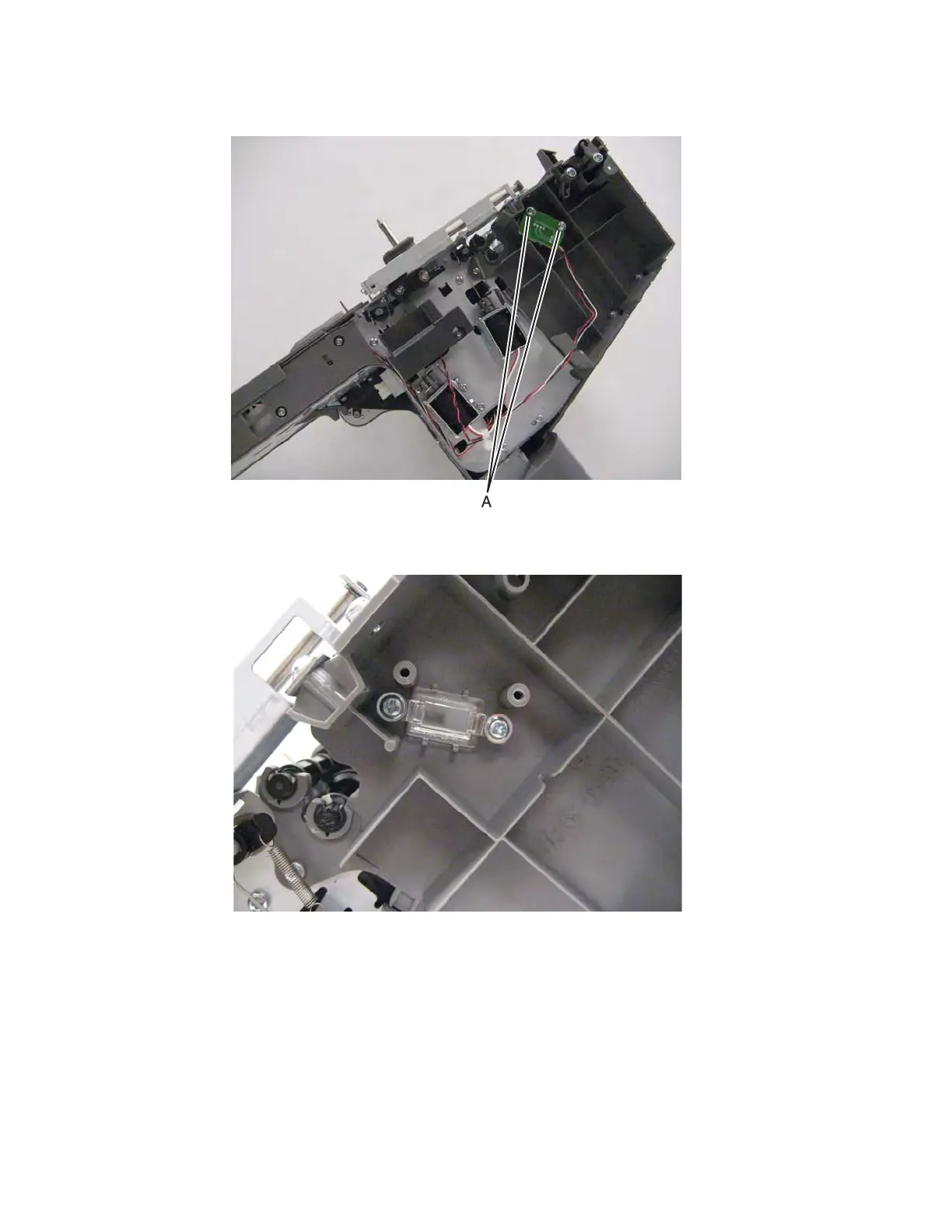

3. Remove the two screws (A), and then remove the sensor card.

4. Disconnect the cable to remove the sensor.

5. If you are replacing the lens, then remove two screws (B) to remove it.
