Repair information 4-295

5062

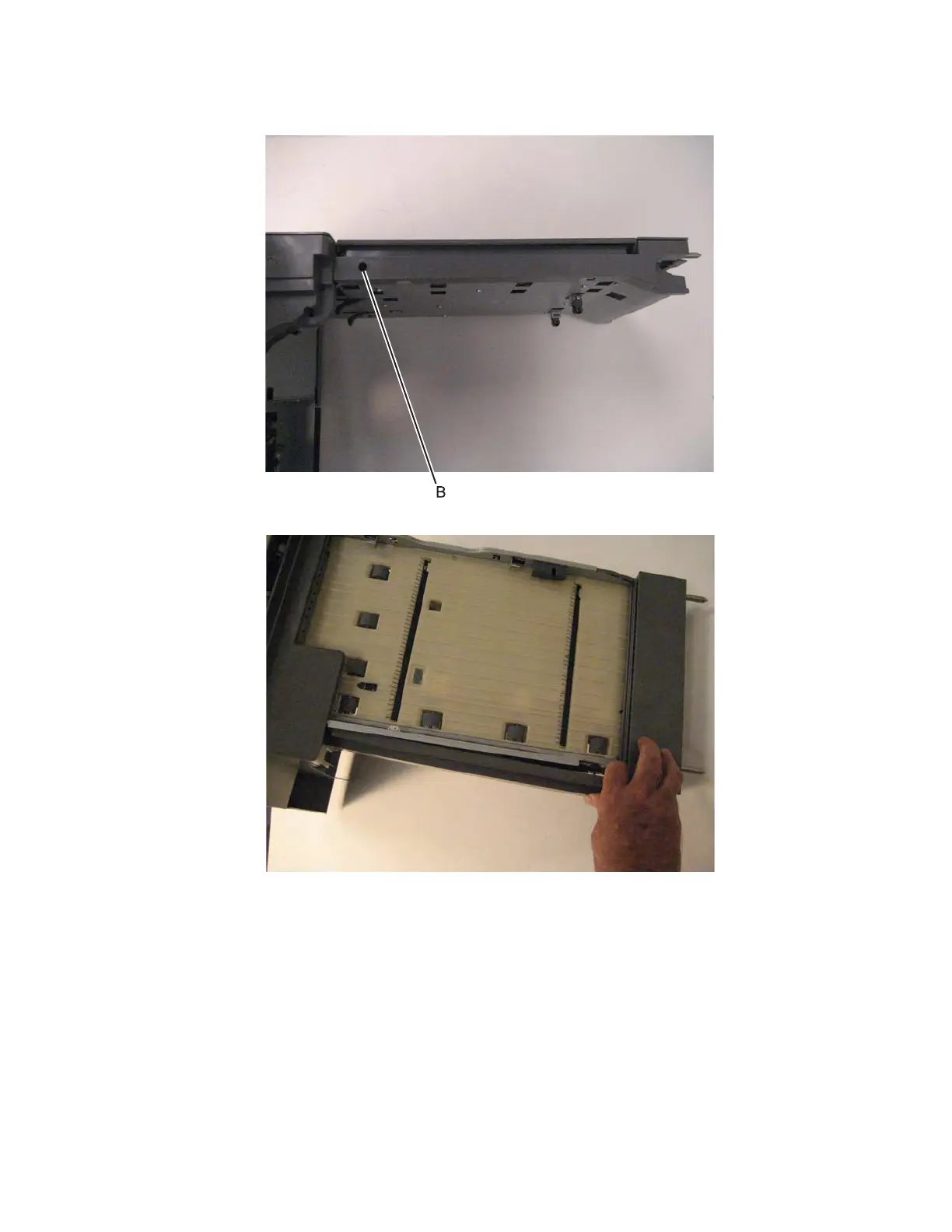

4. Remove the screw (B) from the rear.

5. Pull out the side to release the tabs.

Installation note: Use a screwdriver to push the tabs back into the slots
