Diagnostic information 2-59
5062
3
Remove the rear cover. See “Rear cover
removal” on page 4-18.

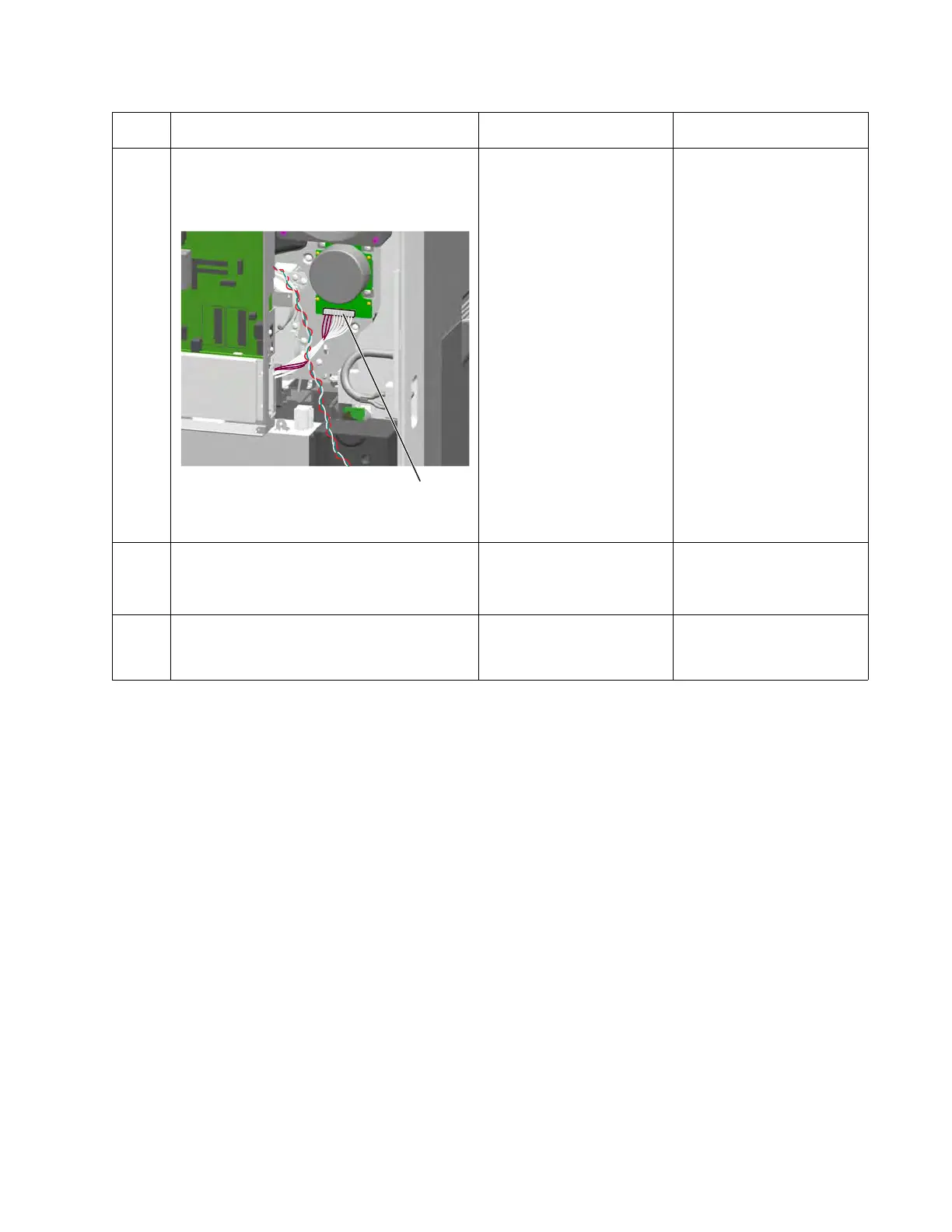

Check the BLDE Y & Fuser cable (B) for
proper connection to the fuser motor.
Is the cable properly connected?
Go to step 4. Reseat the cable.
4
Is the BLDE Y & Fuser cable damaged? Replace the BLDE Y &
Fuser cable. See “EP
drive assembly removal”
on page 4-54.
Go to step 5.
5
Replace the fuser motor. See “Fuser drive
assembly removal” on page 4-61.
Does the problem reoccur?
Replace the system board.
See “System board
removal” on page 4-142.
Problem solved.
Step Questions / actions Yes No
To Next Page
