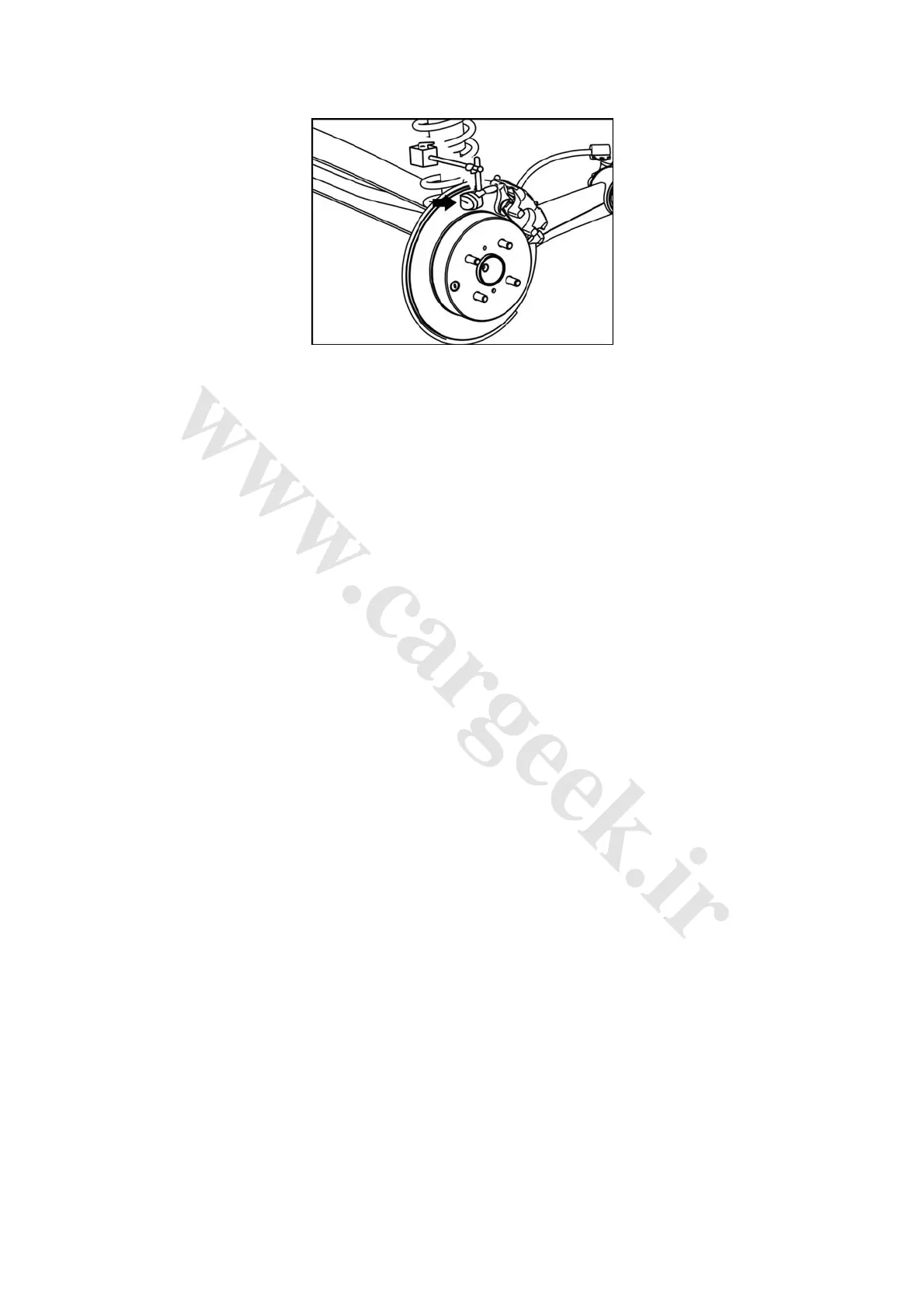

Fig.2-68
In case that the swaying of brake disc reaches or exceeds the limit, check the axial clearance of ③
the bearing and the swaying of wheel hub. If both bearing and hub are normal, adjust the swaying
of brake disc.
(3) Installation
1) Temporarily screw down the air discharging bolt on the rear brake slave cylinder.
2) Install the oil seal of piston.
Smear the ① lithium base glycol grease on the new oil seal of the piston.
Insert the new oil seal into th② e brake slave cylinder.
3) Install brake piston.
Smear the ① lithium base glycol grease on the brake piston.
Install the piston into the front disc brake slave cylinder. Note: Do not forcibly spin the piston ②
into the brake slave cylinder.
4) Install the dustproof cover of brake slave cylinder.
Smear the ① lithium base glycol grease on the dustproof cover of the new brake slave cylinder,
and install it into the brake pump. Note: Install the dustproof cover into the groove between the
slave cylinder and piston.
Install the retaining ring by a screwdriver. ② Note: Do not damage the dustproof cover of the slave
cylinder.
5) Install the support of left rear brake slave cylinder. Tighten the support by 2 bolts. Tightening
torque: 88N·m.
6) Install the dustproof cover of the rear disc brake bush.
Smear the ① lithium base glycol grease on the surface of 2 new dustproof covers.
Install the 2 dustproof covers into the support of front disc brake slave cylinder. ②
7) Install the sliding pin of the rear disc brake slave cylinder.
Smear the ① lithium base glycol grease on the sliding part of the 2 sliding pins and the surface of
oil seal.
Install the 2 sliding pins into the support of the front disc brake slave cylinder.②
8) Install the rear brake pad holding piece. Remove the 2 holding pieces from the rear disc brake
slave cylinder support.
9) Install the components of brake pad. Note: The silencer pad must be replaced at the same time
while the wear brake pad is replaced.
Smear grease for disc brake on the① two sides of each silencer pad. See Fig. 2-69.
