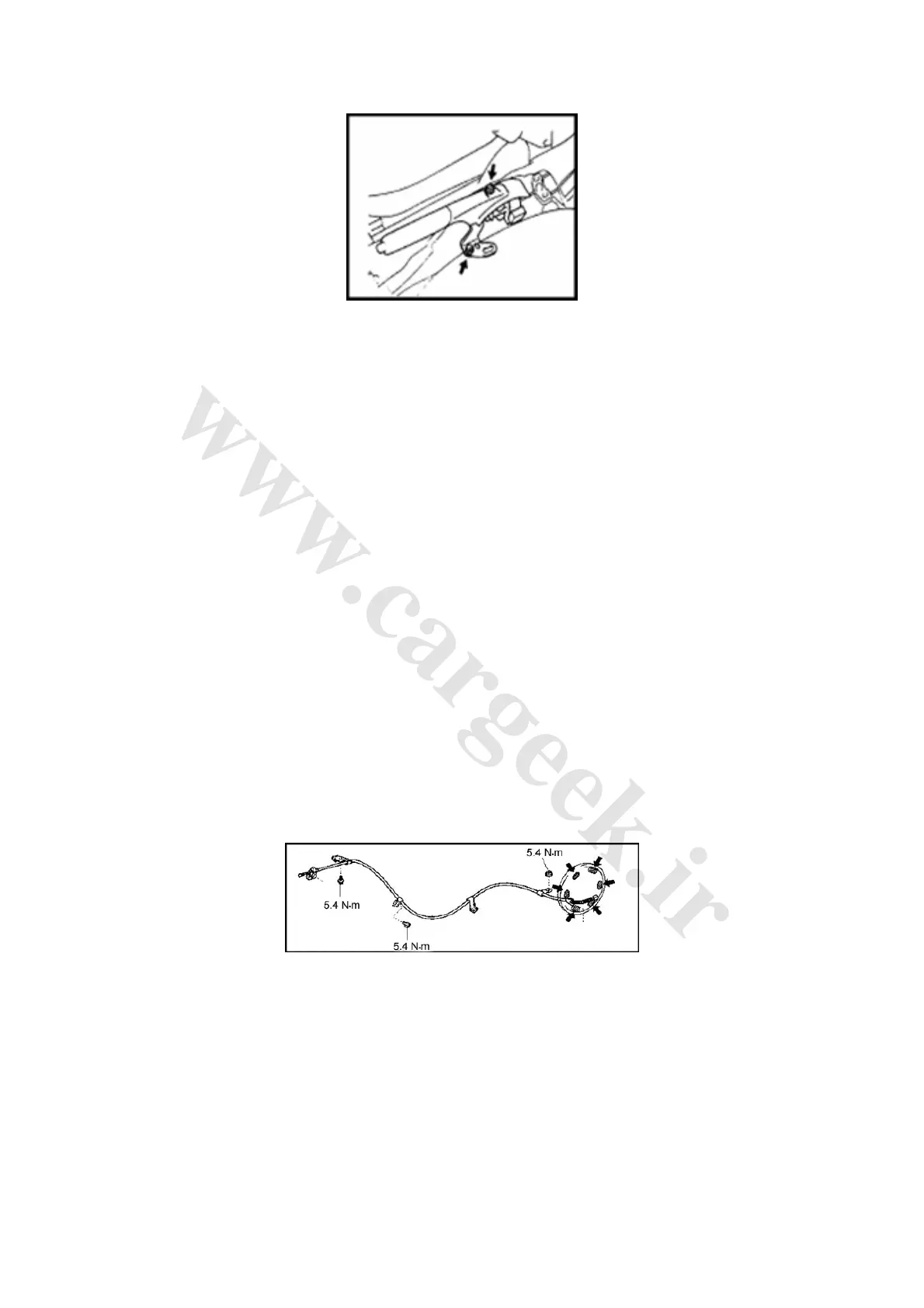

Fig. 2-75
Dismantle the connector of the parking brake rod switch.①
Take off the parking brake rod after rem② oving the 2 bolts.
8) Dismantle the parking brake switch components. Remove the bolts and parking brake switch
components.
(2) Installation
1) Install the parking brake switch components.
2) Install the parking brake switch components by bolts.
Insta① ll the parking brake cable onto the rod and install the lead of No. 1 adjustment nut.
② Tighten the parking brake rod by 2 bolts. Tightening torque: 13N·m.
Connect the connector of parking brake switch.③
3) Open the auxiliary fascia console sundries box cover, and dismantle the two bolts at the bottom.
4) Dismantle the floor brake cover.
5) Remove and replace bolt 3 (both left and right).
6) Install the two bolts of the fixed fascia console and auxiliary fascia console beneath the air
conditioning control panel.
7) Install the trim strip of the instrument cluster and air conditioning control panel.
8) Check the parking brake rod play.
9) Adjust the parking brake rod play.
4. Accessories of parking brake rod
Disassembly of parts and components (as shown in Fig. 2-76)
Fig. 2-76
(1) Removal
Remove the No. 2 parking brake cable components by the same way with the right side.
1) Remove the trim strip of the instrument cluster and air conditioning control panel.
2) Remove the two bolts of the fixed fascia console and auxiliary fascia console beneath the
position of the air conditioning control panel.
3) Remove and replace the bolt 3 (both left and right)
4) Remove the floor brake cover.
5) Open the auxiliary fascia console sundries box cover, and dismantle the two bolts at the bottom.
