6) Remove the No. 1 adjustment nut lead.
7) Remove the accessories of the parking brake rod as shown in Fig. 2-76.
Dismantle the connector of the parking brake rod switch.①
Take off the parking brake rod after removing the 2② bolts.
8) Dismantle the parking brake switch components. Remove the bolts and parking brake switch
components.
9) Dismantle the components of the front exhaust pipe.
10) Dismantle the No. 2 front floor heat-insulating pad. Remove the 2 bolts and take off the front
floor hear-insulating pad.
11) Disassemble the No. 3 parking brake cable components.
Remove the No. 3 parking brake cable from the vehicle body after removing the 4 bolts.①
② Remove the cable components after disconnecting the components of No. 3 parking brake
cable from the parking brake balancer.
12) Remove the rear wheel.
13) Remove the accessories of the brake disc.
14) Remove the front brake shoe.
15) Remove the left rear self-adjusting rod.
16) Remove the rear brake shoe.

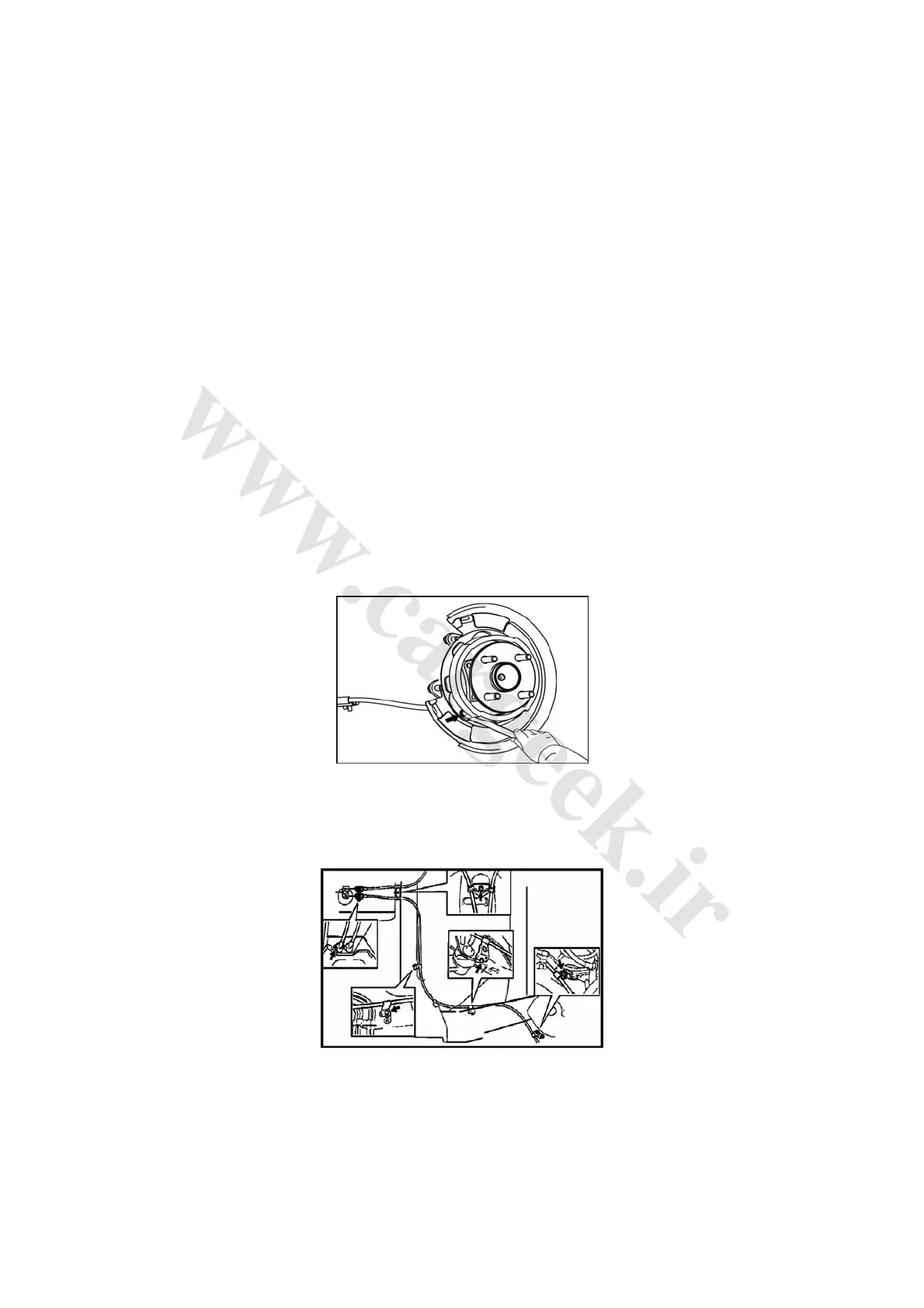

17) Remove the components of No. 3 parking brake cable. Disconnect the components of No. 3
parking brake cable from the soleplate after removing the bolts, as shown in Fig. 2-77.
Fig. 2-77
(2) Installation
1) Install components of No. 3 parking brake cable, as shown in Fig. 2-78.
Fig. 2-78
① Connect the components of No. 3 parking brake cable to the balancer.
Tighten the No. 3 parking brake cable by 4 bolts. ② Tightening torque: 5.4N·m.
2) Install the components of No. 3 parking brake cable. Tighten the components of No. 3 parking
