Page 68 of 182 TP1A002–1 English
Aug 2015
Linx 8900 Operating Manual —
Line and message settings
Linx 8900
Calculate Encoder Pitch
NOTE: Make sure that a shaft encoder is installed on the production line and the encoder is
connected to the printer.
1 Set the printer to Shaft Encoder mode (see ‘Speed Mode’ on page 58).
2 On the Line Settings screen, touch the Advanced button and select the Calculate
Encoder Pitch option from the Advanced Line Settings screen. The printer
displays the Calculate Encoder Pitch screen.

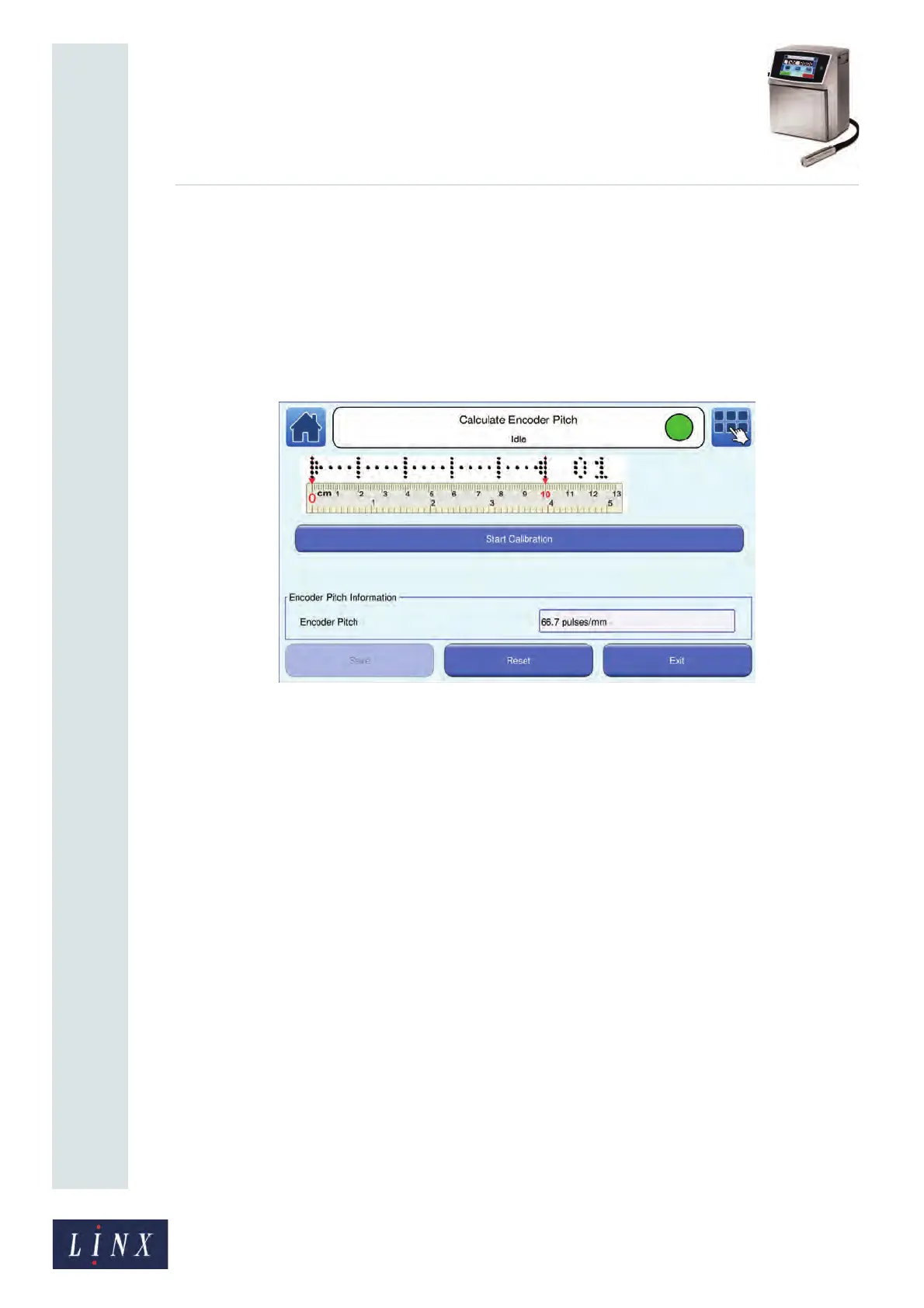

Figure 68. Calculate Encoder Pitch: Start Calibration screen
3 Stop the production line.
4 Put a sheet of paper or sample product on the production line. Touch the Start
Calibration button to begin to measure the encoder pitch.
NOTE: You may need to adjust the position of the printhead if you do not print on
a sample product.
If the printer is in the ‘Idle’ state, the printer enters the ‘Jet Starting’ state, and then
the ‘Jet Running’ state. When the printer is in the ‘Printing’ state, the Print
Calibration Message button is enabled. The current encoder pitch is shown in the
“Encoder Pitch Information” box.
