Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 140

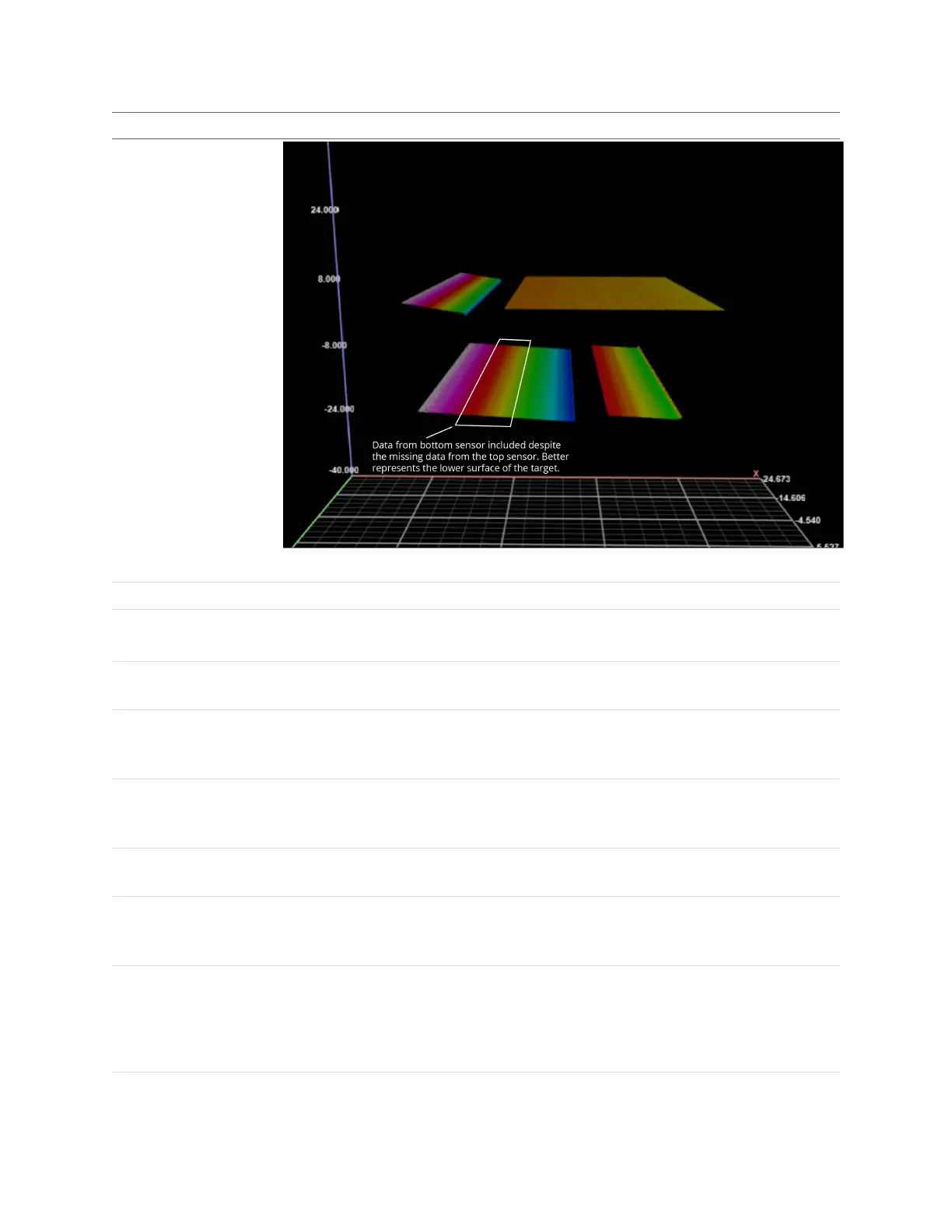

Setting Description
In general, you should leave this setting enabled.
Threshold Direction Determines if parts should be detected above or below the height threshold.
Gap Width Determines the minimum separation between objects on the X axis. If parts are closer
than the gap interval, they will be merged into a single part.
Gap Length
Determines the minimum separation between objects on the Y axis. If parts are closer
than the gap interval, they will be merged into a single part.
Padding Width Determines the amount of extra data on the X axis from the surface surrounding the
detectedpart that will be included. This is mostly useful when processing part data with
third-party software such as HexSight, Halcon, etc.
Padding Length Determines the amount of extra data on the Y axis from the surface surrounding the
detectedpart that will be included. This is mostly useful when processing part data with
third-party software such as HexSight, Halcon, etc.
Min Area Determines the minimum area for a detected part. Set this value to a reasonable
minimum in order to filter out small objects or noise.
Max Part Length Determines the maximum length of the part object. When the object exceeds the
maximum length, it is automatically separated into two parts. This is useful to break a
long object into multiple sections and perform measurements on each section.
Frame of Reference Determines the coordinate reference for surface measurements.
Sensor
When Frame of Reference is set to Sensor, the sensor's frame of reference is used. The
