Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 153
Data Type Option or
Button
Description
Intensity button In 2D view, displays the intensity.
In 3D view, overlays the intensity map on the 3D model.
(Acquire Intensity must be checked in the Scan Mode panel for this button to be visible.)

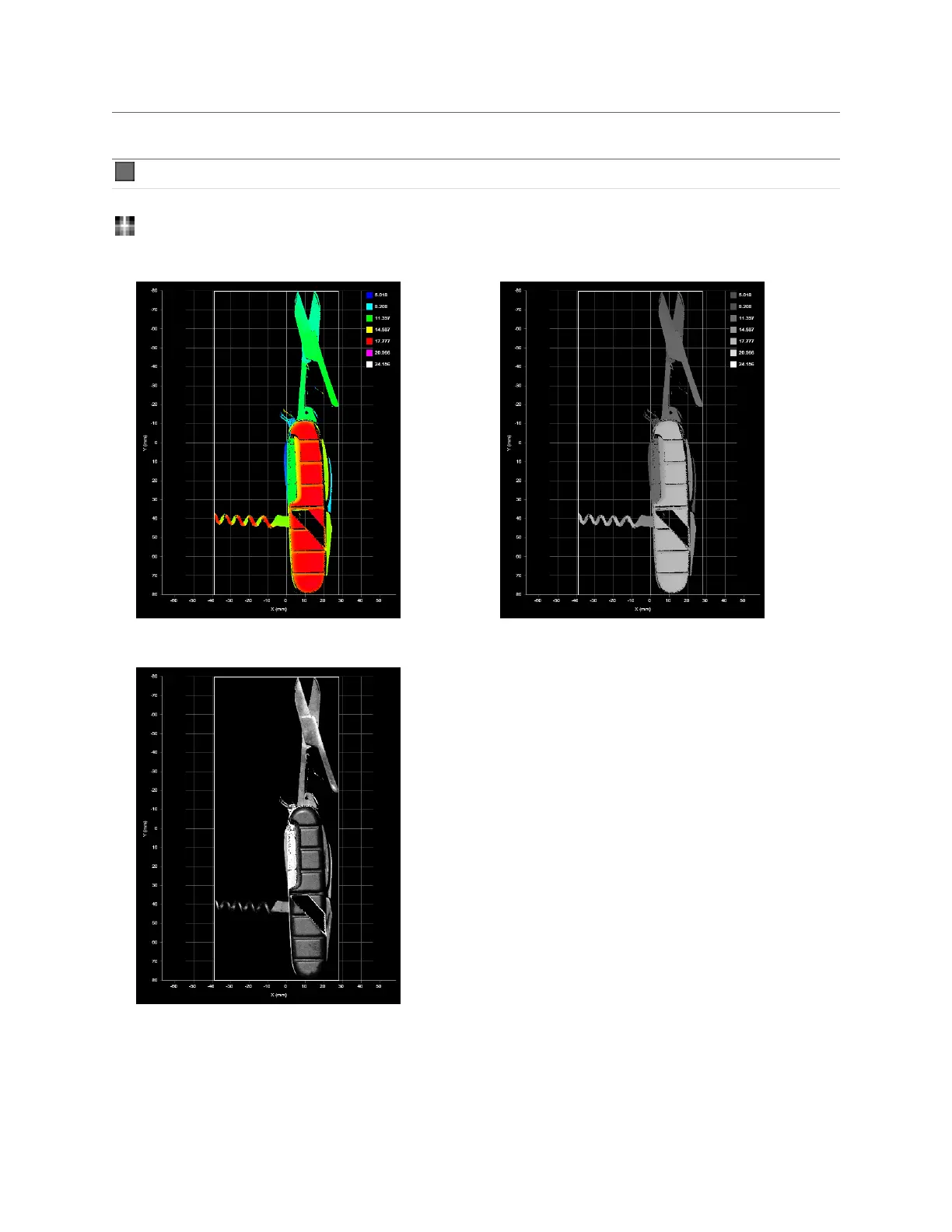

2D viewer with height map overlay 2D viewer with grayscale overlay
2D viewer with intensity overlay
Choosing the Profile view option will switch the data viewer out of the 3D viewer and display a profile.
