Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 260

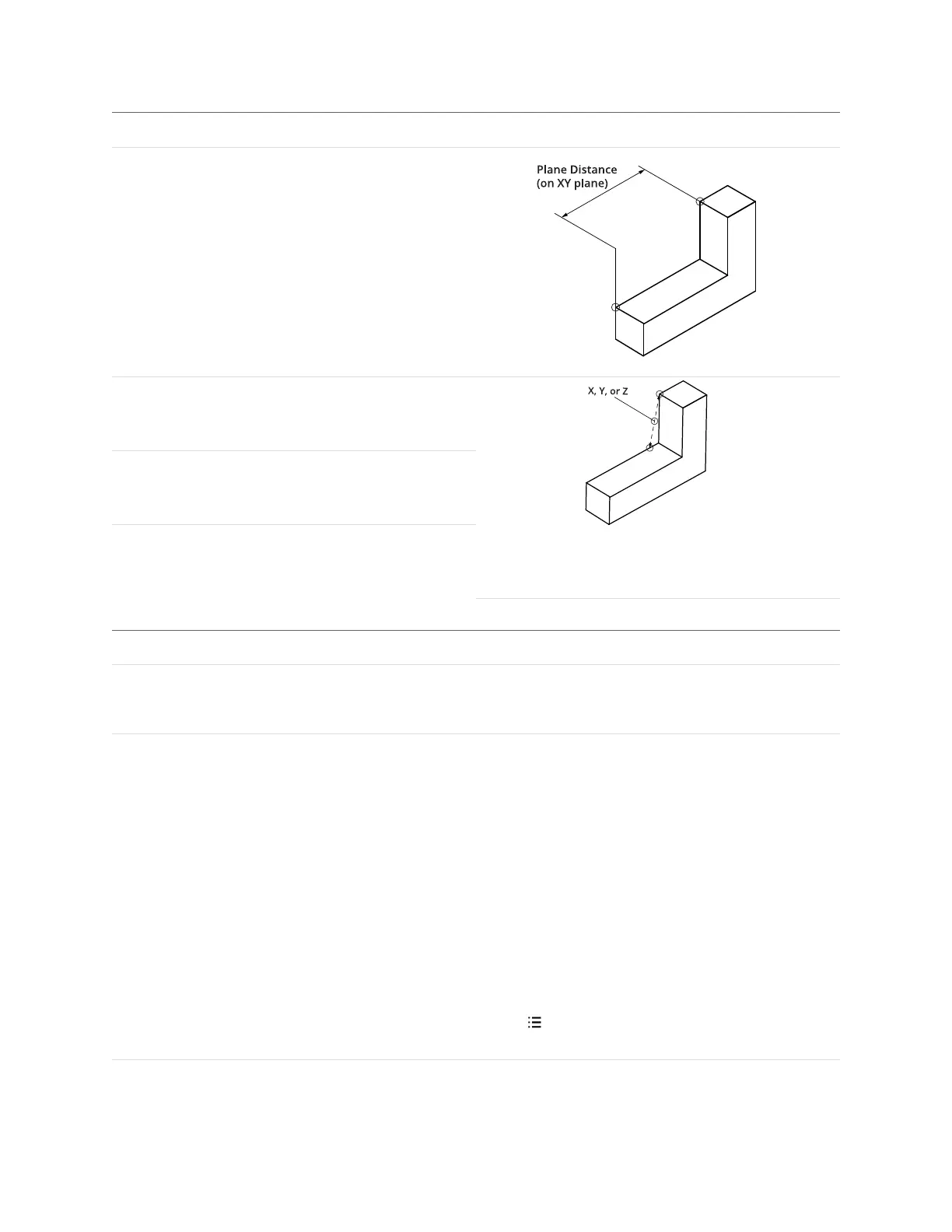

Measurement Illustration
Plane Distance
Determines the distance between the selected features.
The position of the lowest feature point is projected onto
the XY plane of the highest feature point.
Center X
Determines the X position of the center point between the
selected features.
Center Y
Determines the Y position of the center point between the
selected features.
Center Z
Determines the Z position of the center point between the
selected features.
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 183.
Feature 1
Feature 2
The Feature 1 and Feature 2 settings represent the two
features the tool uses to perform measurements. For each,
one of the following:
l Average
l Median
l Centroid
l Max X
l Min X
l Max Y
l Min Y
l Max Z
l Min Z
To set the region of a feature, adjust it graphically in the
data viewer, or expand the feature using the expand
button ( ) and enter the values in the fields. For more
information on regions, see Regions on page 184.
Parameters
