Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 272
Parameter Description

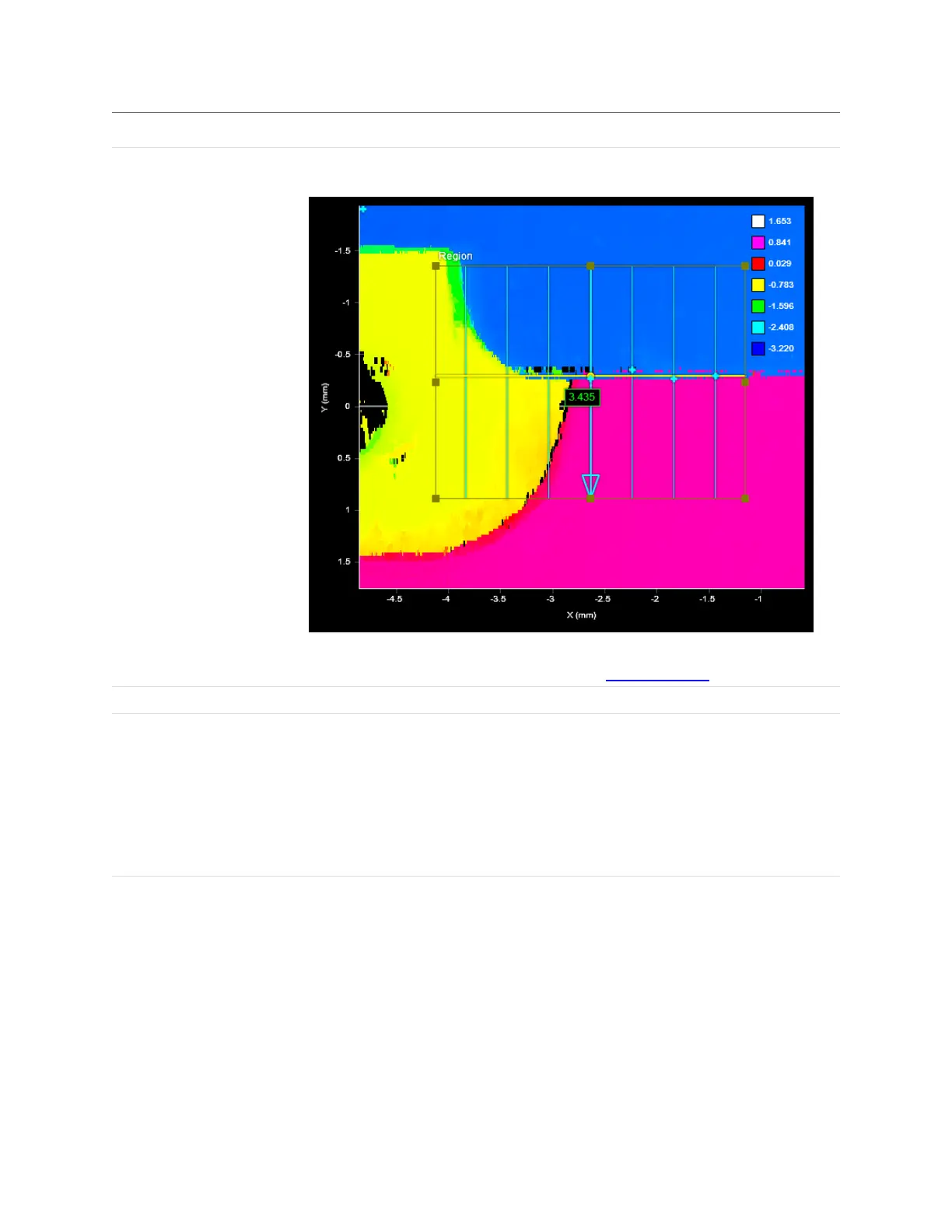

2 mm) are excluded. Only steps from the blue to pink regions (roughly 3 mm) are
included.
When Use Intensity is enabled, the setting specifies the minimum difference in
intensity. (Acquire Intensity must enabled in the Scan Mode panel.)
Use Relative Threshold When this option is enabled, the Relative Threshold field is displayed.
Relative Threshold The value for the relative threshold.
The tool calculates a relative threshold by scaling the greatest height or intensity
difference found on the path profiles by the percentage in Relative Threshold. This lets
you configure the tool without knowing the actual step height in advance, and is useful
for edges with varying step height.
For a height or intensity difference to be considered a valid step, both Absolute
Threshold and Relative Threshold must pass.
