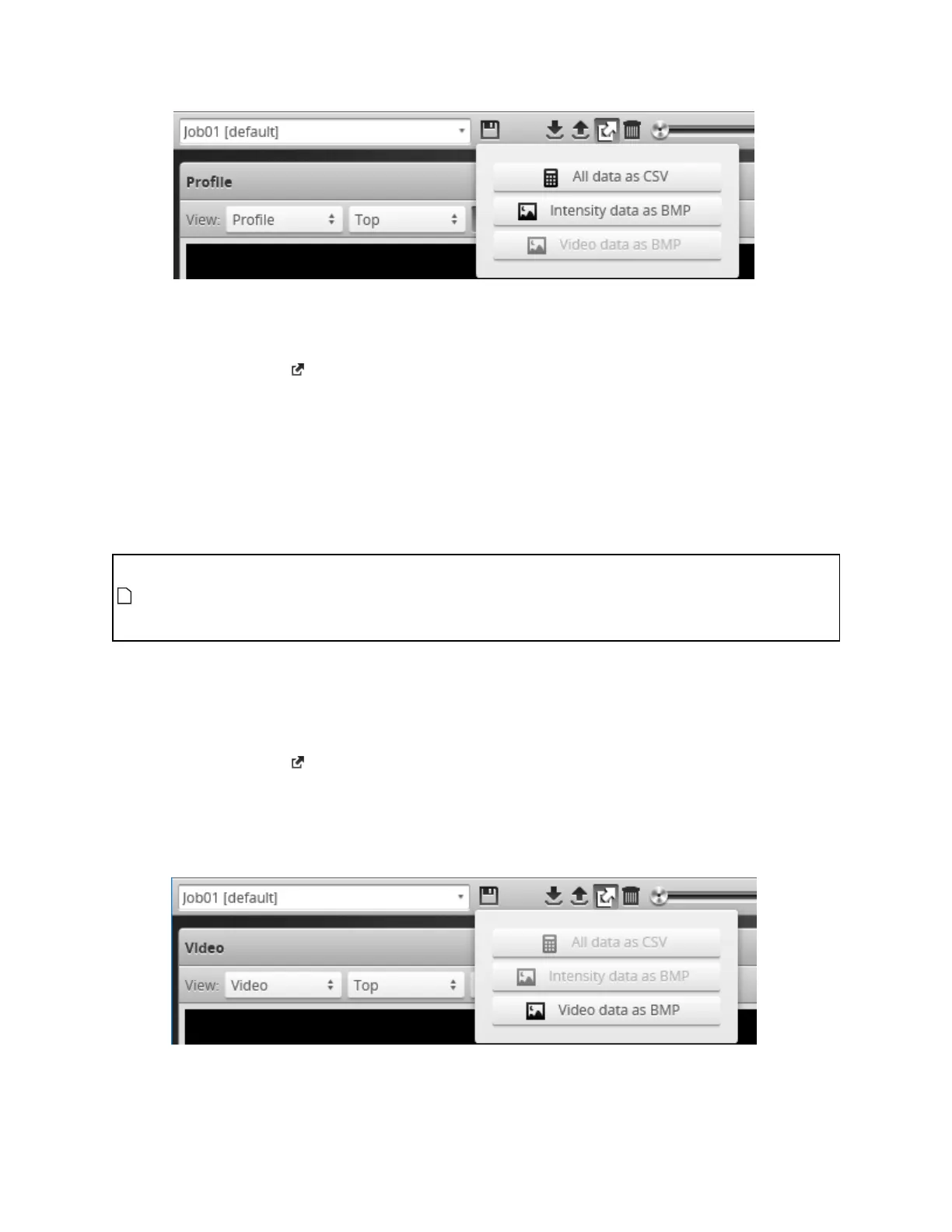

To export replay data in the CSV format:
1. In the Scan Mode panel, switch to Profile or Surface.
2. Click the Export button and select All Data as CSV.
In Profile mode, all data in the record buffer is exported. In Surface mode, only data at the current
replay location is exported.
Use the playback control buttons to move to a different replay location; for information on playback,
see To replay data in Recording, Playback, and Measurement Simulation on page 72.
3. (Optional) Convert exported data to another format using the CSVConverter Tool. For information on
this tool, see CSV Converter Tool on page 575.
The decision values in the exported data depend on the current state of the job, not the state
during recording. For example, if you record data when a measurment returns a pass decision,
change the measurement's settings so that a fail decision is returned, and then export to CSV,
you will see a fail decision in the exported data.
Recorded intensity data can be exported to a bitmap (.BMP format). Acquire Intensity must be
checked in the Scan Mode panel while data was being recorded in order to export intensity data.
To export recorded intensity data to the BMP format:
l Click the Export button and select Intensity data as BMP.
Only the intensity data in the current replay location is exported.
Use the playback control buttons to move to a different replay location; for information on playback,
see To replay data in Recording, Playback, and Measurement Simulation on page 72.
