2250 SERVICE/MAINTENANCE MANUAL HYDRAULIC AND AIR SYSTEMS
2
Item Description
1 End Cover
2 Purge Valve Assembly
3 Capscrew
4Sleeve Nut
5 Mounting Strap
6 Mounting Saddle
7 Adjusting Nut
8 Mounting Strap
9 Isolator
10 Upper Bracket
11 Capscrew (qty 2)
12
Lock Nut (qty 2)
13 Special Washer (qty 4)
14 Lower Mounting Bracket
15 Air Dryer Assembly
16 Capscrew (qty 6)
17 Lock Nut (qty 6)
18 Special Washer (qty 12)
19
Air Dryer Housing
20 Outer Housing O-ring
21
Desiccant Cartridge
22 Desiccant Cartridge O-ring

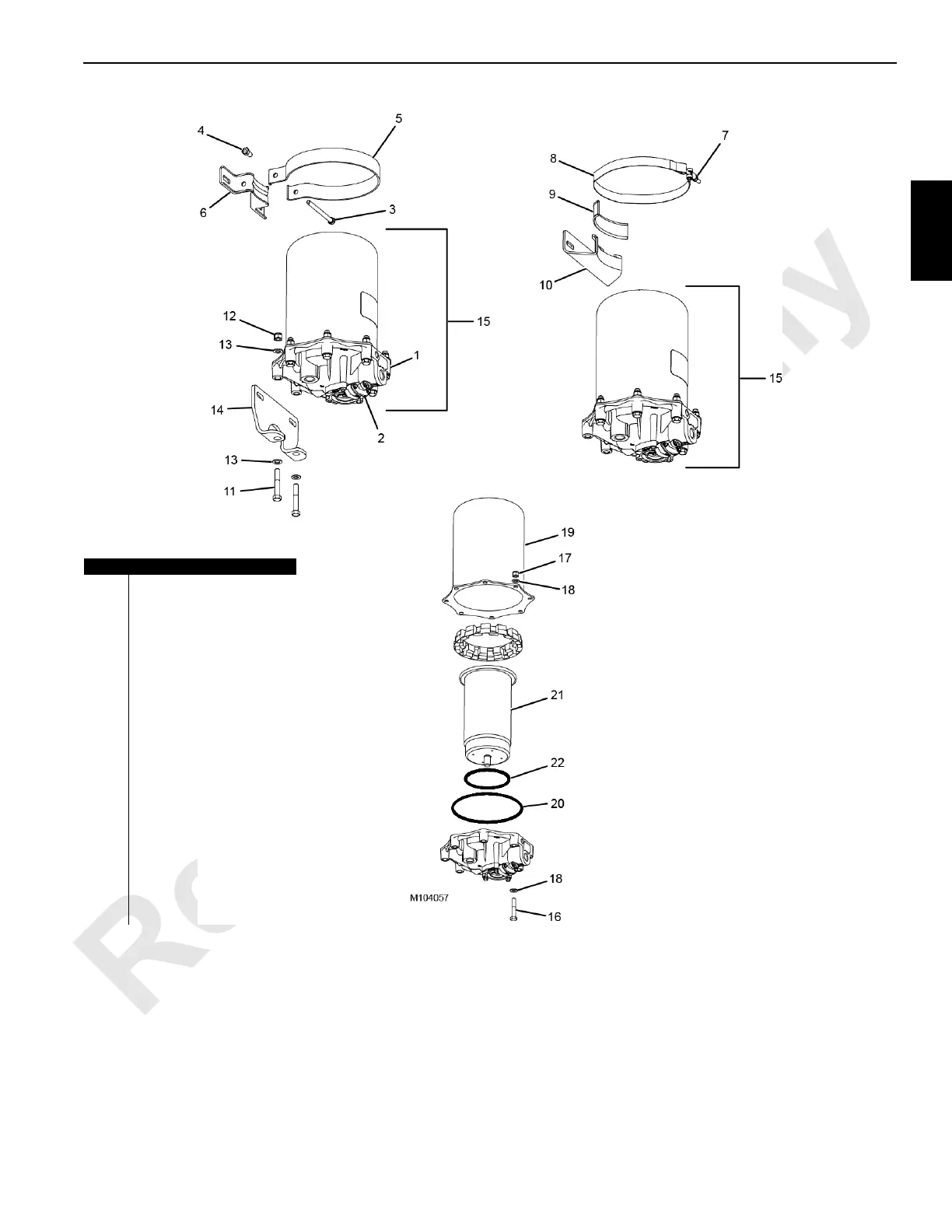

FIGURE 2-35
