Manitowoc 2250 Service Maintenance Manual

Reference Only
Manitowoc Published 07-19-16, Control # 249-01 10-41
2250 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10

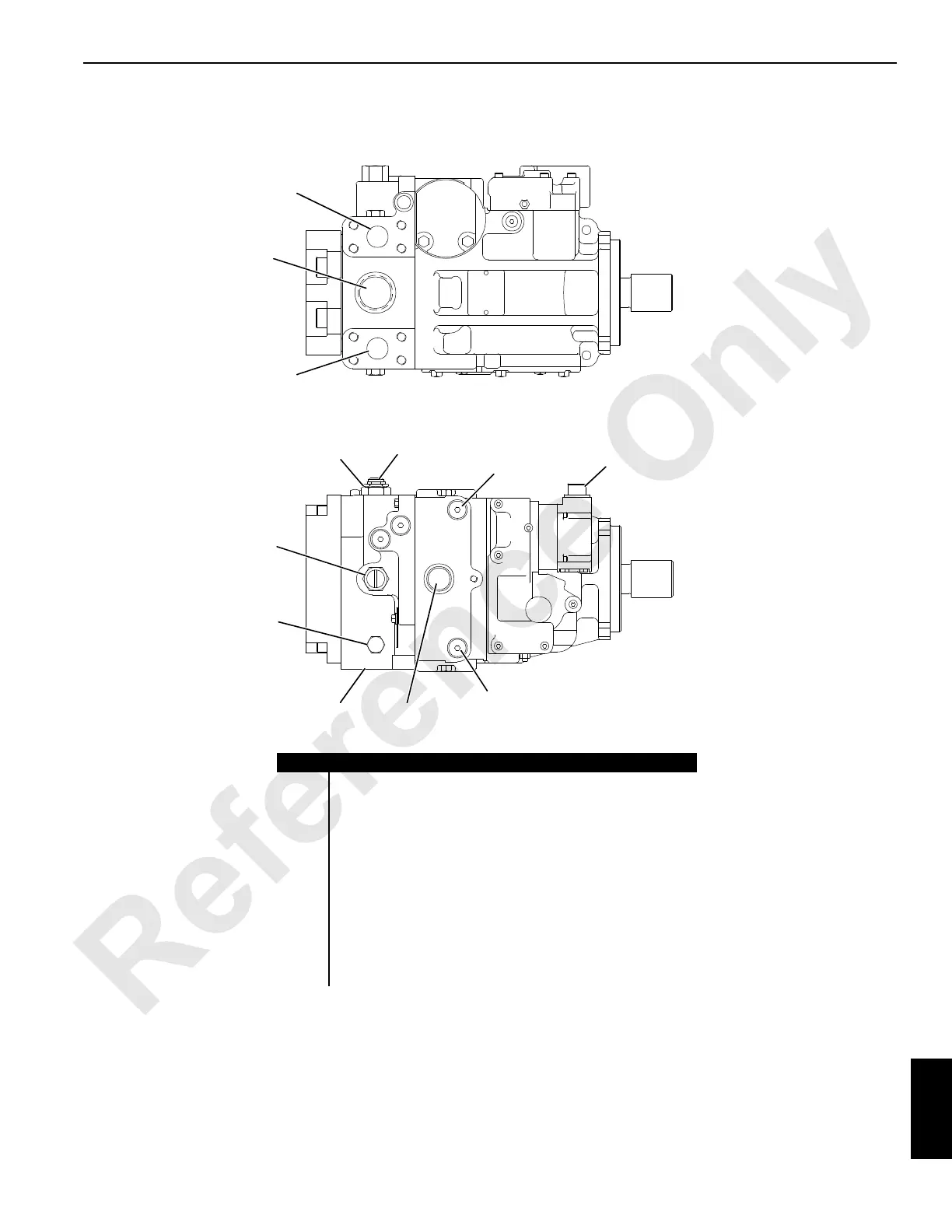

Test 8—Location of Pump Ports
A1188
1
2
3
4
5
6
7
8
9
10
11
7
FIGURE 10-9
Item Description
1 Port A—Main System Pressure
2 Port B—Main System Pressure
3 Case Drain (highest port as outlet)
4 System Pressure Gauge Port A
5 System Pressure Gauge Port B (other side)
6 Charge Pressure Gauge Port (between multifunction valves)
7 Servo Pressure Gauge Port
8 Multifunction Valves
9 Charge Pump Inlet
10 Charge Pressure Relief Valve
11 Electrical Displacement Valve (EDC)
