TROUBLESHOOTING 2250 SERVICE/MAINTENANCE MANUAL
10-34
Published 07-19-16, Control # 249-01
TESTING COMPONENTS
Test 1—Testing the Battery (12 and 24 volts
DC)
Test the 12-volt DC accessory system voltage with a digital
multimeter. Record the voltage before and during engine
cranking.
A voltage reading of 12 volts or less before engine cranking
may indicate a charging system fault. A drop of 4 volts or
more indicates the battery is failing.
Test the 12-volt DC starting batteries in series for 24 volts
using a digital multimeter. Record the voltage before and
during engine cranking.
A voltage reading of 24 volts or less before engine cranking
may indicate a charging system fault. A drop of 8 volts or
more indicates the battery is failing.

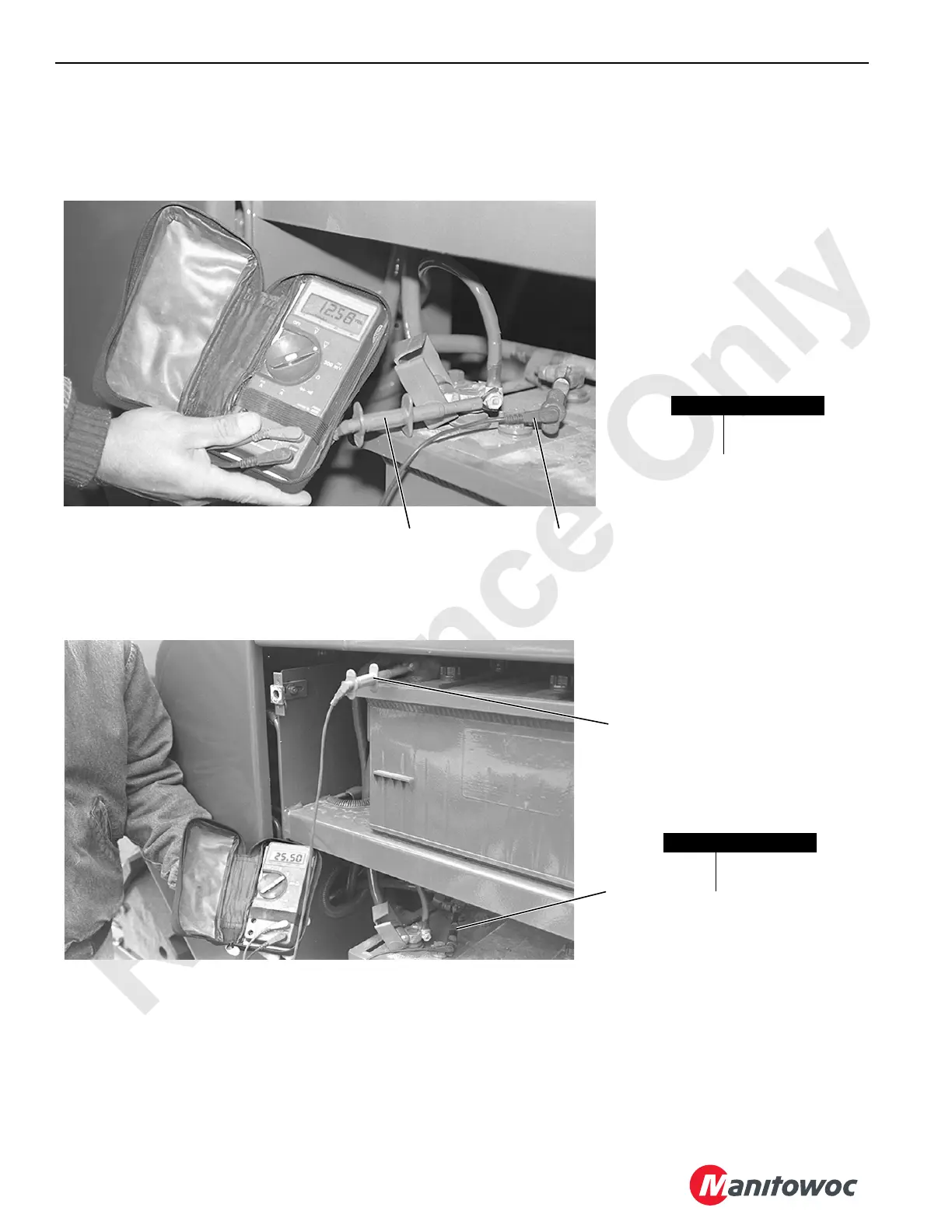

P1538
12
FIGURE 10-1
12 Volts DC
Item Description
1 Positive Lead
2 Negative Lead
P1539
24 Volts DC
1
2
FIGURE 10-2
Item Description
1 Positive Lead
2 Negative Lead
