BOOM 2250 SERVICE/MAINTENANCE MANUAL
4-10
Published 07-19-16, Control # 249-01
Disconnecting the Luffing Jib Angle
Indicator Sending Unit Assembly

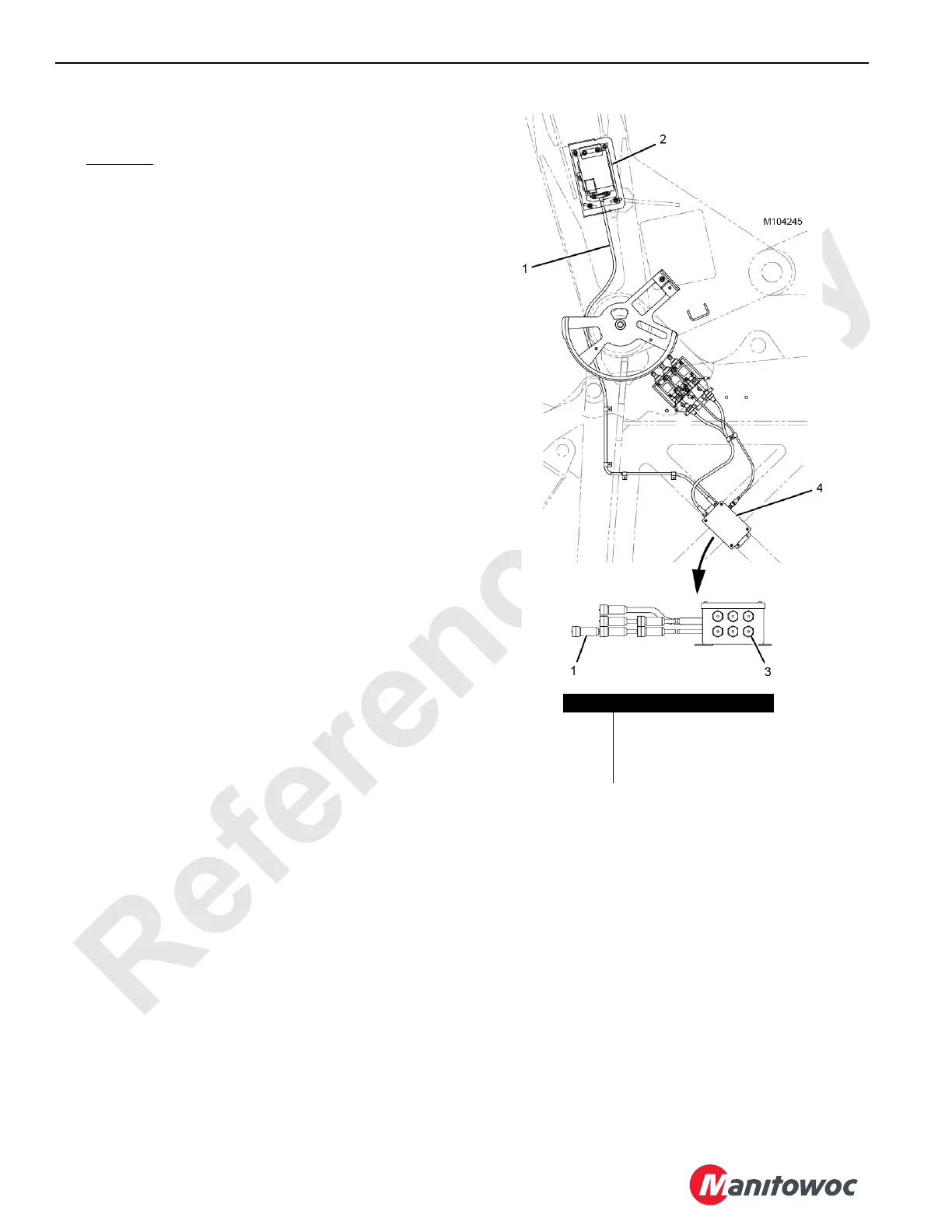

See Figure 4-7 for the following procedure.
1. Disconnect the electrical cord (1) from the receptacle on
the sending unit (2).
2. Install the protective cap on the receptacle on the
sending unit.
3. Connect the electrical cord to the shorting plug (3) on
the boom point junction box (4).
NOTE: The procedure for disconnecting the boom angle
indicator sending unit assembly is the same as the
procedure for the luffing jib angle indicator sending
unit assembly.
Item Description
1 Electrical Cord
2 Sending Unit
3 Shorting Plug
4 Boom Point Junction Box
FIGURE 4-7
