2250 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10
Test 10—Manually Stroking the Pump
See Test 8—Location of Pump Ports for the location of the
pump ports. To stroke the pump, perform the following
procedure:
1. Start with the engine running and all brakes and locks
engaged.
2. Rotate the pump manual stroke override (1) in the
clockwise direction to load down and raise the pressure
in port A.
3. Rotate the pump manual stroke override in the
counterclockwise direction to load down and raise the
pressure in port B.
P966
1
2

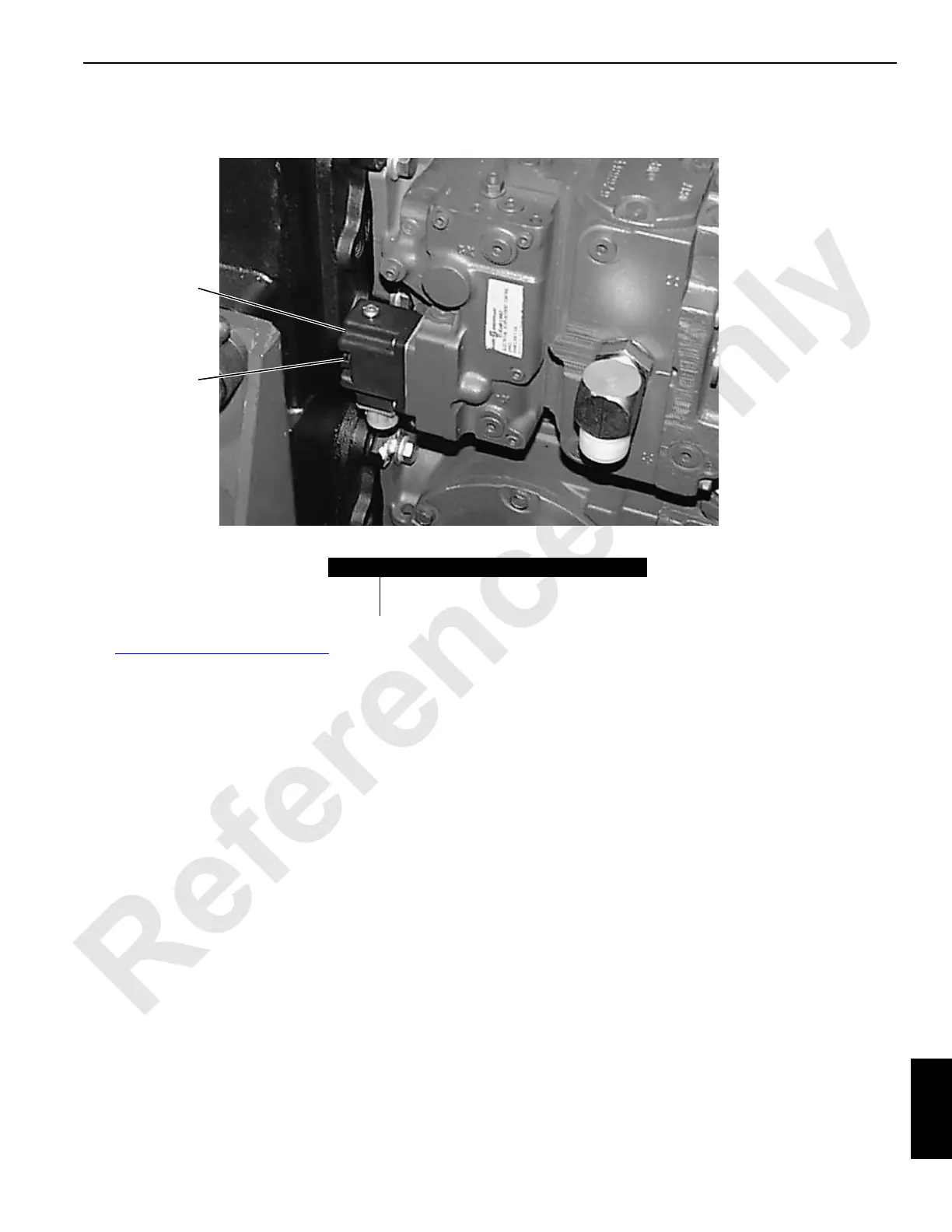

FIGURE 10-11
Item Description
1 Manual Stroke Override
2 Pump Electric Displacement Control (EDC)
