ELECTRICAL SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-2
Published 07-19-16, Control # 249-01
CIRCUIT BREAKER AND FUSE ID
General
This section identifies the fuses and circuit breakers.
The fuses are mounted in the fuse junction box located in the
operator’s cab (Figure 3-1
) or the CraneSTAR TCU Harness
at the batteries (Figure 3-5
).
Circuit breakers are mounted in the following locations:
• Fuse junction box (Figure 3-1
)
• Engine junction box (Figure 3-2
or Figure 3-4)
• Cold weather package junction boxes (Figure 3-3
)
• MAX-ER junction box (Figure 3-4
)
• Power plant (Figure 3-5
)
Fuse Amps Wire No. Description of Items Protected
Circuit Breaker and Fuse Junction Box Located in Operator’s Cab
F2 15 8H Heater and A/C
F3 10 8W1 Front Wiper
F4 10 8W2 Overhead Wiper
F5 10 8F Defogger
F6 10 8X Container Handling
F7 10 8M Moisture Ejector
F8 15 8S Air/Hydraulic Solenoids
F9 5 8A Overhead Panel and LMI
F10 5 8D Computer Inputs
F11 5 8E Encoders
F12 5 8T Pressure Transducers
F13 15 8SR Jacking and Setup Remote
F14 20 5H Horn
F15 10 5D Cab Power
F16 3 87FA 10 VDC Regulated Power Supply
F17 15 5E Accessory Outlet
S1 50 CB-9 8P1 12 VDC to Programmable Controller
S2 30 CB-8 58 Air Conditioning and Accessory
2
6
8
4
0
8

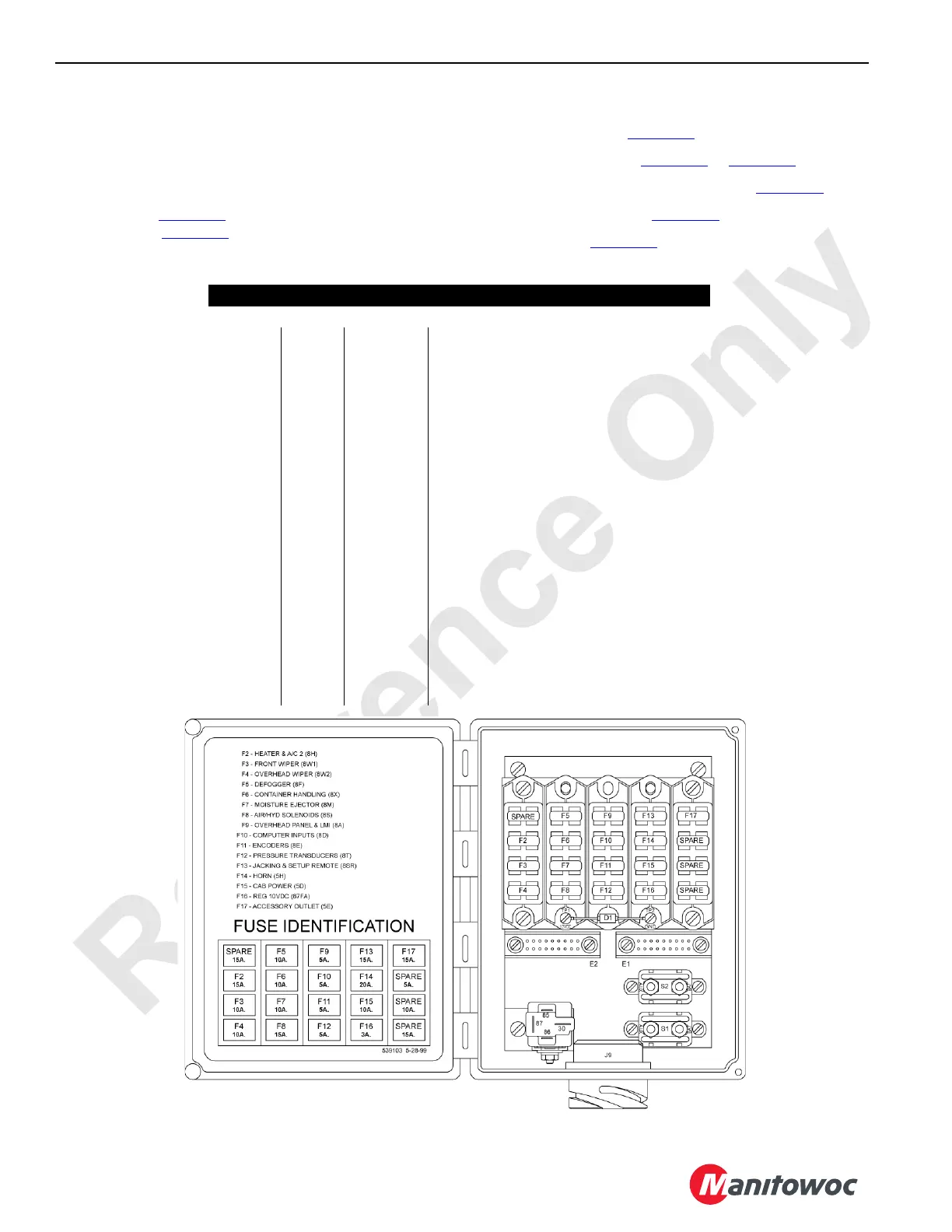

FIGURE 3-1
