Manitowoc 2250 - Identification and Location of Components

Reference Only
Manitowoc Published 07-19-16, Control # 249-01 1-5
2250 SERVICE/MAINTENANCE MANUAL INTRODUCTION
1
IDENTIFICATION AND LOCATION OF COMPONENTS
6
2
3
4
5
17
P889
P887
P891
11 10
9
8
16
15

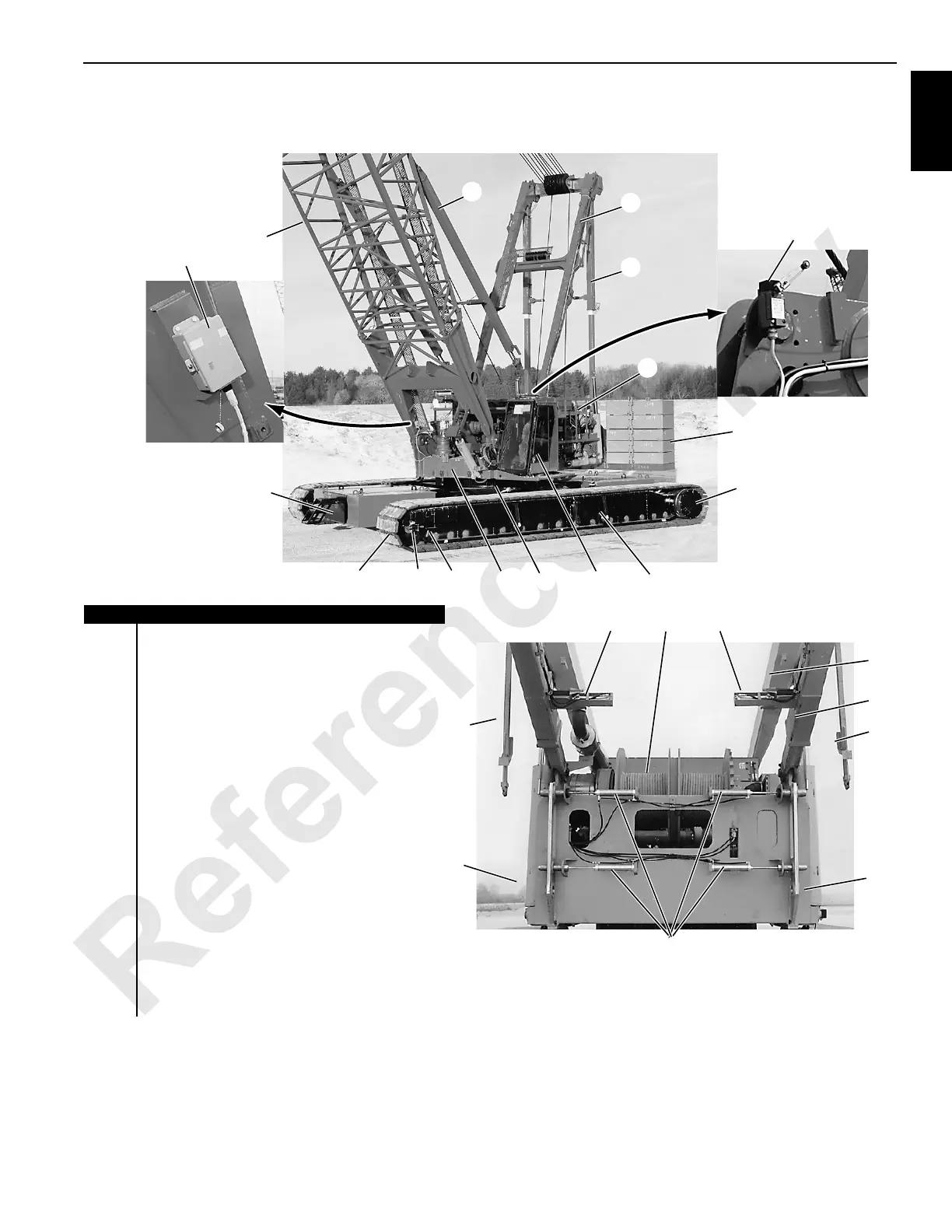

FIGURE 1-1
1
Item Description
1 #44 Heavy Lift Boom
2 Physical Air Cushioned Boom Stop (qty 2)
3 Gantry
4 Gantry Backhitch (telescopic) (qty 2)
5 Boom Stop Limit Switch
6 Rotating Bed
7 Upper Counterweight
8 Crawler Output Planetary with Drive Tumbler (qty 2)
9 Crawler (qty 2)
10 Operator’s Cab
11 Carbody
12 Adapter Frame
13 Crawler Intermediate Roller (qty 2)
14 Crawler Front Roller (qty 2)
15 Crawler Tread (qty 2)
16 Carbody Counterweight
17 Boom Angle Indicator Junction Box
18 Gantry Backhitch Cylinder (air)
19 Boom Hoist Drum (qty 2)
20 Counterweight Handling Link (qty 2)
21 Gantry Lifting Cylinder (hydraulic) (qty 2)
22 Counterweight Connecting Pin Cylinder (qty 4)
7
14
13
12
Rear View with Upper Counterweight Removed
Upper Counterweight Attached to the Crane with Items 22
P892
4
3
20
21
20
21
1818 19
22
