Manitowoc 2250 Service Maintenance Manual

Reference Only
Manitowoc Published 07-19-16, Control # 249-01 10-51
2250 SERVICE/MAINTENANCE MANUAL TROUBLESHOOTING
10

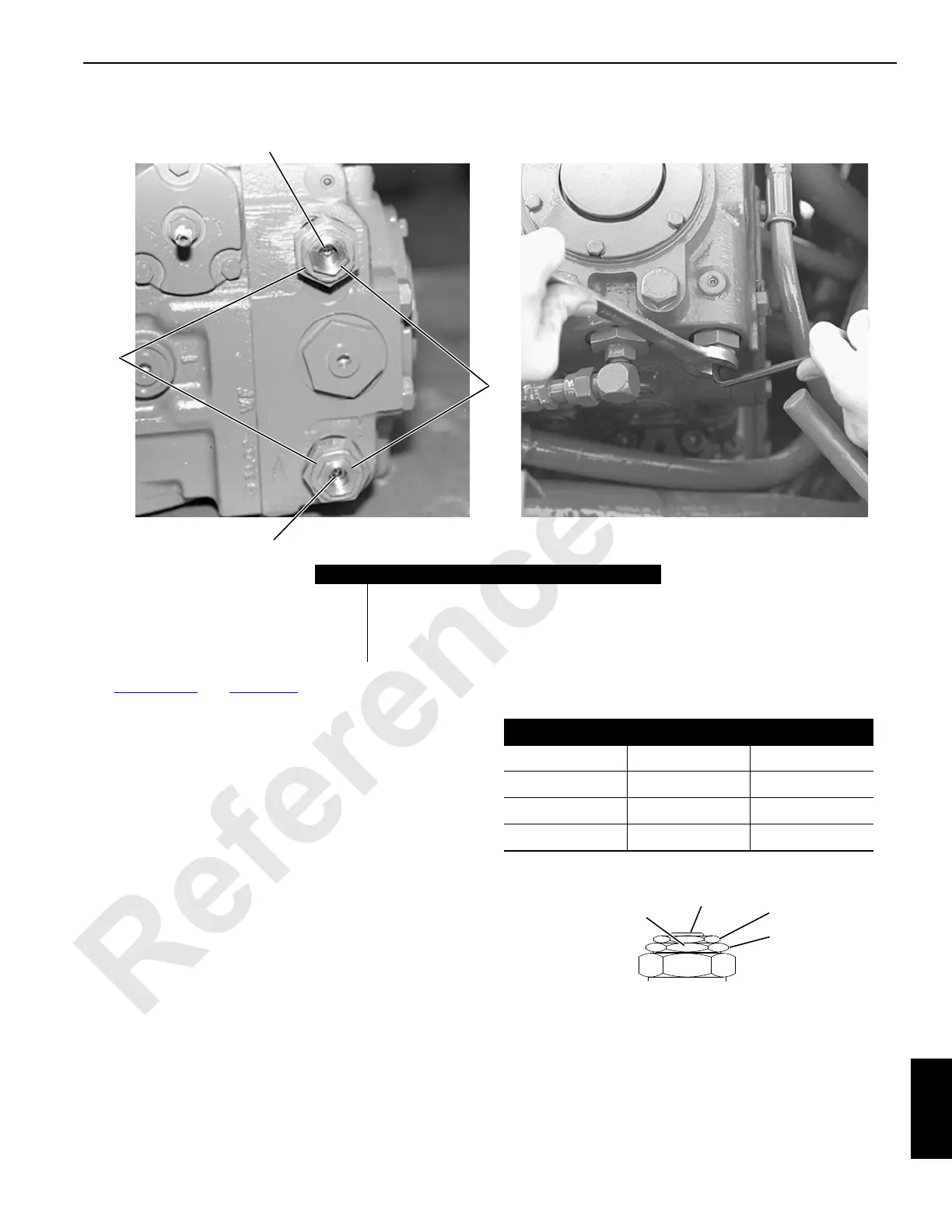

Test 17—Setting the Pump Pressure
See Figure 10-19 and Table 10-1 for the following.
To adjust the multifunction valve, perform the following
procedure.
1. Remove the protective cap from the multifunction valve
and loosen the lock nut (3).
2. Insert a hex wrench into the desired multifunction valve
adjusting screw.
Turning the adjusting screw clockwise will increase the
relief pressure.
Turning the adjusting screw counterclockwise will
decrease the relief pressure.
NOTE: The bypass hex nut (4) is for special applications
only and must not be rotated during setting of pump
pressure without first consulting the pump
manufacturer literature.
Table 10-1. Pump Port Control Function
P1537 P1533
1
2
3
4
FIGURE 10-19
Item Description
1 Multifunction Valve Adjusting Screw for Port A
2 Multifunction Valve Adjusting Screw for Port B
3 Lock Nut (qty 2)
4 Bypass Hex Nut (qty 2)
Pump Port A Port B
Travel Reverse Forward
Load Drum Hoist Lower
Boom Hoist Lower Hoist
Swing Left Right
FIGURE 10-20
Multi-Function Valve
Bypass Hex
Lock Nut
A1161
Adjusting
Screw (Inside)
Plastic
Cap
