TROUBLESHOOTING 2250 SERVICE/MAINTENANCE MANUAL
10-48
Published 07-19-16, Control # 249-01
Test 15—Checking System Voltage at the Hydraulic Valve Assemblies
P923
Left Side
1
2
3
4
1
1

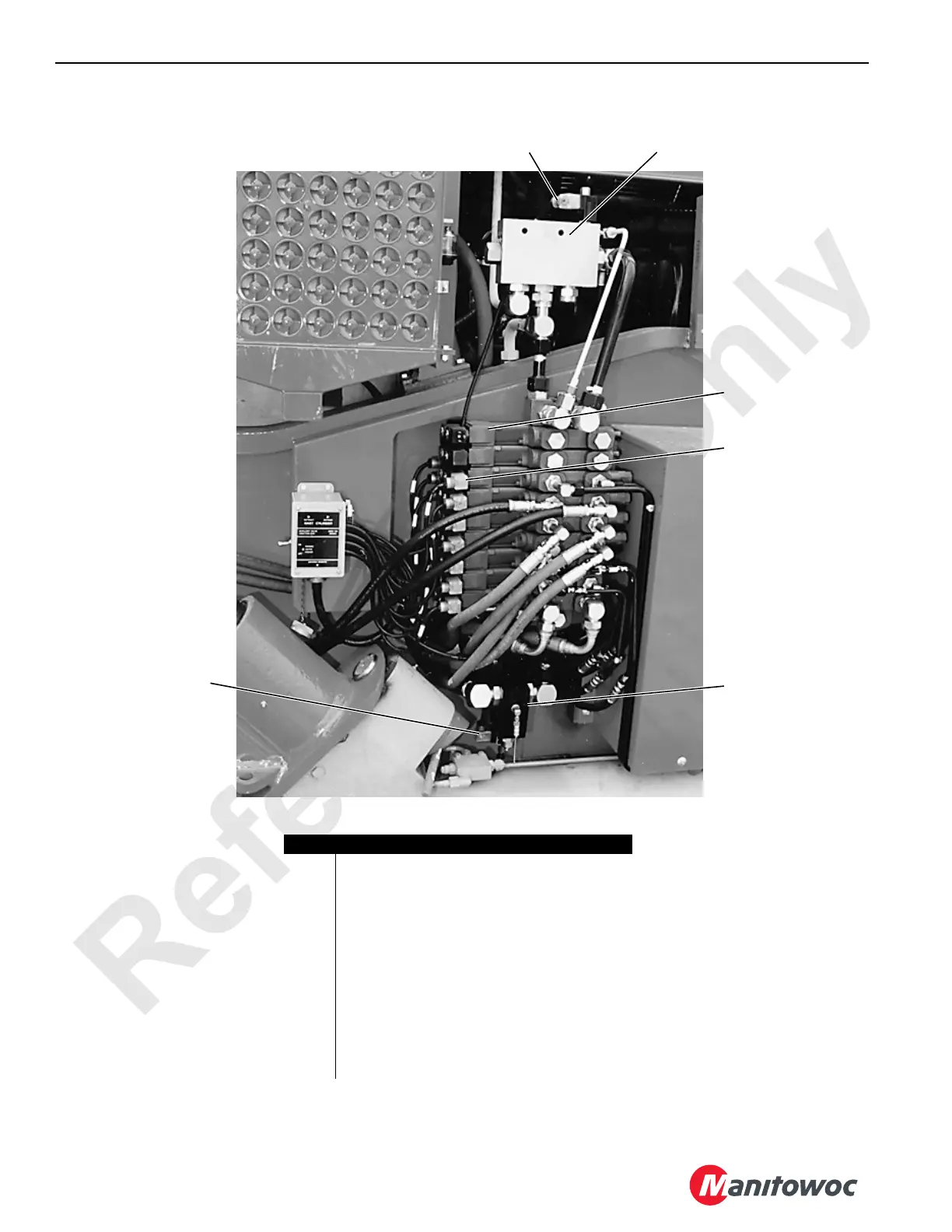

FIGURE 10-16
Item Description
1DIN Plug
2 Proportional Flow Control Valve
3 Upper Valve Assembly (top to bottom):
Spare
Spare
Right Front Jack Extend/Retract Solenoid Valve
Right Rear Jack Extend/Retract Solenoid Valve
Left Rear Jack Extend/Retract Solenoid Valve
Left Front Jack Extend/Retract Solenoid Valve
Front Frame Pins Extend/Retract Solenoid Valve
Rear Frame Pins Extend/Retract Solenoid Valve
Gantry Cylinders Extend/Retract Solenoid Valve
4 Auxiliary System Disable Valve
