HOISTS 2250 SERVICE/MAINTENANCE MANUAL
5-2
Published 07-19-16, Control # 249-01
Removing the Wire Rope
To remove the wire rope from a load drum, perform the
following procedure.
1. Land the load and lower the boom onto blocking at
ground level.
2. Pay out the wire rope from the load drum until the limit
switch stops the drum from turning.
3. Move the Limit Bypass switch to the BYPASS position
and hold it.
4. Operate the load drum in the LOWER direction to pay
out the remaining wire rope from the drum.

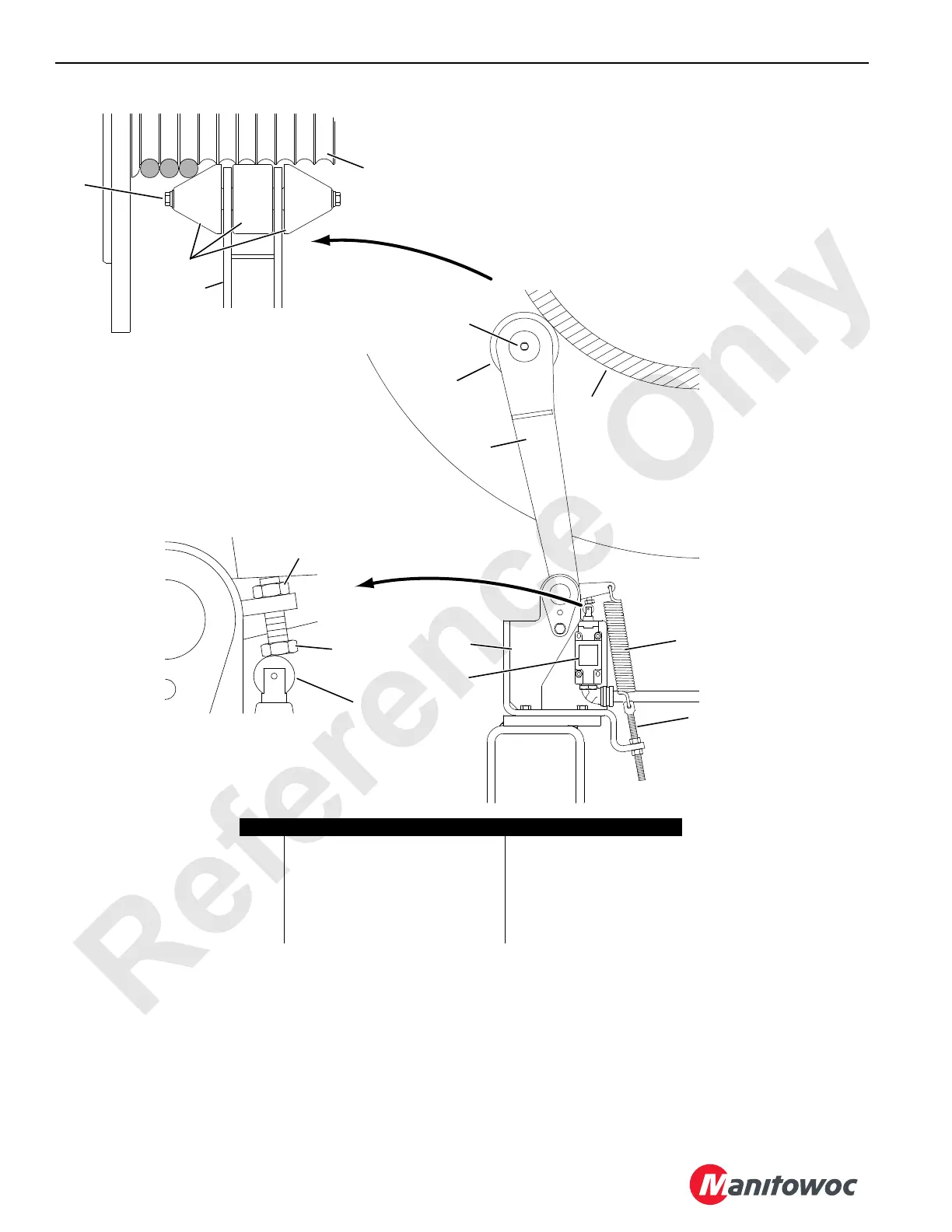

FIGURE 5-1
A03641
View at Right Rear Drum
(other drums similar)
Item Description Item Description
1 Bail Limit Lever 6a Limit Switch Roller
2 Roller (qty 3) 7 Lock Nut
3 Capscrew (qty 2) 8 Adjusting Screw
4 Drum 9 Return Spring
5 Mounting Bracket 10 Eyebolt
6 Limit Switch
A644
Three to Four Wraps of
Wire Rope on Drum
4
2
1
3
1
2
3
4
5
6
7
8
9
10
6a
