TROUBLESHOOTING 2250 SERVICE/MAINTENANCE MANUAL
10-44
Published 07-19-16, Control # 249-01
Test 11—Testing for Voltage at the Fuse Box
Use a digital multimeter for testing voltage at the fuse
block (1).
To test for volts DC at any given fuse socket, place the
positive lead on any metal fuse contact (2) and the negative
lead on the grounded fuse box chassis (6). Repeat this
procedure using the other fuse contact as a test point. All
fuse sockets except F16 (3A, 10V) should be 12 volts DC.
To determine if the K1 cab power relay (7) is fully functional,
ground the fuse box chassis and check for 12 volts DC at
relay wire 8 when the relay is enabled. Also check for 12
volts constant at relay wire 5A.
10A
10A15A
10A
10A
15A
5A
5A
5A
20A
10A
3A 15A
10A
5A
15A15A5A10A15A
85
30
86
87
SPARE
539103 5-28-99
F2 - HEATER & A/C 2 (8H)
F5 - DEFOGGER (8F)
F13 - JACKING & SETUP REMOTE (8SR)
F12 - PRESSURE TRANSDUCERS (8T)
F11 - ENCODERS (8E)
F10 - COMPUTER INPUTS (8D)
F9 - OVERHEAD PANEL & RCL (8A)
F8 - AIR/HYD SOLENOIDS (8S)
F7 - MOISTURE EJECTOR (8M)
F6 - CONTAINER HANDLING (8X)
F4 - OVERHEAD WIPER (8W2)
F3 - FRONT WIPER (8W1)
F16 - REG 10VDC (87FA)
F17 - ACCESSORY OUTLET (5E)
SPARE
SPARE
SPARE
7F1
F15 - CAB POWER (5D)
F14 - HORN (5H)
F
F
F
FF
F
F
F
2
3
4
5
6
7
8
9
01F
F1
1FF1
1F
F1
1F
1
2
3
4
5
6
FUSE IDENTIFICATION
SPARE
SPARE
SPARE
SPARE
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
TP2
GND
TP1
12VDC
AUX
BAT
D1
BAT
AUX
F17
E2 E1
S2
S1
J9
A1188
1
2
3
4
5
6
7

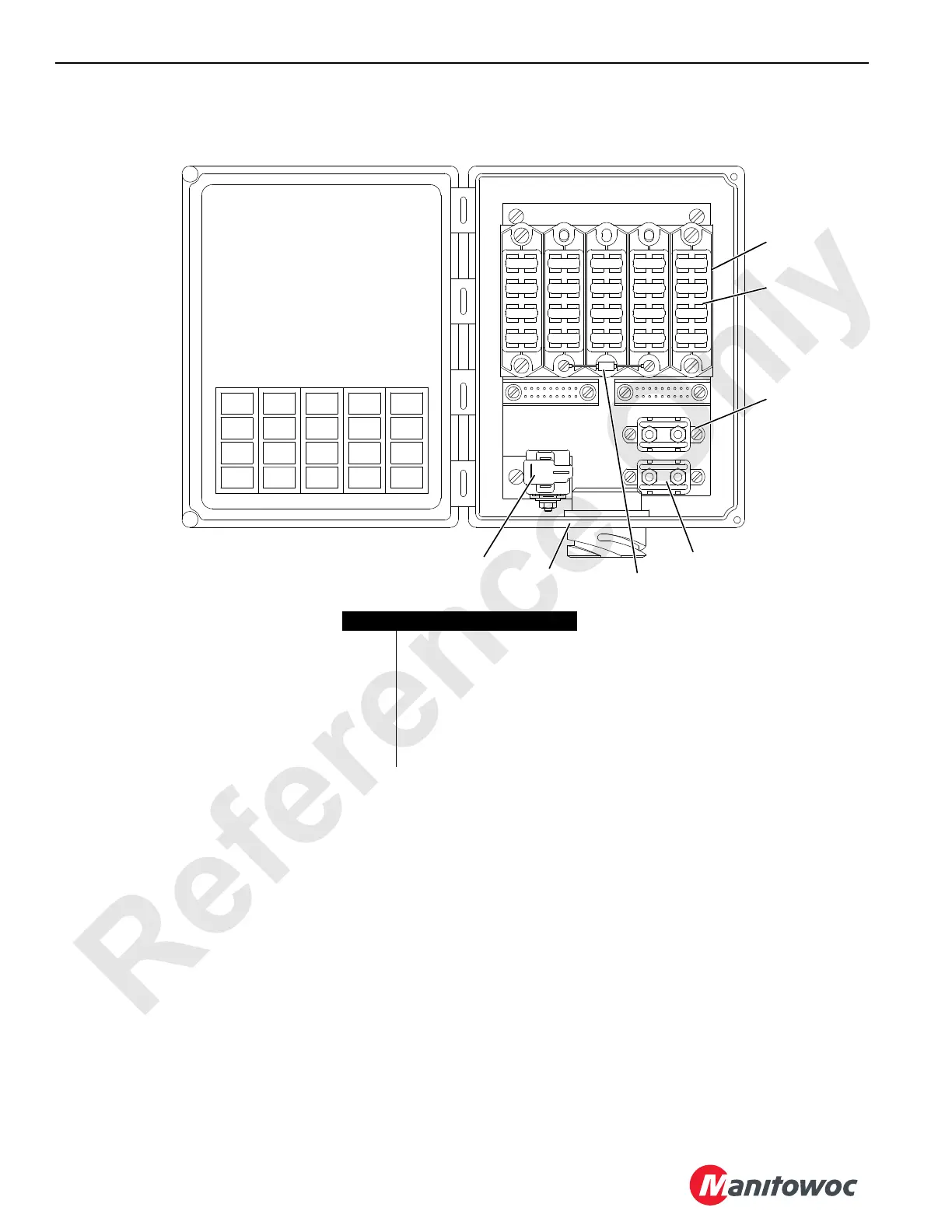

FIGURE 10-12
Item Description
1 Fuse Block
2 Metal Fuse Contact
3 Air Conditioner CB (40 amp)
4 Controller CB (50 amp)
5 Transient Suppressor Diode
6 Fuse Box Chassis
7 K1 Cab Power Relay
