ELECTRICAL SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-6
Published 07-19-16, Control # 249-01
Fuse Amps Wire No. Description of Items Protected
Inline Fuses for TCU Harness Located at Battery Terminals
F18 10 6C Master Node 24VDC Supply
F19 5 P15-24 TCU 24VDC Supply
F19
F18
F19
8
1
0
1
4
1
9
5
81011979

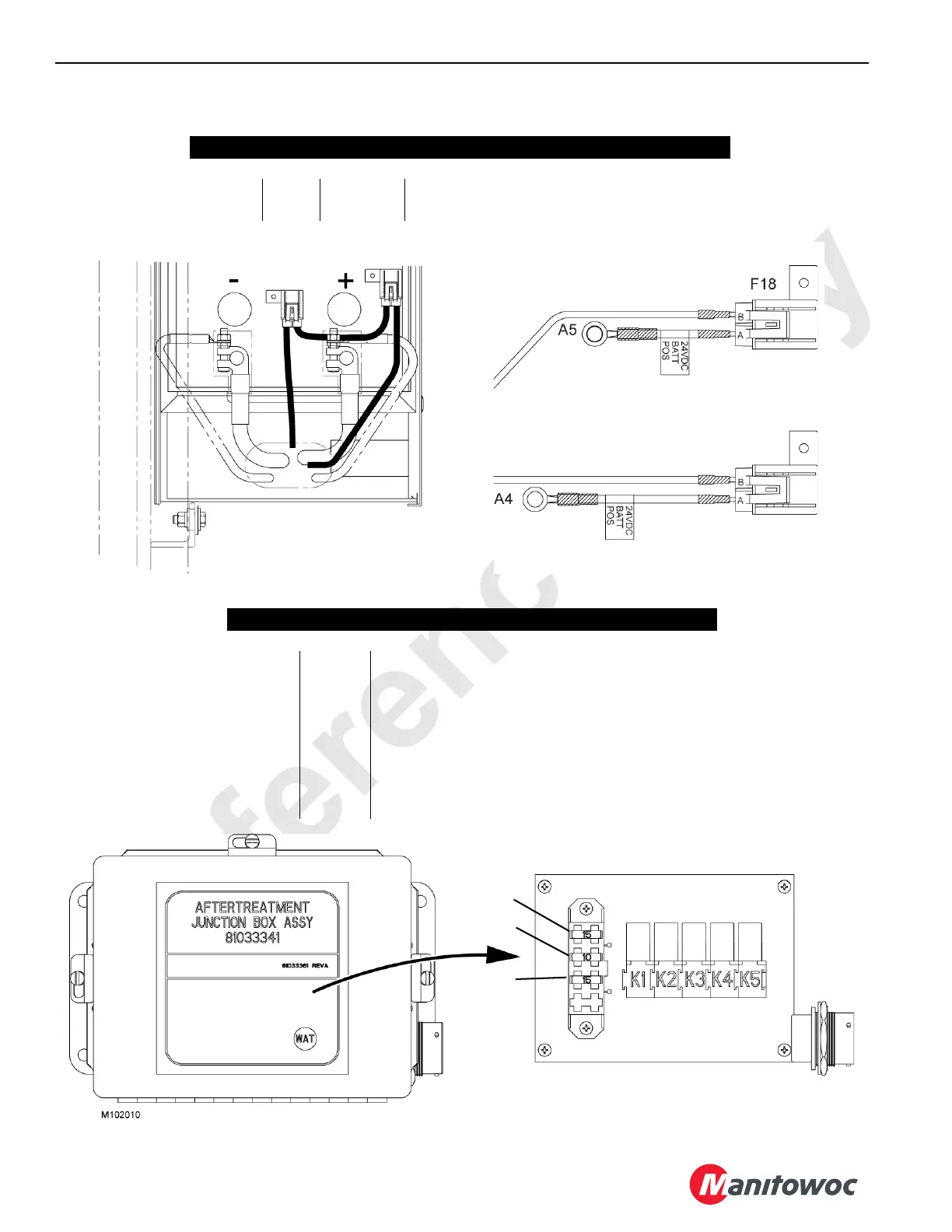

FIGURE 3-5
Fuse Amps Description of Items Protected
Aftertreatment Junction Box Enclosure
F5 15 Diesel Exhaust Fluid (DEF) Supply Module
F6 10 Aftertreatment Sensors
F7 15 Diesel Exhaust Fluid (DEF) Heaters
K1 10 Diesel Exhaust Fluid (DEF) Pressure Hose Heater
K2 10 Diesel Exhaust Fluid (DEF) Return Hose Heater
K3 10 Diesel Exhaust Fluid (DEF) Suction Hose Heater
K4 10 Diesel Exhaust Fluid (DEF) Supply Module
K5 10 Aftertreatment Sensors
F5
F6
F7
