ELECTRICAL SYSTEM 2250 SERVICE/MAINTENANCE MANUAL
3-4
Published 07-19-16, Control # 249-01
Circuit
Breaker
Amps Description of Items Protected
Cold Weather Package Circuit Breakers
1 50 Cold Weather Package Main Load Center Circuit Breaker
2 20 Engine Coolant Heater
3 15 Control Console and Treadle Valve Heaters
4 15 Hydraulic Reservoir, Engine Oil, and Battery Pad Heaters
5 10 Air Dryer
6 15 Moisture Ejector
7 25 Air Dryer and Moisture Ejector Junction Box Main Breaker
1
2
3
4

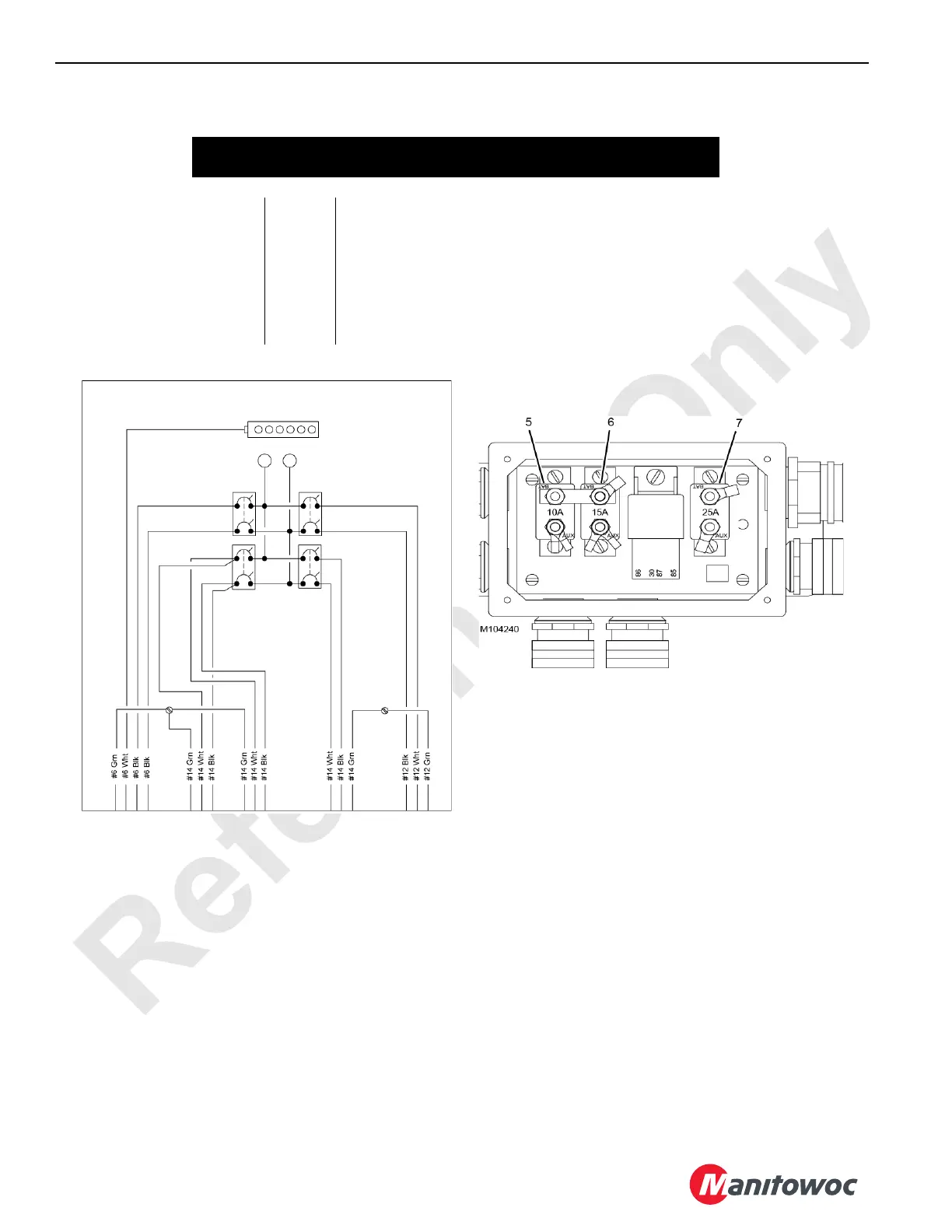

Circuit Breaker Load Center
81004291_1
Air Dryer and Moisture Ejector Junction Box
FIGURE 3-3
