Manitowoc Published 07-19-16, Control # 249-01 5-11

2250 SERVICE/MAINTENANCE MANUAL HOISTS

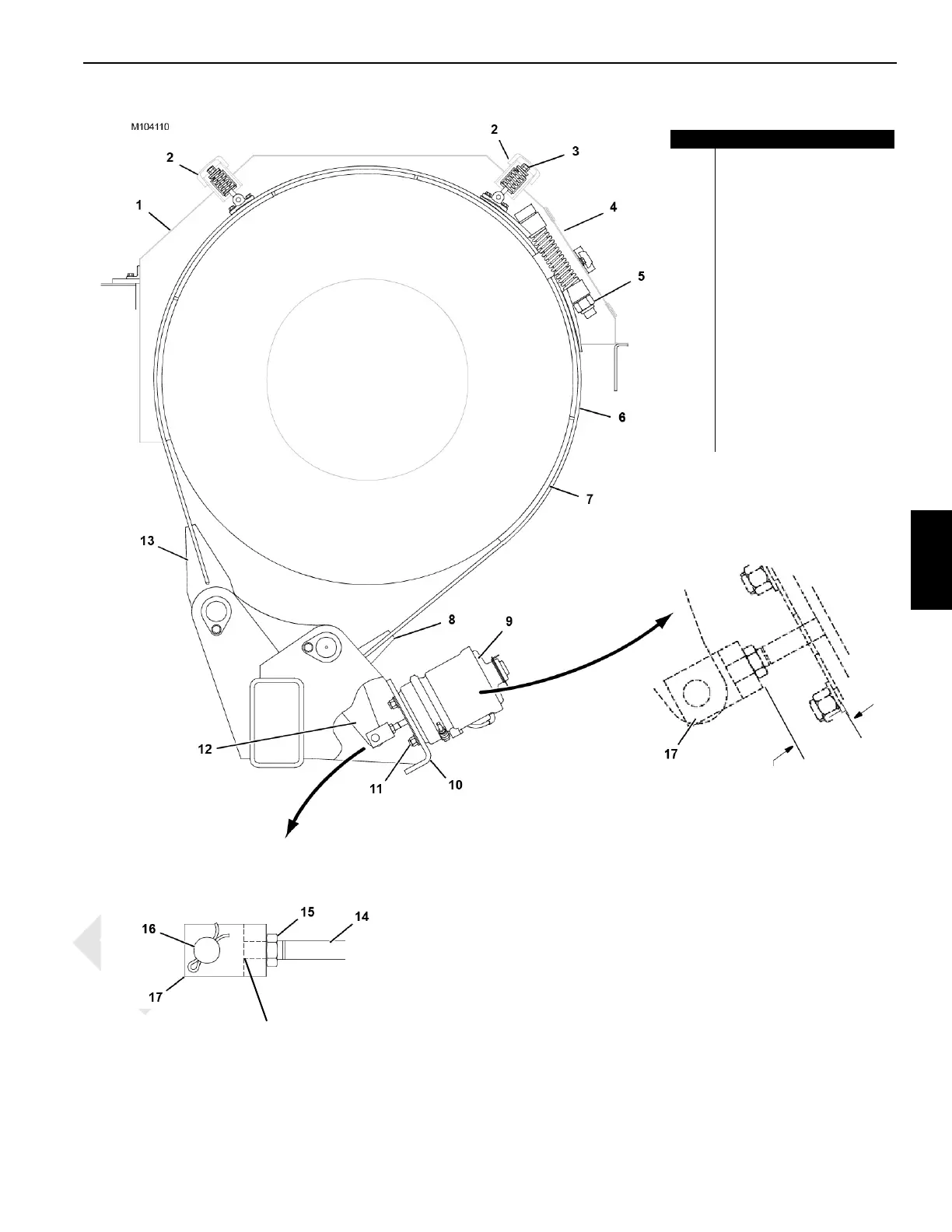

Left Rear Drum Brake

(all other drum brakes similar)

FIGURE 5-8

End of Piston Rod Must Be Flush

with Inside of Rod End

View B

(typical rod end)

Item Description

1Guard

2 Band Support (qty 2)

3 Jam Nut and Adjusting Nut

4 Access Cover

5 Band Adjusting Nut

6Brake Band

7 Lining (qty 6)

8Live End

9 Brake Actuator

10 Mounting Bracket

11 Mounting Nut (qty 2)

12 Brake Lever

13 Dead End

14 Piston Rod

15 Jam Nut

16 Rod End Pin

17 Rod End

View A

51 to 63 mm (2 to 2-1/2 in)

Working Brake Released

Park Brake Applied
