Manitowoc Published 07-19-16, Control # 249-01 5-35
2250 SERVICE/MAINTENANCE MANUAL HOISTS
5
12. Verify that each hook has a hook latch and that the hook
latch operates properly. The latch must not be wired
open or removed.
WARNING
Falling Load Hazard!
To prevent the load from dropping, the hook latch must
retain the slings or other rigging in the hook under slack
conditions.
The hook latch is not intended as an anti-fouling device,
and caution must be taken to prevent the hook latch from
supporting any part of the load.
Slings or other rigging must be seated in the hook when
handling a load. They must never be in position to foul the
hook latch.

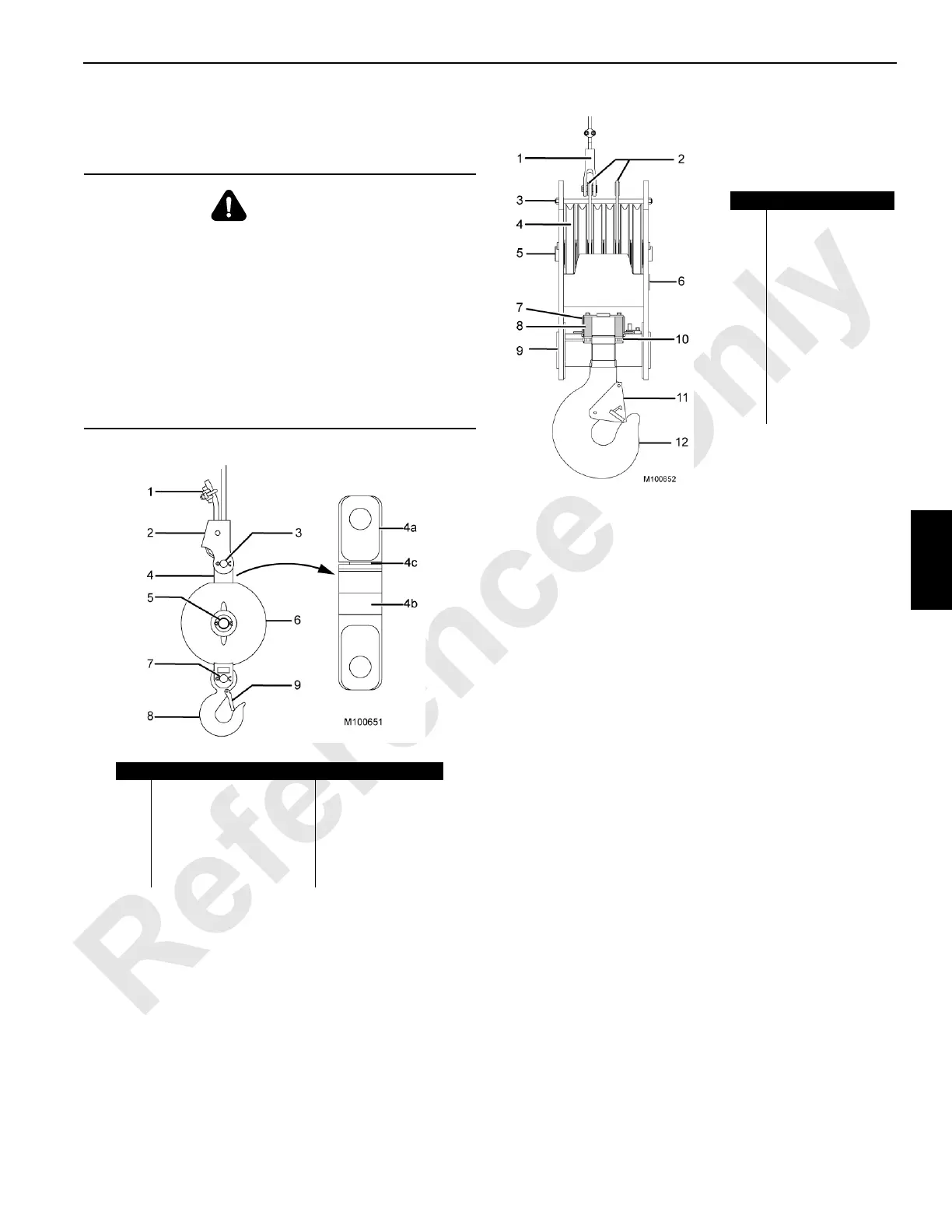

FIGURE 5-34
Item Description Item Description
1 Dead-End Clip 4c Check Gap Here
2 Socket and Wedge 5 Bolt or Pin
3 Bolt or Pin 6 Weight Ball
4 Swivel 7 Bolt or Pin
4a Swivel Shank 8 Hook
4b Swivel Barrel 9 Latch
FIGURE 5-35
Item Description
1 Socket and Wedge
2 Center Plate (qty 2)
3Tie-Bolt
4 Sheave (qty varies)
5 Sheave Shaft
6 Name Plate
7 Locking Cap
8 Hook Nut
9 Trunnion
10 Thrust Bearing
11 Latch
12 Hook
