Manitowoc 2250 Service Maintenance Manual

Reference Only
Manitowoc Published 07-19-16, Control # 249-01 7-7
2250 SERVICE/MAINTENANCE MANUAL POWER TRAIN
7

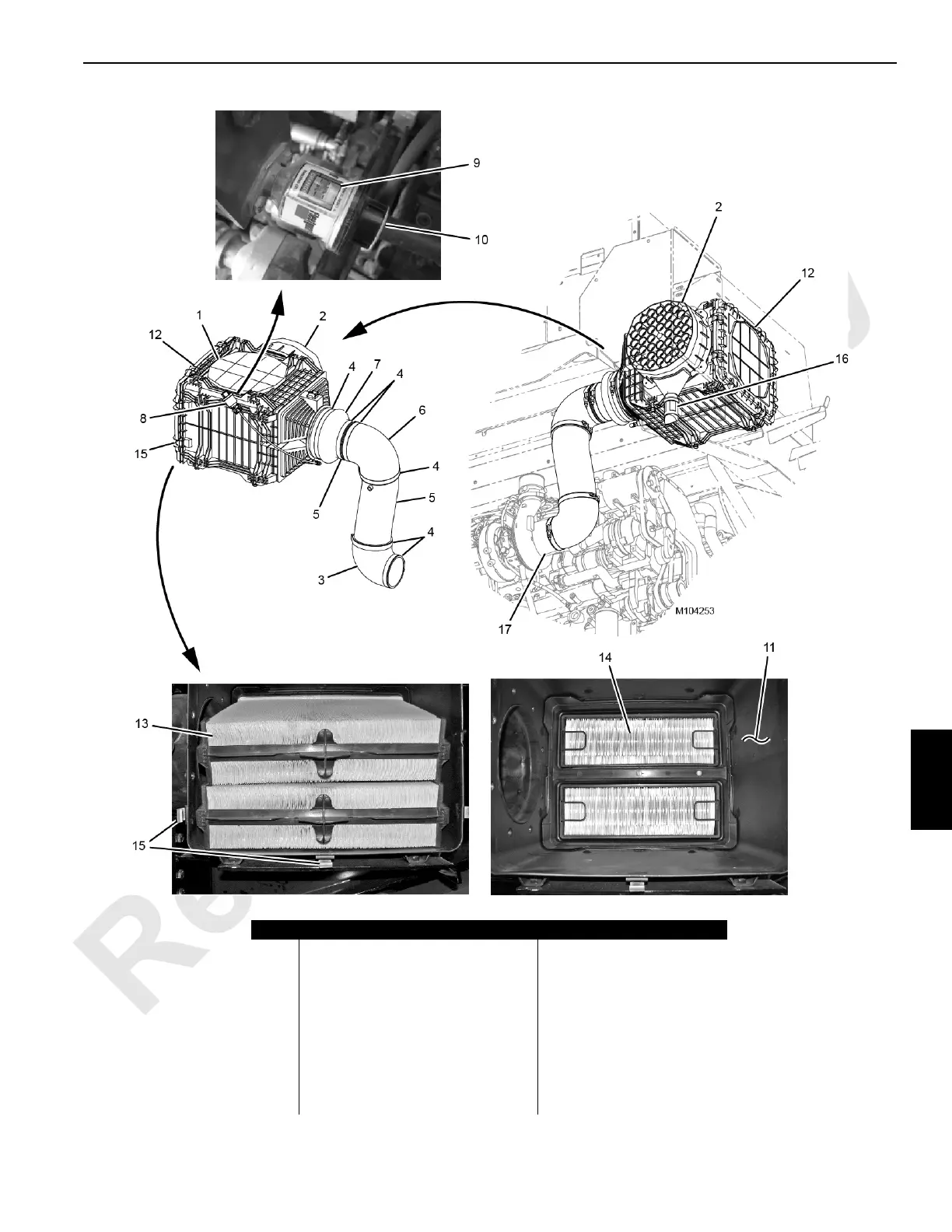

FIGURE 7-4
Item Description Item Description
1 Air Cleaner 10 Reset Button
2 Intake/Pre-Cleaner 11 Housing
3 Rubber Elbow Reducer (qty 2) 12 Service Cover
4 Clamp (qty 6) 13 Primary Filter (qty 2)
5 Steel Tube (qty 2) 14 Secondary Filter (qty 2)
6 Rubber Elbow 15 Latch (qty 6)
7 Rubber Reducer 16 Dust Ejector
8 Service Indicator 17 Engine Air Intake
9 Indicator Window
