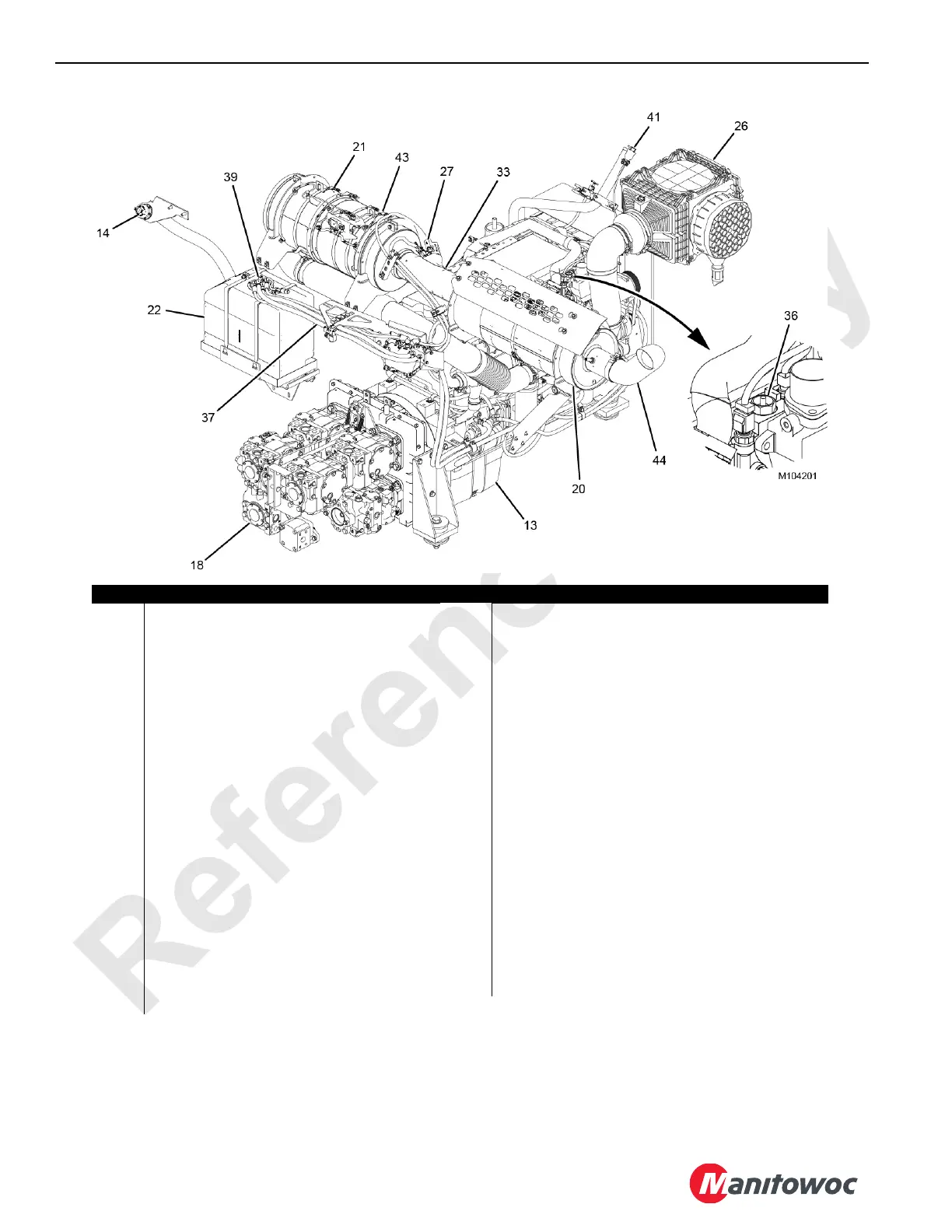

FIGURE 1-8 continued
Item Description Item Description
1 Diagnostic Gauge Coupler (typical each sender) 24 Engine Starter (qty 2)
2 Right Travel Pressure Sender 25 Alternator
3 Spares 26 Air Cleaner
4 Boom Hoist Pressure Sender 27 Diesel Exhaust Fluid (DEF) Dosing Unit
5 Load Drum System Pressure Sender 28 Engine Oil Pressure Switch
6 Load Drum Charge Pressure Sender 29 Engine Oil Pressure Sender
7 Swing Right “B” Pressure Sender 30 Engine Oil Pressure Switch
8 Swing Left “A” Pressure Sender 31 Ground Point
9 Left Travel Pressure Sender 32 Engine Block Heater (1500 W 120 V with extension cord)
10 Pump Control Junction Box 33 Decomposition Tube
11 Battery Box 34 Fuel Filter
12 Variable Geometry Turbocharger (VGT) 35 Engine Coolant Temperature Switch
13 Engine Oil Pan 36 Engine Coolant Temperature Switch Sender
14 Diesel Exhaust Fluid (DEF) Tank Fill Cap 37 Diesel Exhaust Fluid (DEF) Fluid Lines
15 Engine Controller Node 38 Engine Cooler
16 Air Conditioner Compressor 39 Diesel Exhaust Fluid (DEF) Pump
17 Air System Compressor 40 Hydraulic Fan Motor (qty 2)
18 Drive Pump Assembly 41 Air Cleaner Service Indicator
19 Air Intake Shroud 42 Cooling System Hydraulic Variable-Speed Fan (qty 2)
20 Selective Catalyst Reduction (SCR) Catalyst 43 Diesel Particulate Filter (DPF)
21 Diesel Oxidation Catalyst (DOC) 44 Exhaust
22 Diesel Exhaust Fluid (DEF) Tank 45 Cooling System Surge Tank
23 Pump Drive
To Next Page
