0850/0850-T1 User Manual
Matrix Machine Tool (Coventry) Limited 140 / 231
Tool Offset(axial)
Input range: -50 to 50 mm

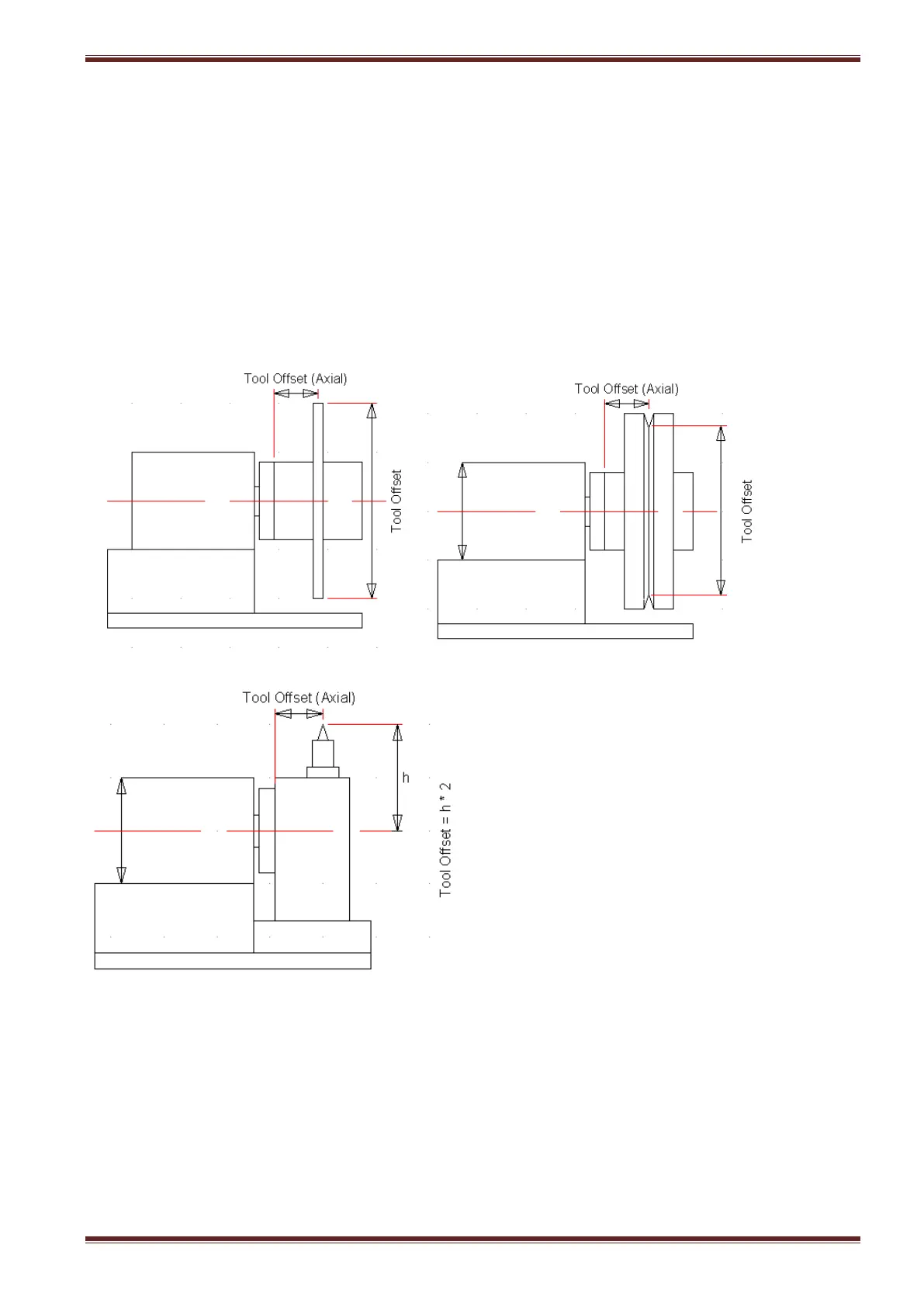

Distance from the dresser datum face to the diamond media centreline (see sketch below).
Tool Offset
Input range: 0 to 150 mm
For a diamond disc this is the peripheral diameter of the disc.
For a diamond roll this is the profile diameter at the root.
For a single point diamond this is the 2x radial distance from dressing spindle centreline to the
diamond tip.
Diamond roll
Diamond disc
Single point diamond
