25.2.7 Checking for normal monitoring

1 Read the bar code

Read the bar code with a bar code reader and check that the read data are written into the PLC CPU.

Section 25.4 System Configuration Examples

2 Check for errors occurring on the GOT.

Presetting the system alarm to project data allows you to identify errors occurred on the GOT, PLC

CPU, servo amplifier and communications.

For details on the system alarm, refer to the following manual.

GT User’s Manual (When using GT15)

Advanced alarm popup display

With the advanced alarm popup display function, alarms are displayed as a popup

display regardless of whether an alarm display object is placed on the screen or not

(regardless of the display screen).

Since comments can be flown from right to left, even a long comment can be

displayed all.

For details of the advanced popup display, refer to the following manual.

GT Designer2 Version Screen Design Manual

All settings related to communications are complete now.

Create screens on GT Designer2 and download the project data again.

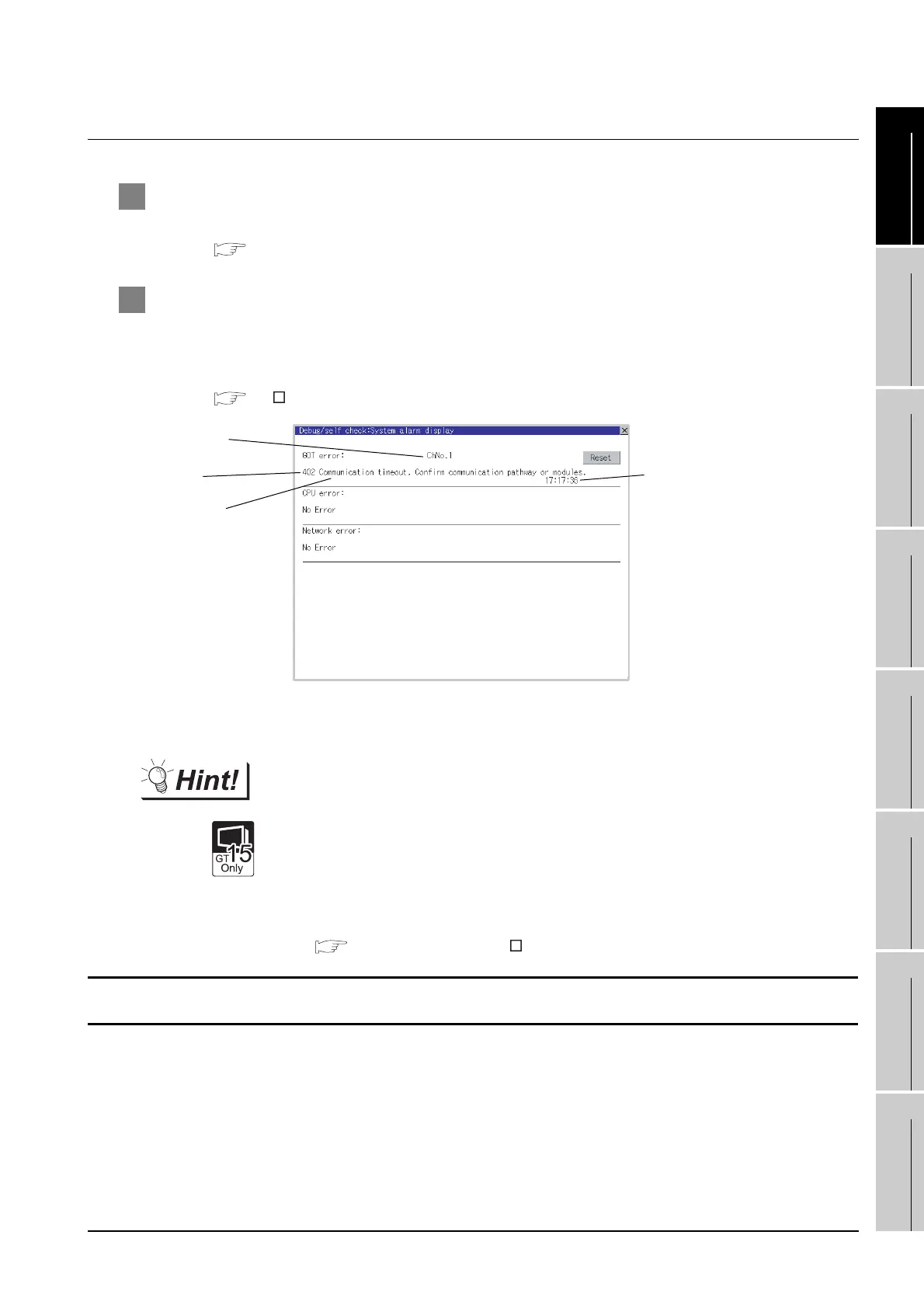

Error code

Communication

Channel No.

Error message

Time of occurrence

(Displayed only for errors)
