25.4 System Configuration Examples
5 Confirmation on PLC side
Connect GX Developer to the QCPU (Q-mode) and check if the data, which has been read with the bar
code reader, are written in D0 to D5.
For GX Developer operations, refer to the following manual.
GX Developer Version Operating Manual

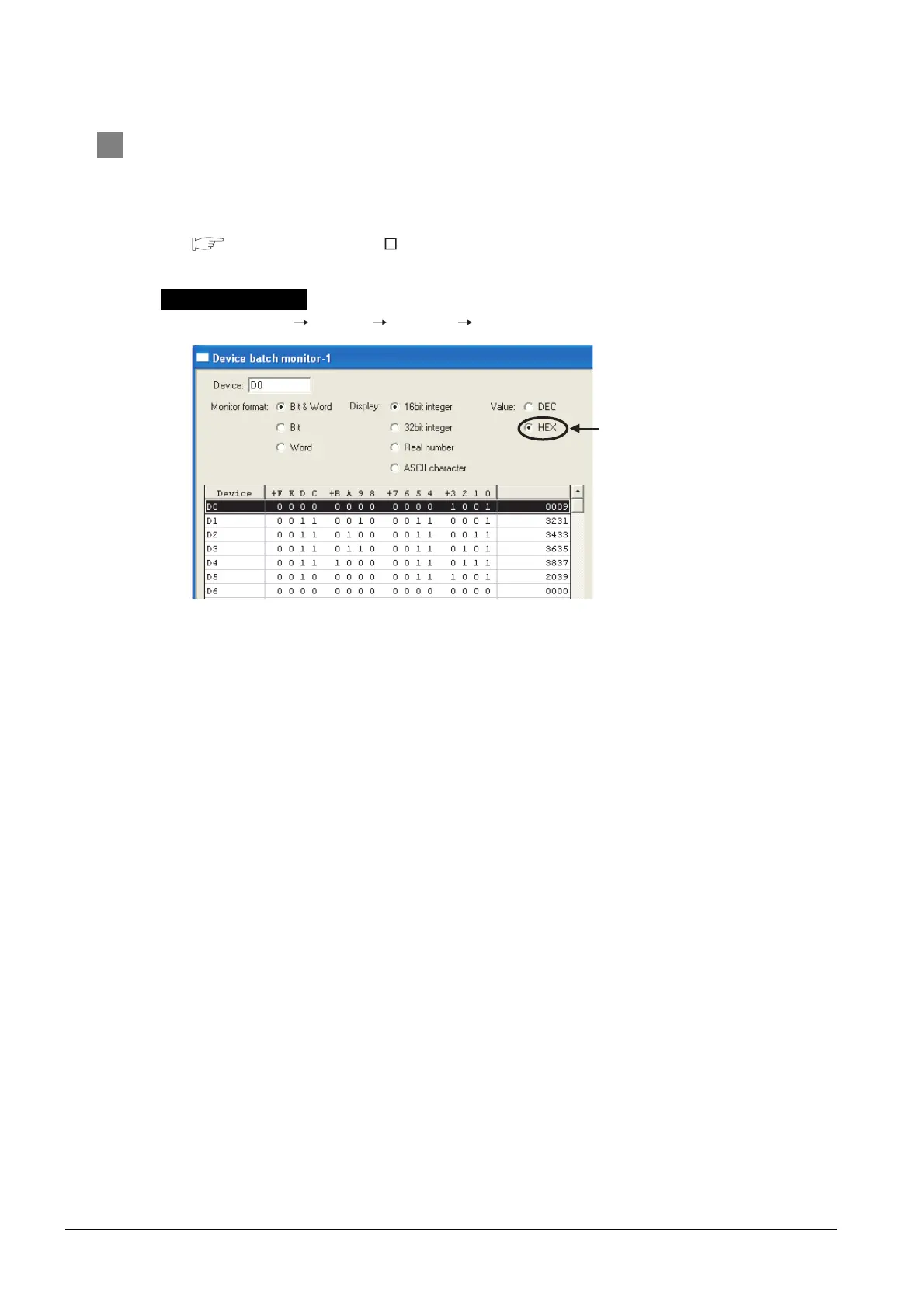

(1) Confirming the device values of D0 to D5 (when using GX Developer Version 8)
GX Developer [Online] [Monitor] [Device batch]
Starting procedure
ASCII codes are hexadecimals.
Specify [HEX] for [Value] of the GX
Developer and confirm the read data.
