29.2 System Configuration
29.2.2 FR Configurator

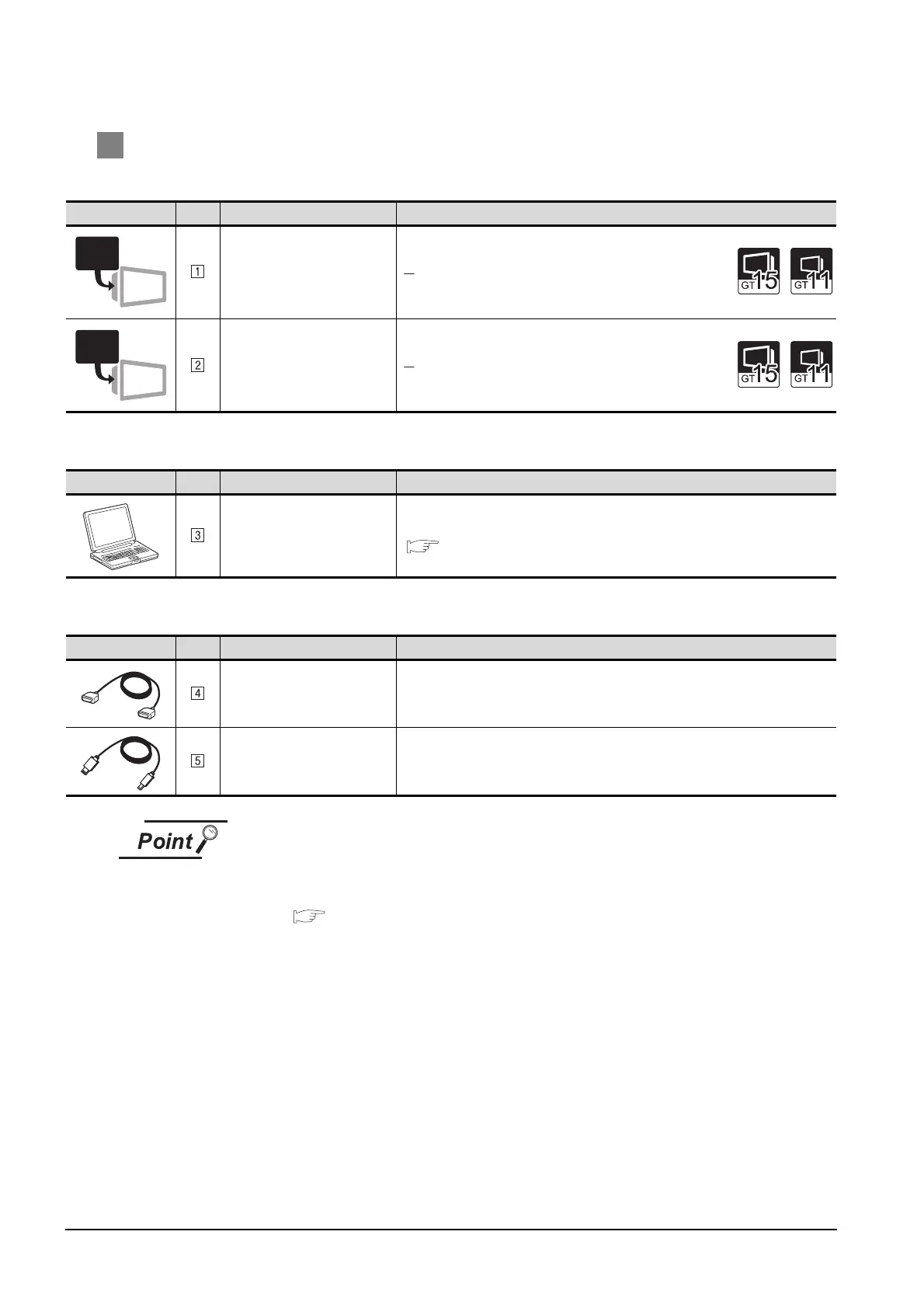

2 System equipment
(1) GOT
(2) PC
(3) Cable
System configuration between GOT and Mitsubishi inverter
For details on the system configuration between GOT and Mitsubishi inverter, refer
to the following.
Chapter 23 INVERTER CONNECTION
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
USB interface
• For USB communication
(Built into GOT)
Image No. Name Model name
PC
For compatible software refer to the following.
( Section 29.3 Compatible Software)
Image No Name Model name
RS-232 cable GT01-C30R2-9S(3m)
USB cable GT09-C20USB-5P(2m)
RS-232
USB
