30.1 System Configuration
30.1 System Configuration
Select a system configuration suitable for your application.
Conventions used in this section
Numbers (e.g. ) of System configuration and connection conditions correspond
to the numbers (e.g. ) of System equipment.
Use these numbers as references when confirming models and applications.

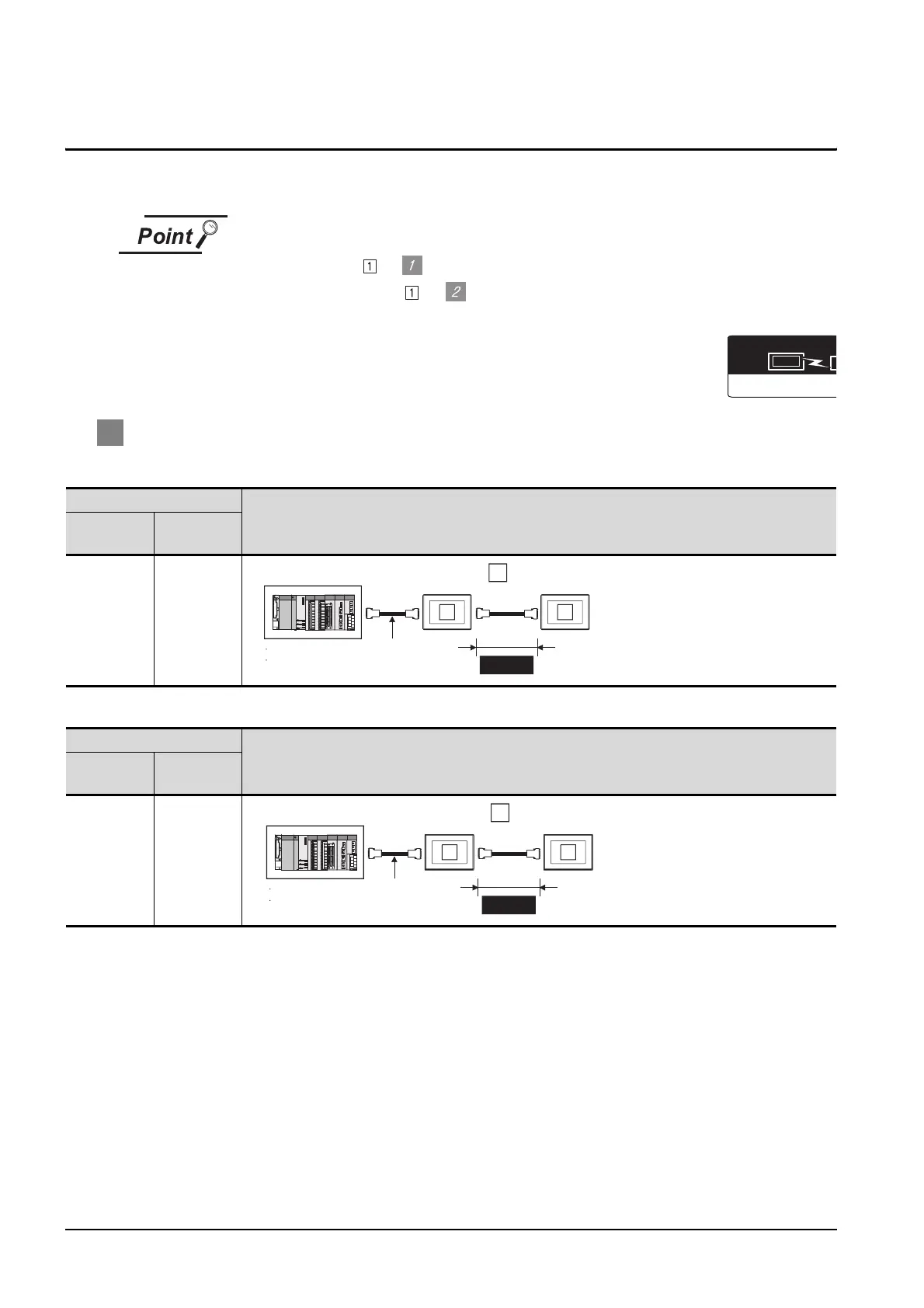

1 System configuration and connection conditions
(1) Connecting first GOT to MITSUBISHI PLC via RS-232 interface
(2) Connecting first GOT to MITSUBISHI PLC via RS-422 interface
Connection conditions
System configuration
Number of
GOTs
Distance
2 (max.)
(See the right
column.)
Connection conditions
System configuration
Number of
GOTs
Distance
2 (max.)
(See the right
column.)
Communication
A/QnA/QCPU,QJ71C24,
M
1 1
Computer link
connection
Direct CPU connection
RS-422
cable
MAX30m
2
Connect to RS-232
interface of GT11.
1 1
MAX15m
RS-232
cable
3
1 1
Connect to RS-422
interface of GT11.
Computer link
connection
Direct CPU connection

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
