5.2 Preparatory Procedures for Monitoring
5.2.5 Attaching communication unit and connecting cable
Precautions for soldering
Note the following precautions when soldering the internal conductor and contact.
• Make sure that the solder does not bead up at the soldered section.
• Make sure there are no gaps between the connector and cable insulator or they do
not cut into each other.
• Perform soldering quickly so the insulation material does not become deformed.

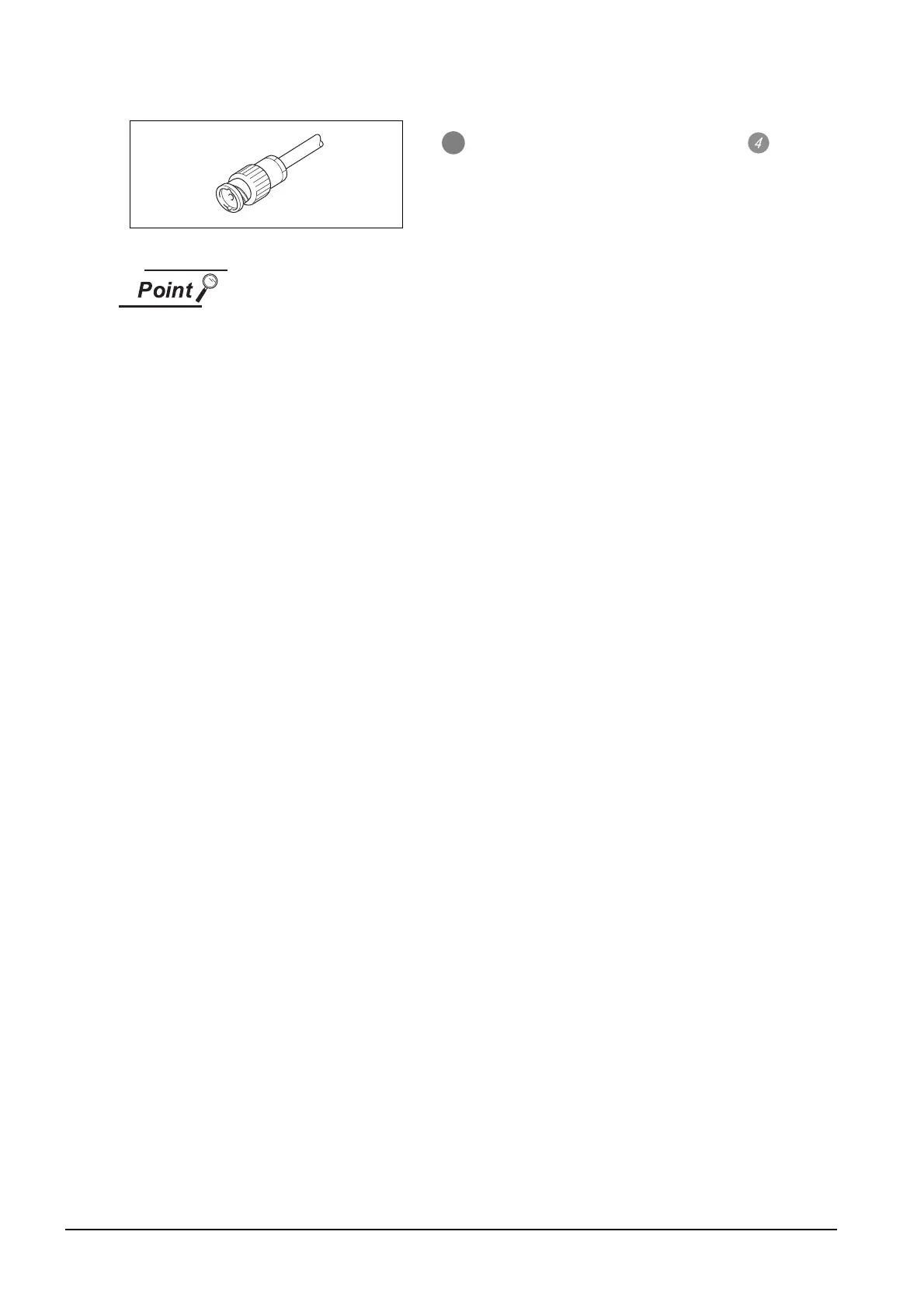

5 Insert the connector assembly shown in into the
plug shell and screw the nut into the plug shell.
