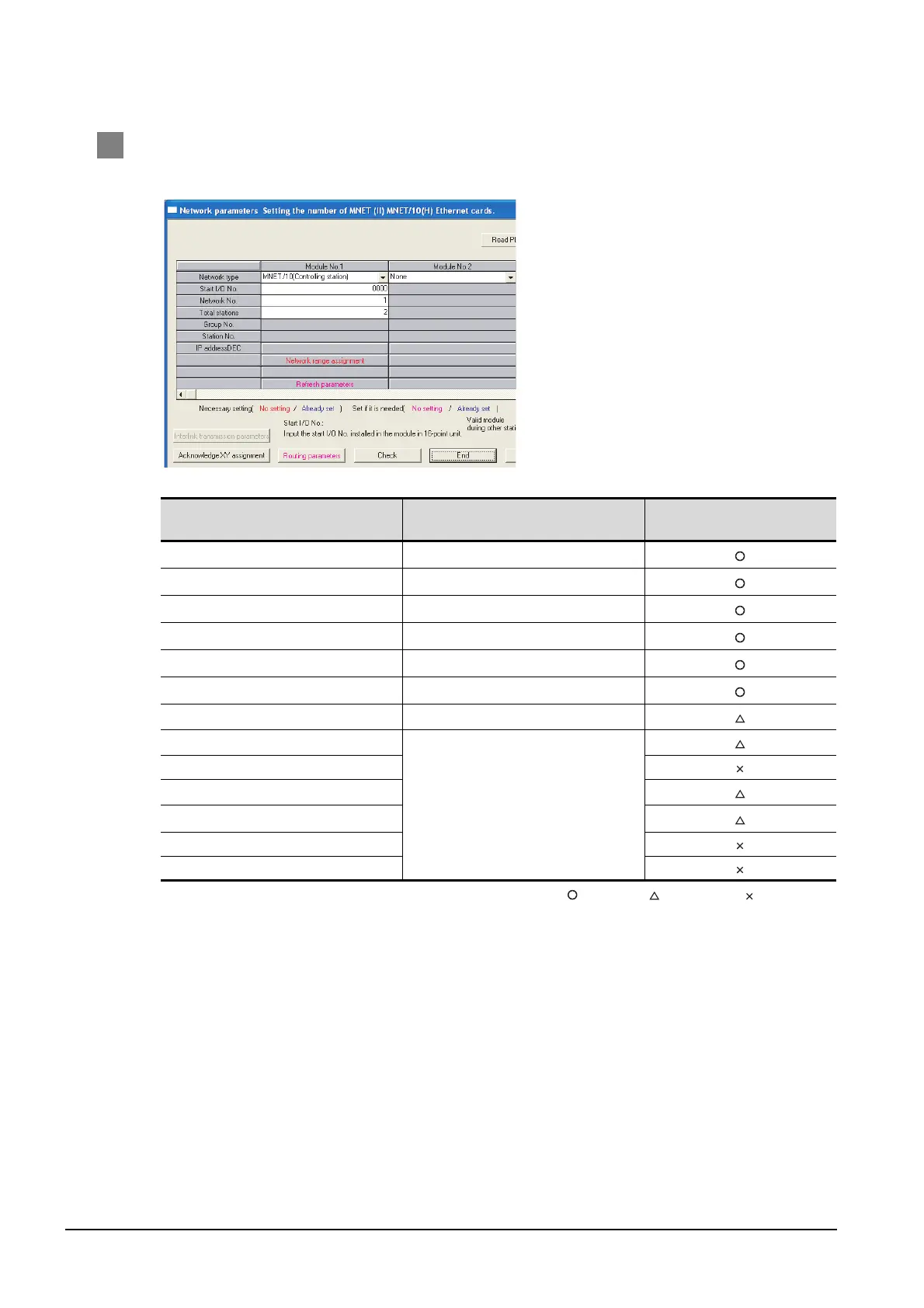

5.3 PLC Side Setting
5.3.1 Connecting to MELSECNET/H network module
3 [Network parameter] of GX Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
*1 Set the same network No. as that of the GOT.
*2 Set it when the MELSECNET/H network module is used in the redundant QnPRHCPU system.
Item Setting
Setting necessity at GOT
connection
Network type MNET/10 mode (Control station) (fixed)
Starting I/O No. 0000H
Network No.
*1
1
Total stations 2
Group No. 0 (fixed)
Mode Online (fixed)
Network range assignment Refer to (2)
Refresh parameters
(Use default value)
Interrupt settings
Control station return setting
Redundant settings
*2
Interlink transmission parameters
Routing parameters
