5.3 PLC Side Setting
5.3.2 Connecting to MELSECNET/10 network module (QnA Series)
5 - 33
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION

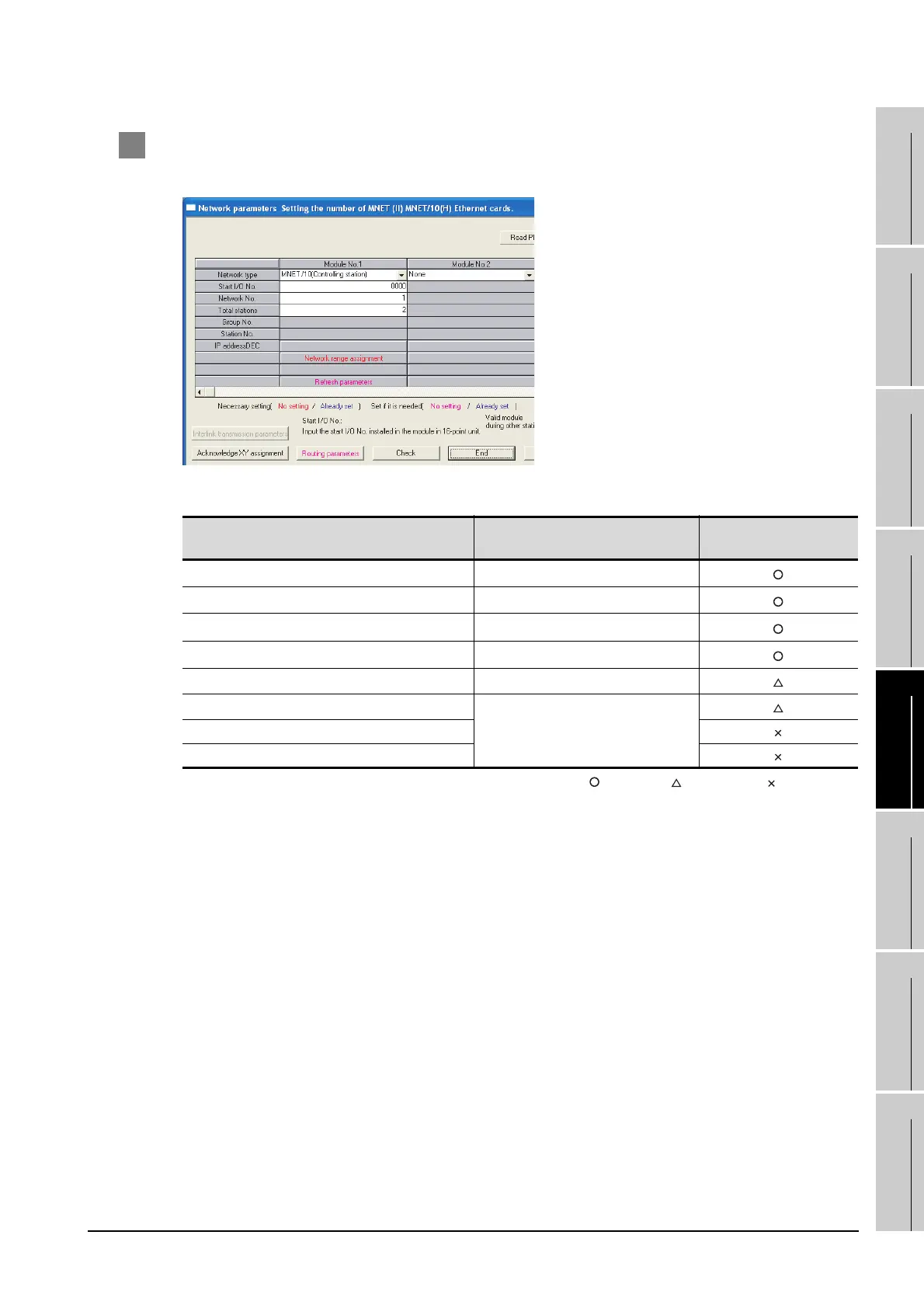

3 [Network parameter] of GX Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
*1 Specify the same network No. as that of the network number setting switch of the MELSECNET/10 network
module.
Item Setting
Setting necessity at GOT
connection
Network type MNET/10 (Controlling station) (fixed)
Start I/O No. 0000H
Network No.
*1
1
Total stations 2
Network range assignment Refer to (2)
Refresh parameters
(Use default value)
Interlink transmission parameters
Routing parameters
