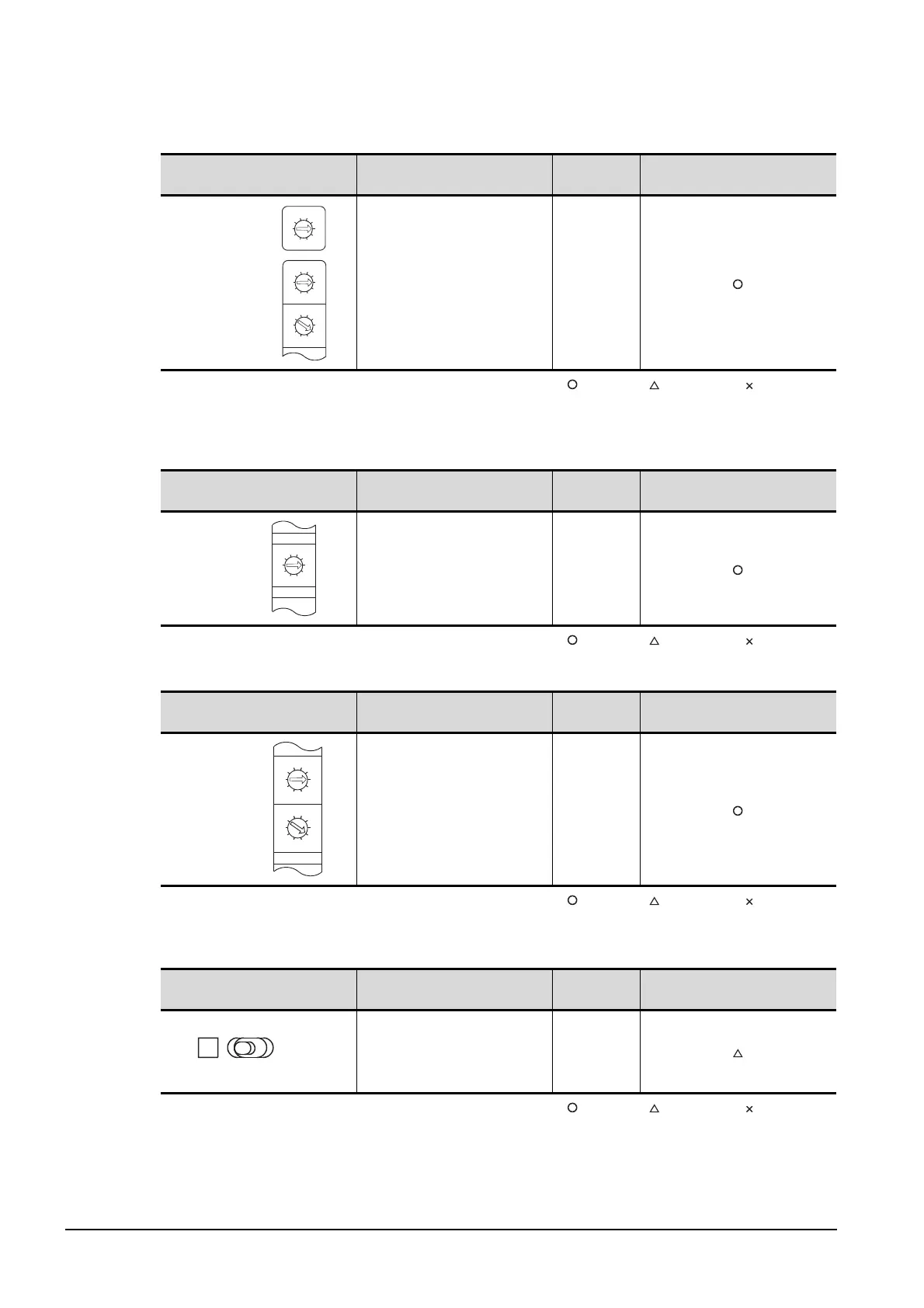

5.3 PLC Side Setting
5.3.3 Connecting to MELSECNET/10 network module (A Series)
(1) Network number setting switch
: Necessary : As necessary : Not necessary
*1 Specify the same network No. as that of the GOT.
*2 Do not specify a number between 240 and 255.
(2) Group number setting switch
: Necessary : As necessary : Not necessary
(3) Station number setting switch
: Necessary : As necessary : Not necessary
*3 Set to not duplicate with the station No. of the GOT.
(4) LED indication select switch
: Necessary : As necessary : Not necessary
Network number setting switch Description Setting
Setting necessity at GOT
connection
Network No. setting
(Network No.1)
*1 *2
1
Group number setting switch
Description
Setting
Setting necessity at GOT
connection
Group No. setting
(No group setting)
0 (fixed)
Station number setting switch
Description
Setting
Setting necessity at GOT
connection
Station No. setting
(Station number 1)
*3
1
LED indication select switch
Description
Setting
Setting necessity at GOT
connection
LED indication select L (F.L.)
3
2
0
5
9
4
8
7
6
1
3
2
0
5
9
4
8
7
6
1
3
2
0
5
9
4
8
7
6
1
NETWORK NO.
X100
X10
X1
3
2
0
5
9
4
8
7
6
1
GROUP.NO.
3
2
0
5
9
4
8
7
6
1
GROUP.NO.
3
2
0
5
9
4
8
7
6
1
3
2
0
5
9
4
8
7
6
1
STATION.NO.
X10
X1
LR
DISPLAY
(F.L) (R.L.)
