6.3 PLC Side Setting
6.3.3 Connecting to CC-Link module (A Series)
6 - 33
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION
6.3.3 Connecting to CC-Link module (A Series)
This section describes the settings of the GOT and CC-Link module (A Series) in the case of system
configuration shown as .
CC-Link module (A Series)
For details of the CC-Link module (A Series), refer to the following manual.
Control & Communication Link System Master/Local Module Type
AJ61BT11/A1SJ61BT11 User's Manual

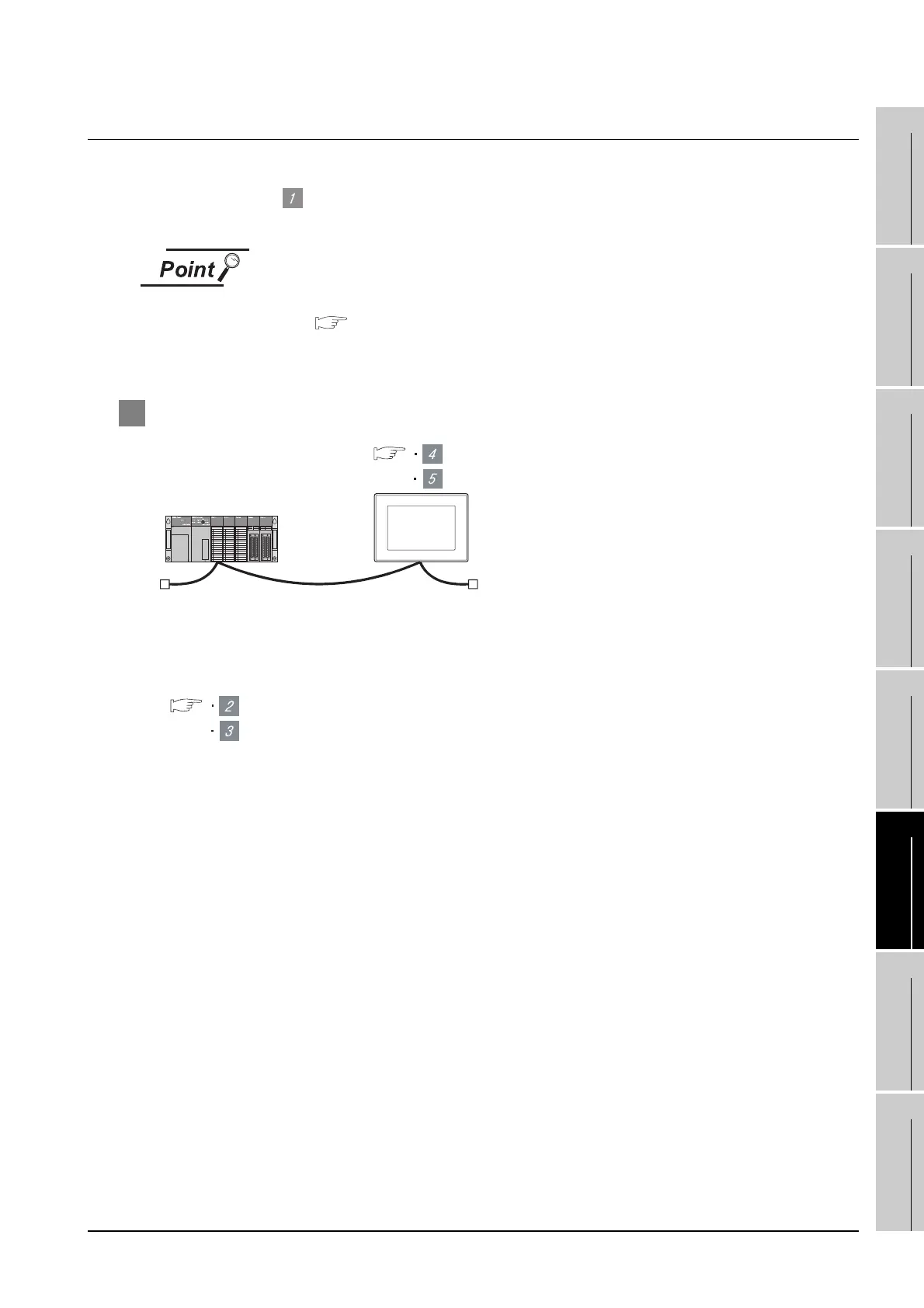

1 System configuration
*1 The CC-Link module is mounted on the base unit slot 0.
The Start I/O No. of the CC-Link module is set to "0"
*1
<CC-Link module> (Use the default value for settings other than the following.)
Station type
Station No.
Mode setting
A
ll connect count
Transmission speed
Module mode
Sequence program
Switch settings of CC-Link module (A Series)
[Communication Settings] of GT Designer2
Setting of the CC-Link communication unit
<GOT> (Use the default value for settings other than the following.)
Station type
Station No.
Number of station occupied
Transmission
speed
: Master sration
: 1
: Remote net mode
: Station No.0
: Intelligent mode
: 156kbps
: Intelligent device station
: Station No.1
: Exclusive station 1
: 156kbps
