7 - 18

7.3 PLC Side Settings

This section describes the settings of the GOT and peripheral connection module in the case of the system

configuration shown as .

(1) Peripheral connection module

For details of the peripheral connection module, refer to the following manual.

Peripheral Connection Module Type AJ65BT-G4-S3 User's Manual (detail

volume)

(2) CC-Link module (Q Series)

For details of the CC-Link module (Q Series), refer to the following manual.

CC-Link System Master/Local Module User's Manual QJ61BT11N

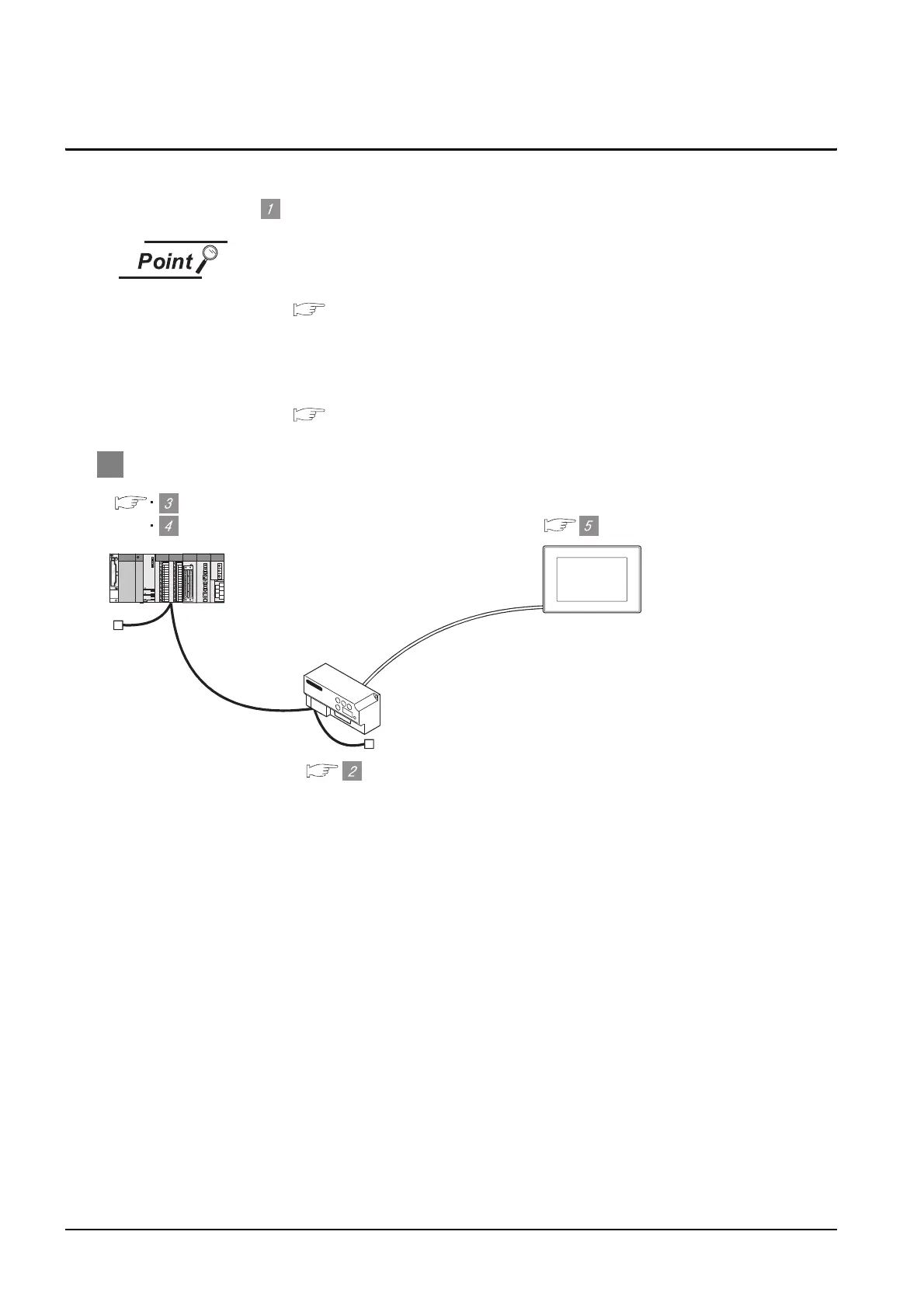

1 System configuration

*1 The CC-Link module is mounted on the base unit slot 0.

The Start I/O No. of the CC-Link module is set to "0"

Switch settings of CC-Link module (Q Series)

[Network parameter] of GX Developer

<CC-Link module>

Station type

Station No.

Mode

All connect count

Transmission speed

<AJ65BT-G4-S3>

Station type

Station No.

Number of stations occupied

Transmission speed

Switch setting of peripheral connection module

[Communication settings] of GT Designer 2

<GOT>

Transmisston speed: 9600bps

: Master station

: Station No. 0

: Remote net (Ver.1 mode)

: 1

: Intelligent device station

: Station No. 1

: Exclusive station 1

: 156kbps
