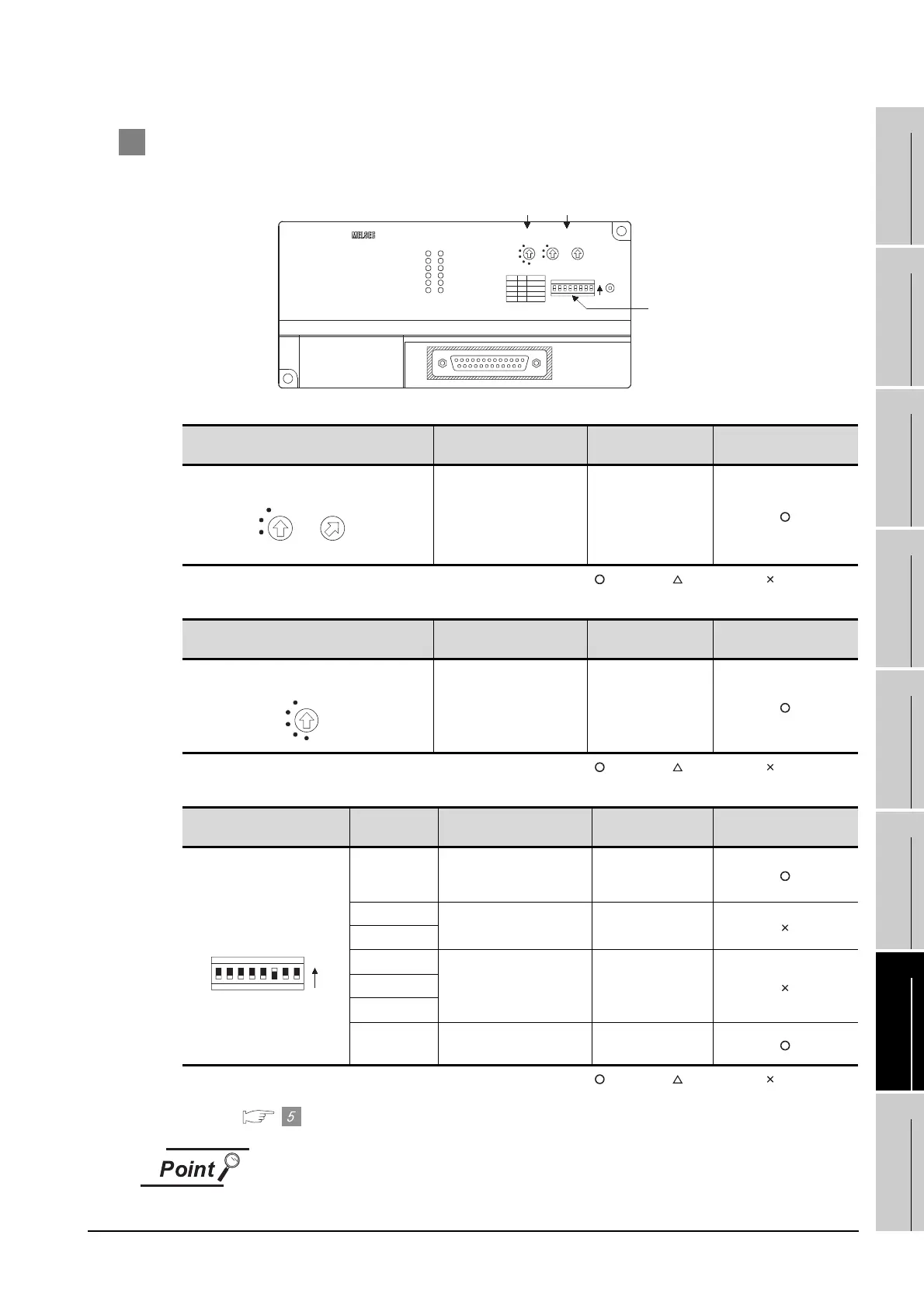

2 Switch setting of peripheral connection module
Set the station number setting switch, data link transmission speed setting switch, and operation setting
DIP switch.
(1) Station number setting switch
: Necessary : As necessary : Not necessary
(2) Data link transmission speed setting switch
: Necessary : As necessary : Not necessary
(3) Operation setting DIP switch
: Necessary : As necessary : Not necessary
*1 The peripheral connection module operates with the baud rate set in the GOT.
[Communication settings] of GT Designer2
Operation mode of peripheral connection module
Be sure to set the "Q mode" as an operation mode of the peripheral connection
module.
Station number setting switch Description Setting
Setting necessity at GOT
connection
AJ65BT-G4-S3 station
number setting
(Station No.)
1
Data link transmission speed setting switch Description Setting
Setting necessity at GOT
connection
Data link transmission
speed setting
(156kbps)
0
Operation setting DIP switch Setting switch Description Setting
Setting necessity at GOT
connection
SW1, SW6 Operation mode (Q mode)
SW1 = OFF
SW6 = ON
(fixed)
SW2
Peripheral transmission
speed
*1
OFF (fixed)
SW3
SW4
Not used OFF (fixed)SW5
SW7
SW8
Test mod e
(Online mode)
OFF (fixed)
