7.3 PLC Side Settings

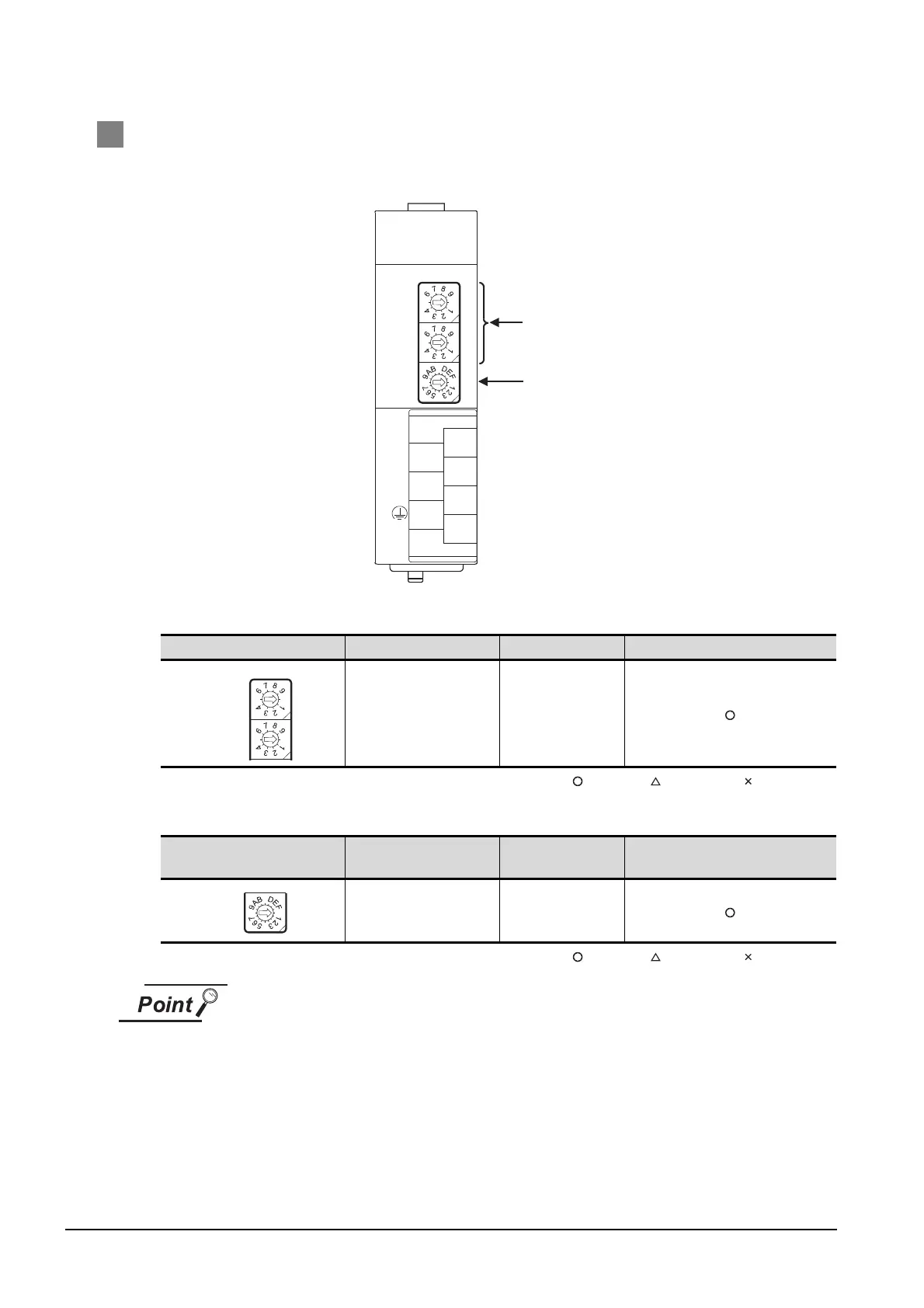

3 Switch setting of CC-Link module (Q series)
Set the station number setting switch, transmission speed / mode setting switch.
(1) Station number setting switch
: Necessary : As necessary : Not necessary
(2) Transmission rate/mode setting switch
: Necessary : As necessary : Not necessary
When the switch setting has been changed
Turn the PLC CPU OFF then ON again, or reset the PLC CPU.
Station number setting switch Description Setting Setting necessity at GOT connection
Station number setting
(master station)
0 (fixed)
Transmission rate/mode
setting switch
Description Setting Setting necessity at GOT connection
Transmission rate/mode
setting
(Online: 156kbps)
0
(1)
(2)
QJ61BT11, QJ61BT11N
0
5
0
5
0
8
1
2
7
6
5
4
3
STATION
NO.
X10
X1
MODE
QJ61BT11N
RUN
ERR.
SD
MST
L RUN
L ERR.
RD
S MST
NC
DA
DB
NC
SLD
DG
(FG)
C
4
0
5
0
5
STATION
NO.
X10
X1
0
8
MODE
C
4
