7.3 PLC Side Settings
7 - 21
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION

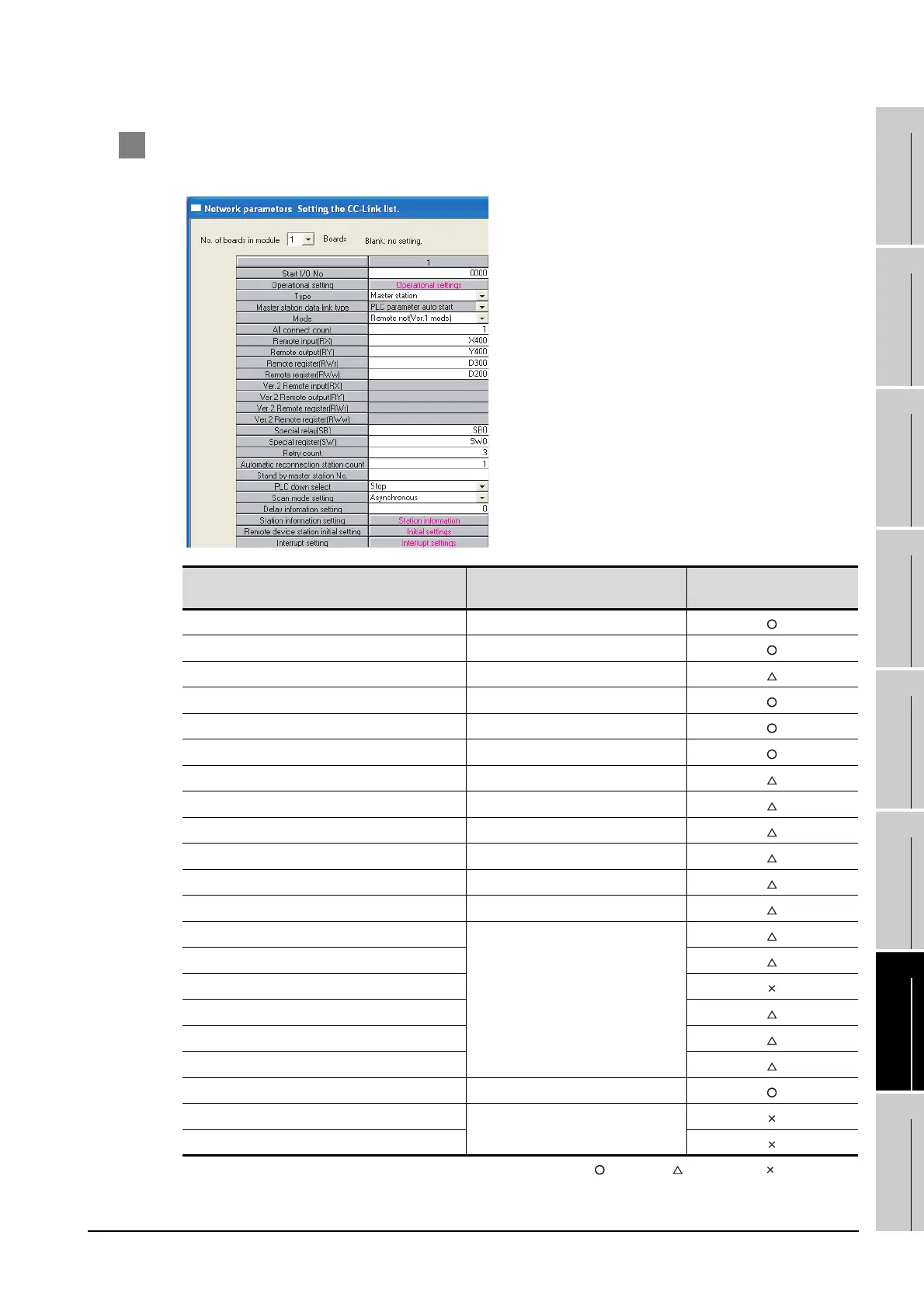

4 [Network parameter] of GX Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
Item Setting
Setting necessity at GOT
connection
No. of boards in module 1
Start I/O No. 0000H
Operational setting (Use default value.)
Type Master station (fixed)
Mode Remote net (Ver.1 mode)
All connect count 1
Remote input (RX) X400
Remote output (RY) Y400
Remote register (RWr) D300
Remote register (RWw) D200
Special relay (SB) SB0
Special register (SW) SW0
Retry count
(Use default value.)
Automatic reconnection station count
Stand by master station No.
PLC down select
Scan mode setting
Delay information setting
Station information setting Refer to (2).
Remote device station initial setting
(Use default value.)
Interrupt setting
